Transceiver Module (TM)

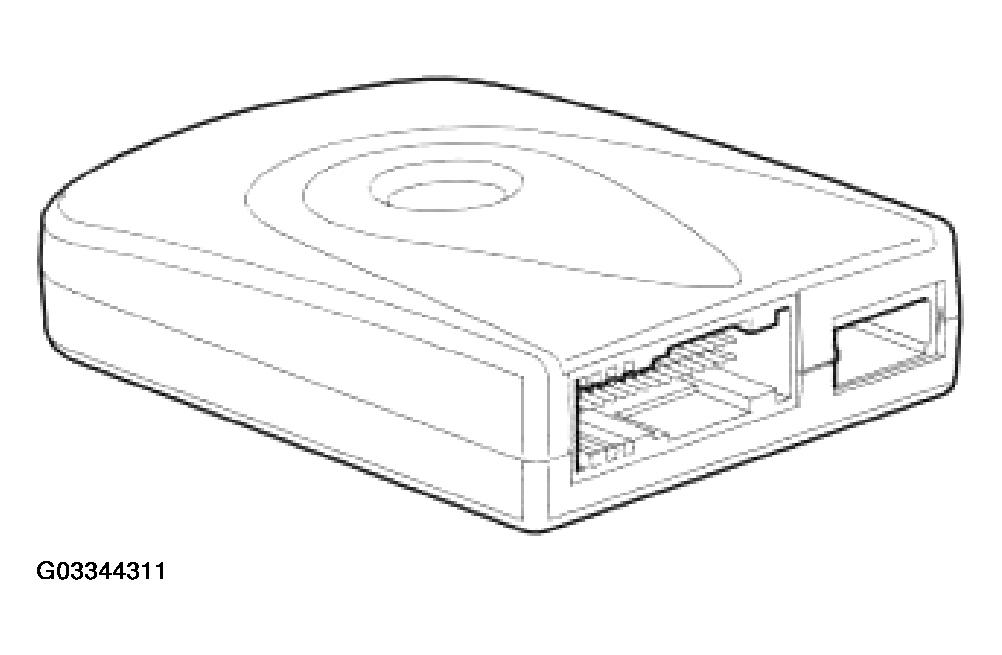

Fig 1: Identifying Transceiver Module (TM)

Courtesy of LAND ROVER NORTH AMERICA, INC.

The TM is located in the rear LH side of the luggage compartment above the navigation computer (where fitted).

The TM is connected to the MOST ring and, as the interface between the telephone and the IHU, processes all instructions and audio from and to the phone. The TM contains voice recognition hardware and software and is used for control of the voice activation system on vehicles not fitted with a navigation computer.
