18.30.17 Sensor - throttle position (TP): Remove

Disconnect battery earth lead.
Remove acoustic cover.

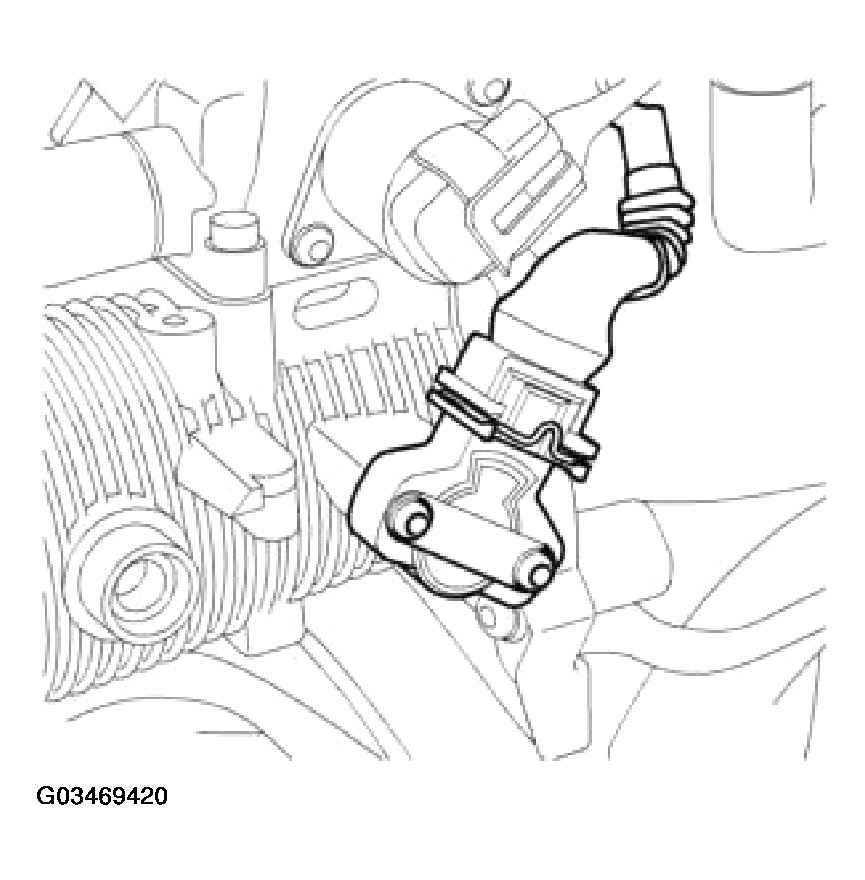

Fig 1: Disconnecting Multiplug From TP Sensor
Courtesy of LAND ROVER NORTH AMERICA, INC.
Disconnect multiplug from TP sensor.

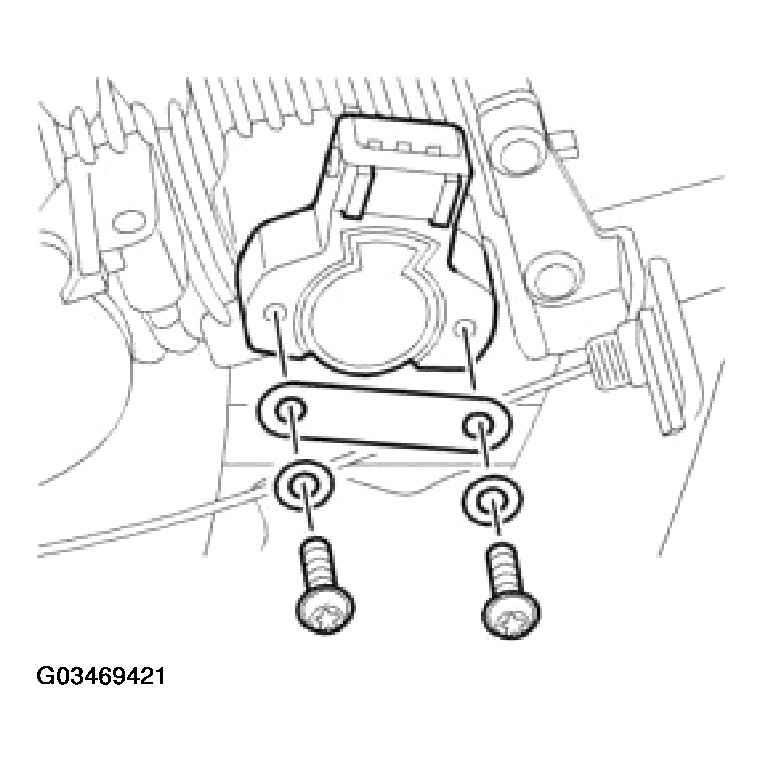

Fig 2: Removing 2 Torx Screws And Wave Washers Securing TP Sensor To Inlet Manifold
Courtesy of LAND ROVER NORTH AMERICA, INC.
Remove and discard 2 Torx screws and wave washers securing TP sensor to inlet manifold.
Remove TP sensor specification plate.

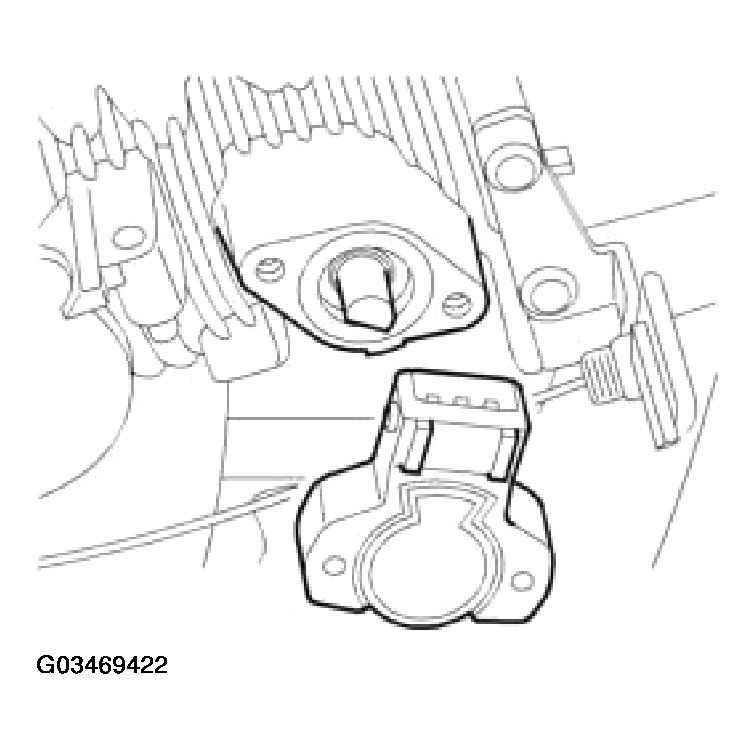

Fig 3: Removing TP Sensor From Throttle Spindle
Courtesy of LAND ROVER NORTH AMERICA, INC.
Pull TP sensor from throttle spindle.
CAUTION: Do not twist or apply leverage to throttle position sensor.
