18.30.10 Sensor - engine coolant temperature (ECT): Remove

  1. Disconnect battery earth lead.
  2. Remove thermostat.

    Refer to PRESSURE RELIEF THERMOSTAT (PRT) .

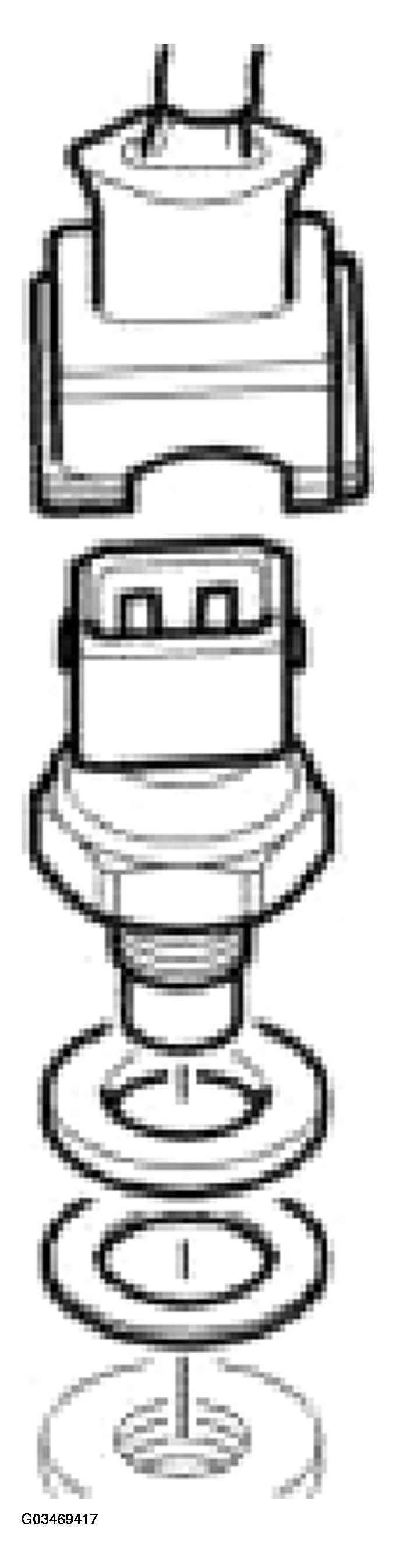

    Fig 1: Disconnecting Multiplug From Coolant Temperature Sensor
    G03469417Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Disconnect multiplug from coolant temperature sensor.
  4. Remove coolant temperature sensor and discard sealing washer.
  5. Remove coolant temperature sensor from cylinder block.
  6. Remove steel shim and sealing washer from temperature sensor, discard sealing washer.
