88.20.01 Instrument Panel - From 04MY: Remove

  1. Remove instrument cowl.

    See 88.20.02 COWL - INSTRUMENT FROM 04MY  .

  2. Remove 2 screws securing instrument pack to fascia, release pack from lower mounting lugs and move aside.

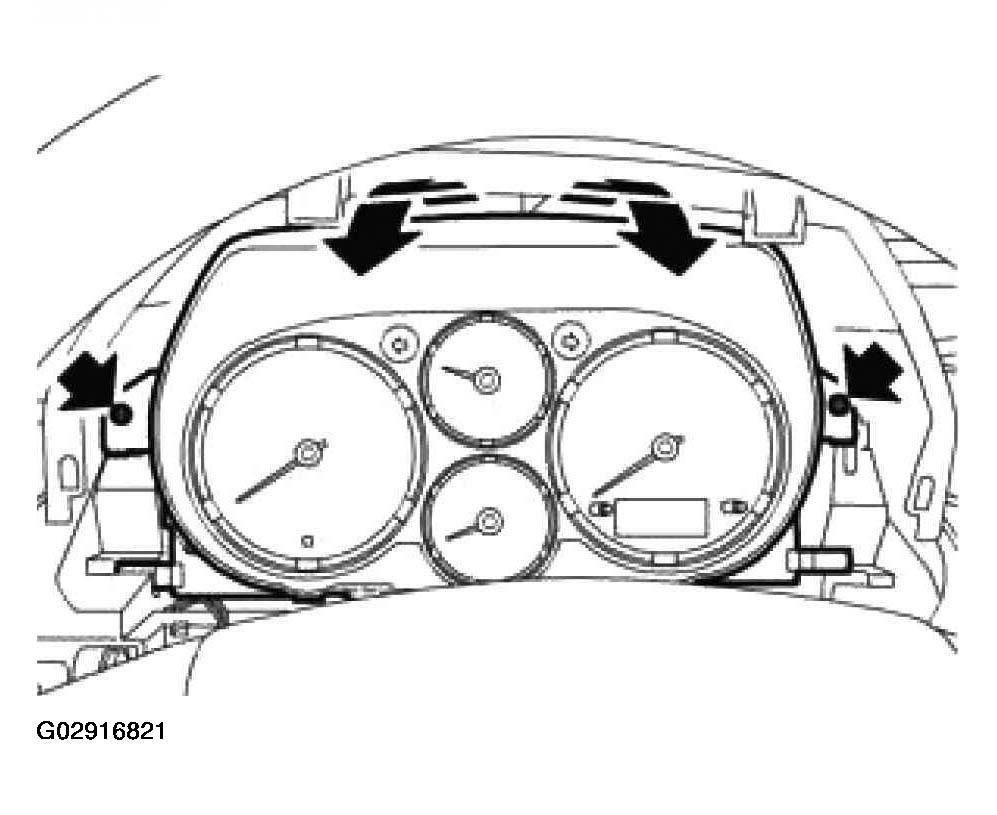

    Fig 1: Removing Instrument Pack From Lower Mounting Lugs
    G02916821Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Disconnect 3 multiplugs from instrument pack.

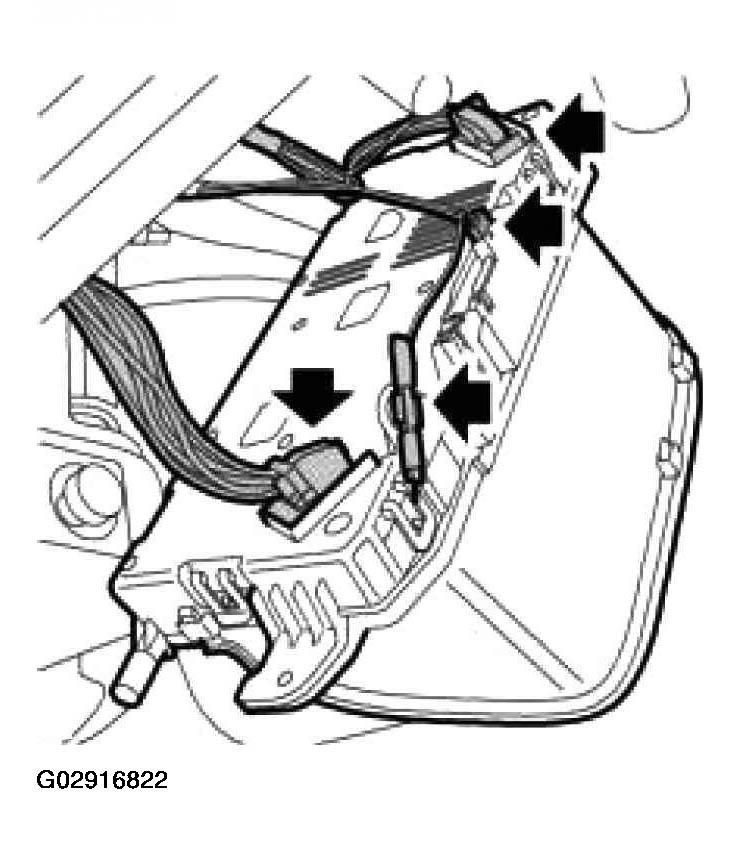

    Fig 2: Disconnecting Multiplugs From Instrument Pack
    G02916822Courtesy of LAND ROVER NORTH AMERICA, INC.
  4. Release clip, securing aerial receiver wire from underside of instrument pack retaining bracket.
  5. Remove instrument pack.
