Inhibitor Switch

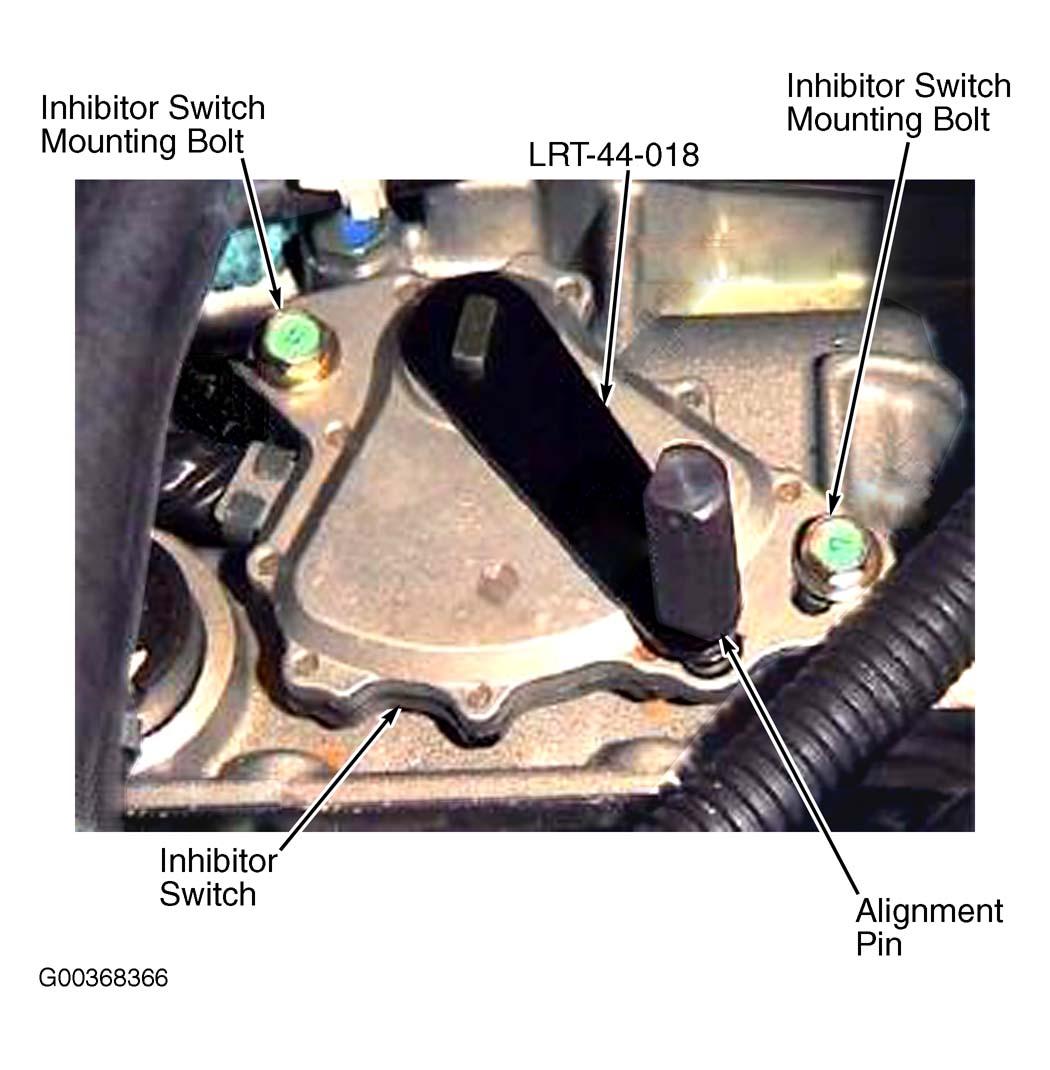

- Set gear selector lever to Neutral position. Loosen 2 bolts securing inhibitor switch to gearbox casing. See Fig 1
.
- Fit alignment tool LRT-44-018 to selector lever on gearbox, rotate inhibitor switch sufficient to insert tool alignment pin through tool lever into inhibitor switch. See Fig 1
.
- Tighten inhibitor switch bolts to 3 Nm (2.2 lbf.ft). Remove alignment tool LRT-44-018.
- Check that the engine will start in Park and Neutral positions and is inhibited when drive positions are selected.
