70.12.10 Disc - front: Remove

  1. Raise front of vehicle.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Remove road wheel(s).

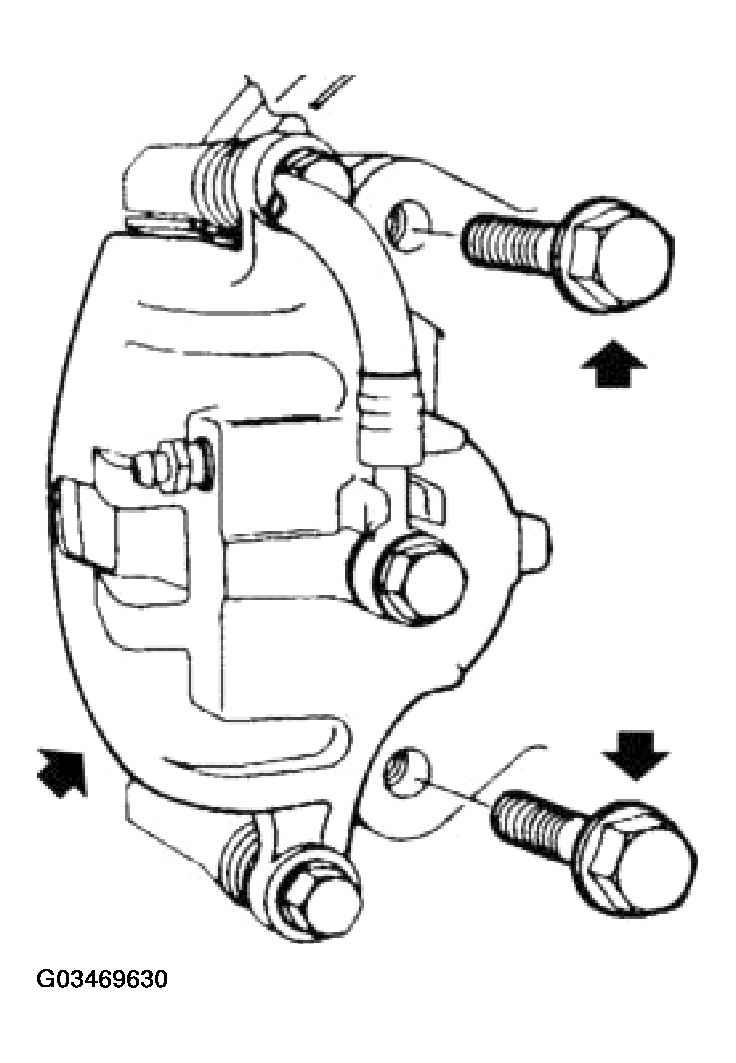

    Fig 1: Removing 2 Bolts Securing Brake Caliper To Swivel Hub
    G03469630Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Remove 2 bolts securing brake caliper to swivel hub.
  4. Release caliper from disc and tie aside.
    CAUTION: Do not allow caliper to hang on brake hose.

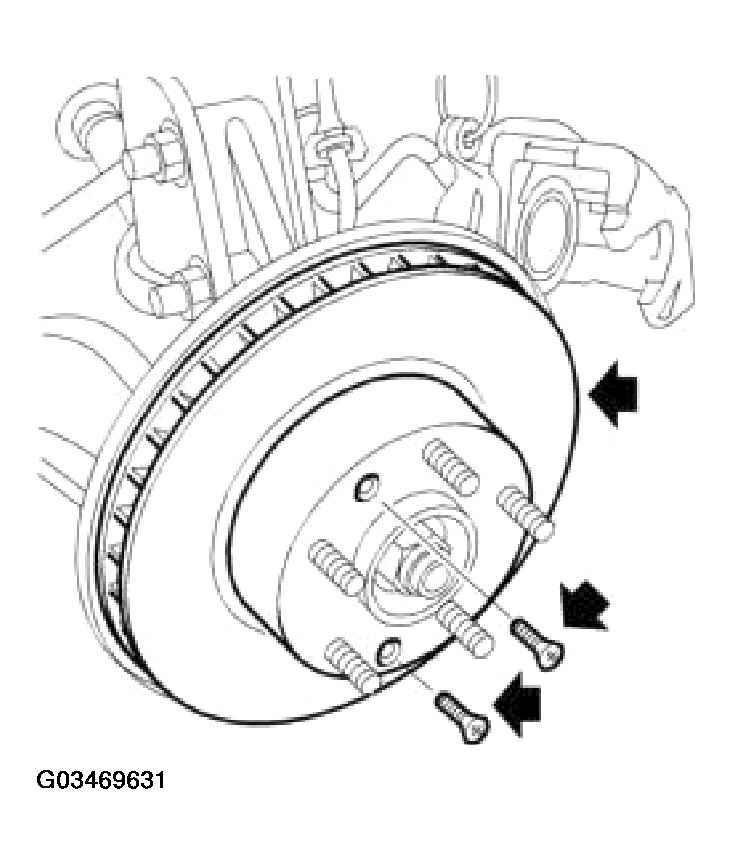

    Fig 2: Removing 2 Screws Securing Brake Disc To Drive Flange
    G03469631Courtesy of LAND ROVER NORTH AMERICA, INC.
  5. Remove 2 screws securing brake disc to drive flange.
  6. Remove brake disc from drive flange.
