Lifting And Towing: Jacking: Notes

The following instructions must be carried out before raising the vehicle off the ground:

Use a solid level surface.
Apply parking brake.
Select 1st. gear in main gearbox and ensure HDC is not selected.

CAUTION: To avoid damage to under body components of the vehicle, adhere to the following jacking procedures:
DO NOT POSITION JACKS OR AXLE STANDS UNDER THE FOLLOWING COMPONENTS:

Bumpers
Brake Or Fuel Lines
Exhaust Pipe
Suspension Components
Steering Rack And Linkages
Fuel Tank
Engine Sump
Gearbox
IRD Unit

CAUTION: Jack or support vehicle only on approved jacking points as detailed in the following illustration:

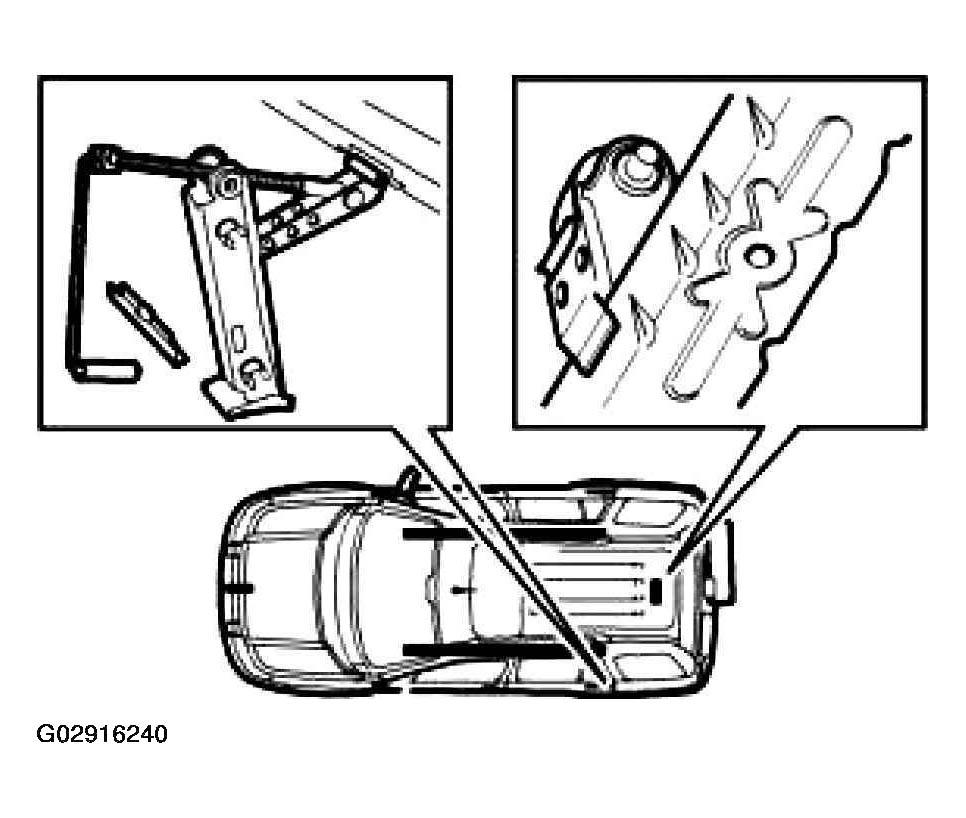

Fig 1: Identifying Front & Side Jacking Points

Courtesy of LAND ROVER NORTH AMERICA, INC.

Front (hydraulic jack) and side (vehicle jack) jacking points

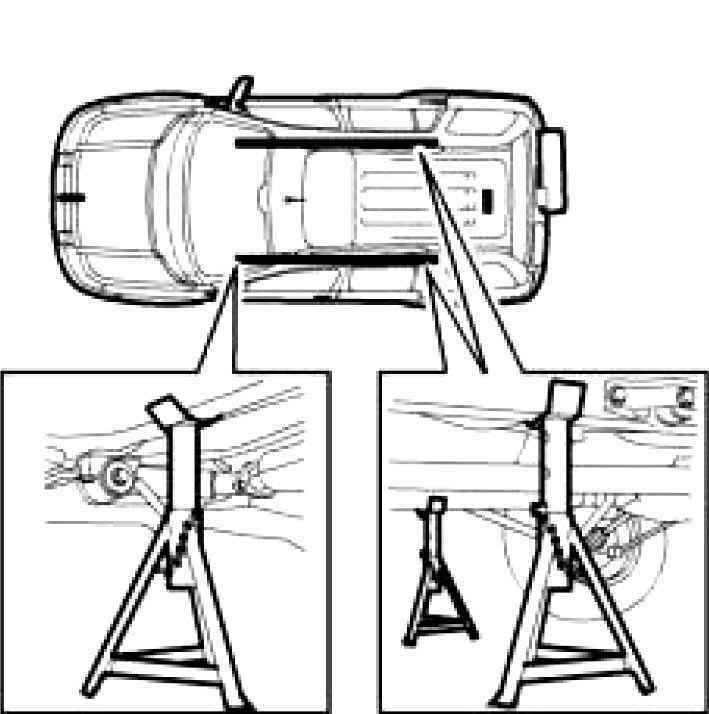

Fig 2: Identifying Safety Stand Positions

Courtesy of LAND ROVER NORTH AMERICA, INC.

Safety stand positions under longitudinal members

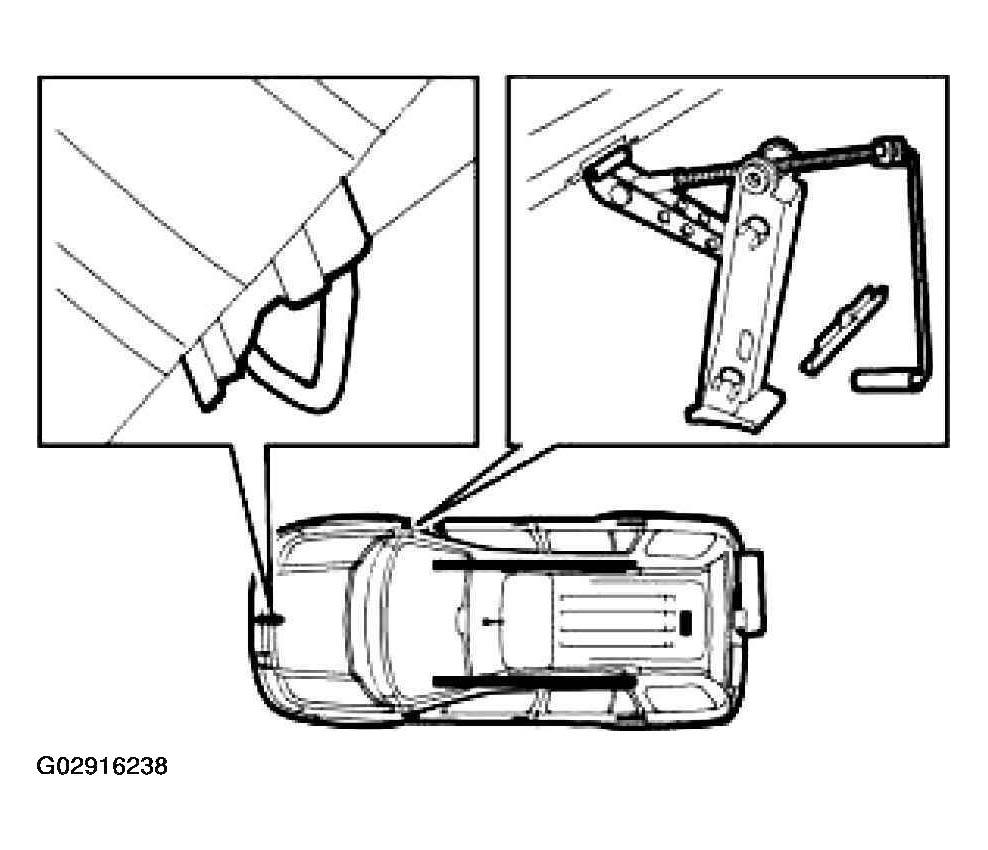

Fig 3: Identifying Rear & Side Jacking Points

Courtesy of LAND ROVER NORTH AMERICA, INC.

Rear (hydraulic jack) and side (vehicle jack) jacking points
