Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

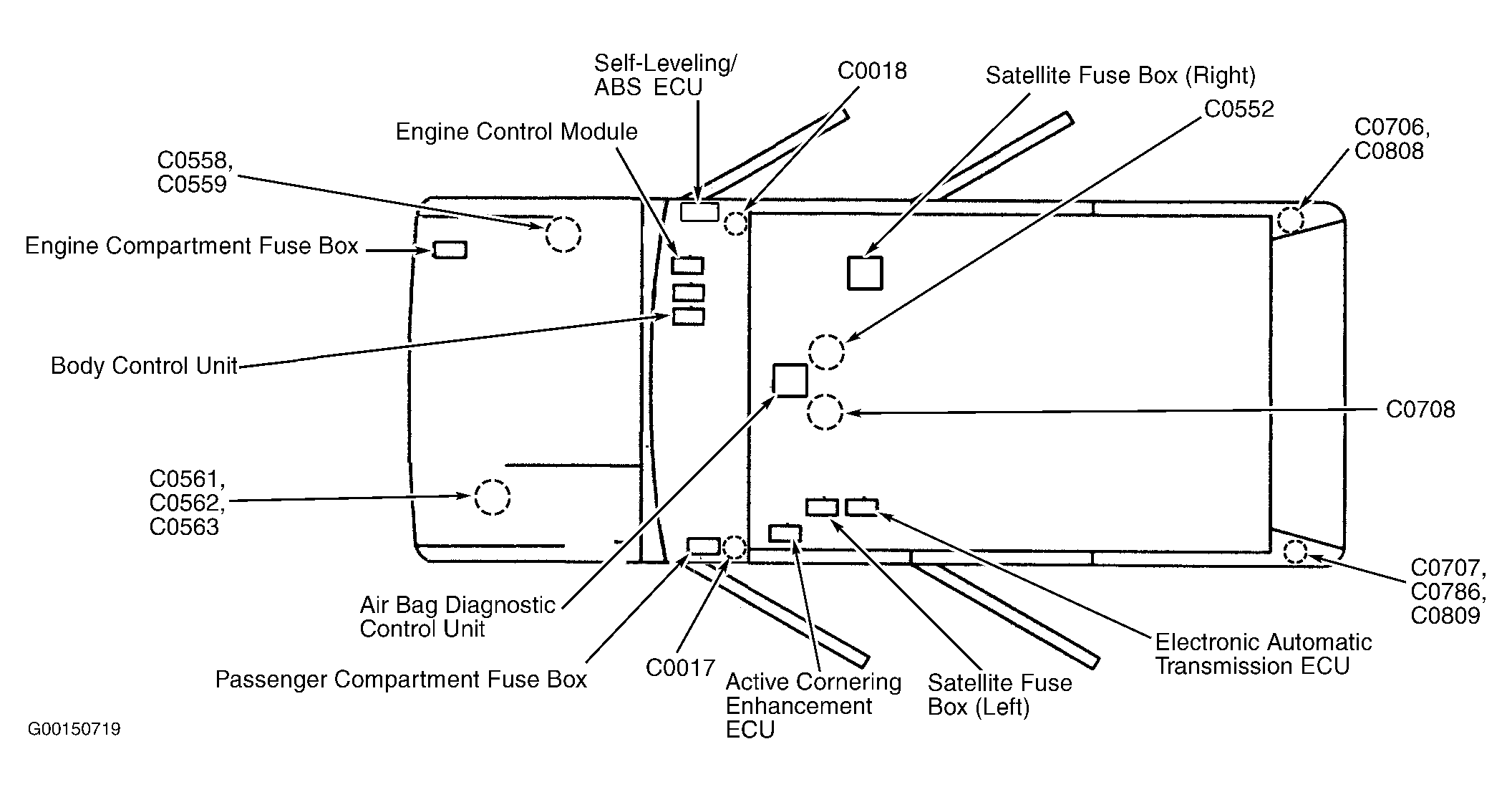

Fig 1: Vehicle

G00150719

Courtesy of LAND ROVER NORTH AMERICA, INC.
