Shift Solenoids Monitoring

For shift solenoids monitoring information, see Fig 1.

NOTE: This monitor covers information for DTC P0753 and P0758.

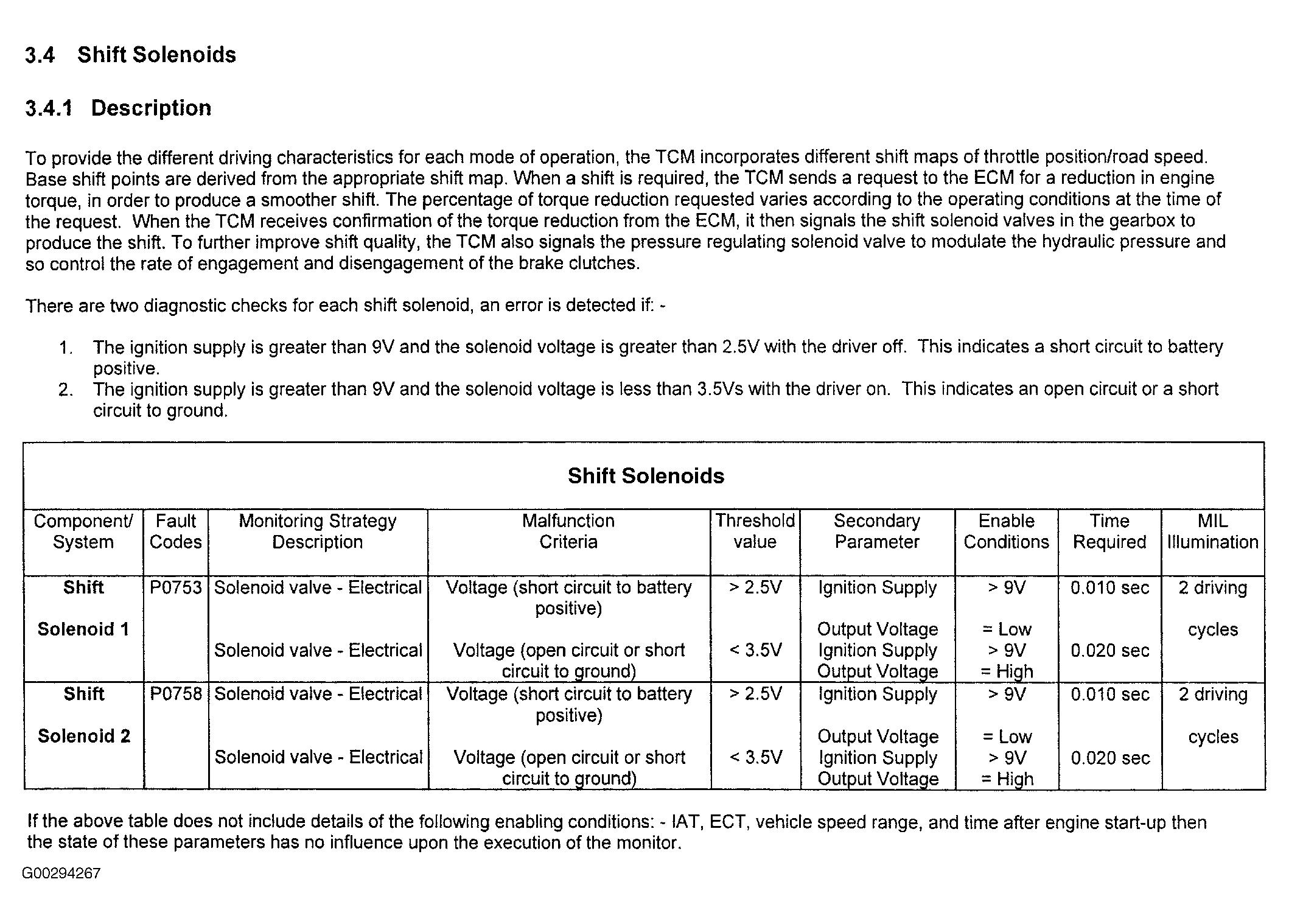

Fig 1: Shift Solenoid Monitoring

G00294267

Courtesy of LAND ROVER NORTH AMERICA, INC.
