Pressure Regulator Solenoid Monitoring

For pressure regulator solenoid monitoring information, see Fig 1.

NOTE: This monitor covers information for DTC P0748.

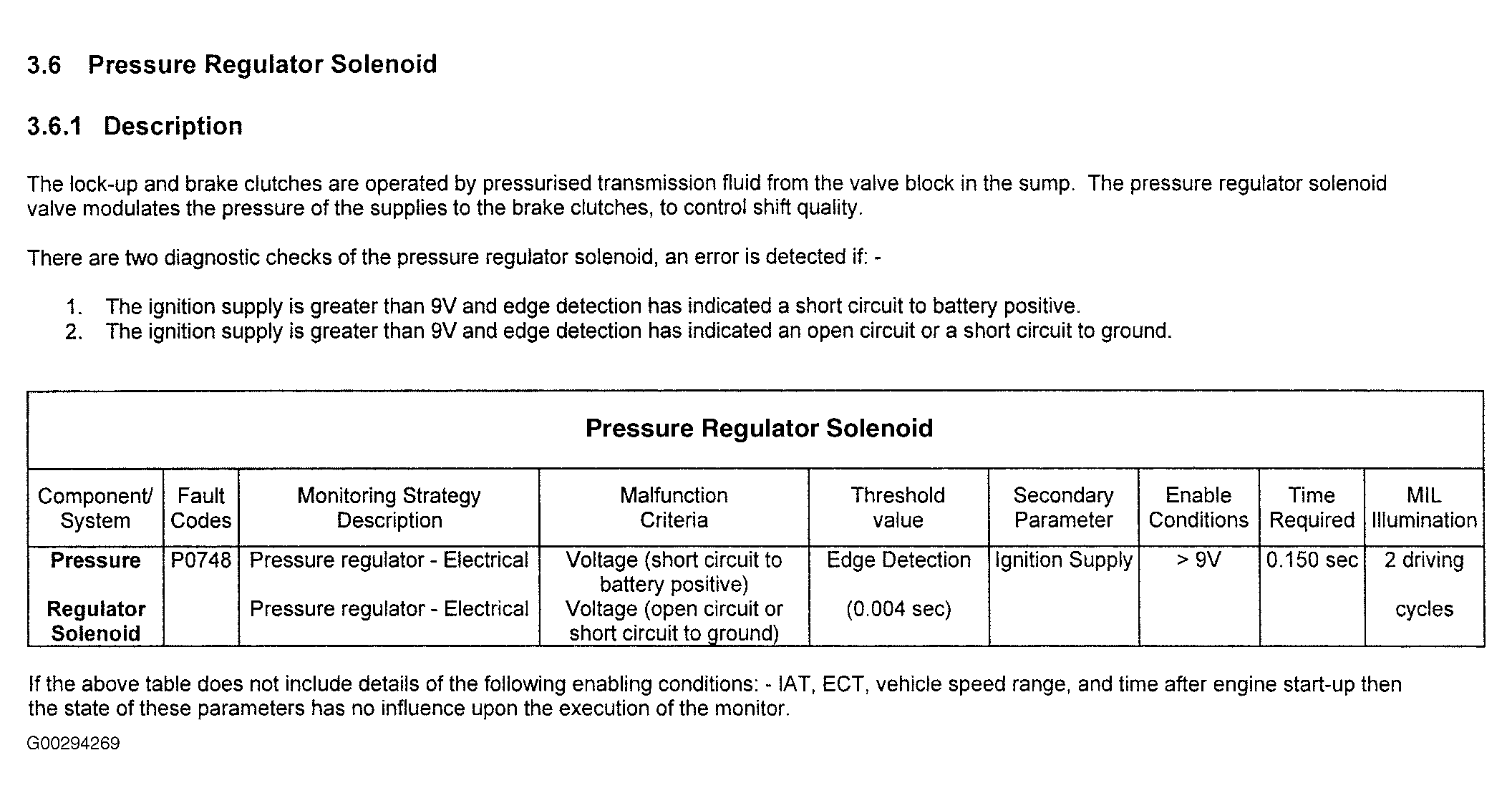

Fig 1: Pressure Regulator Solenoid Monitoring
G00294269Courtesy of LAND ROVER NORTH AMERICA, INC.
