Center Console: Installation

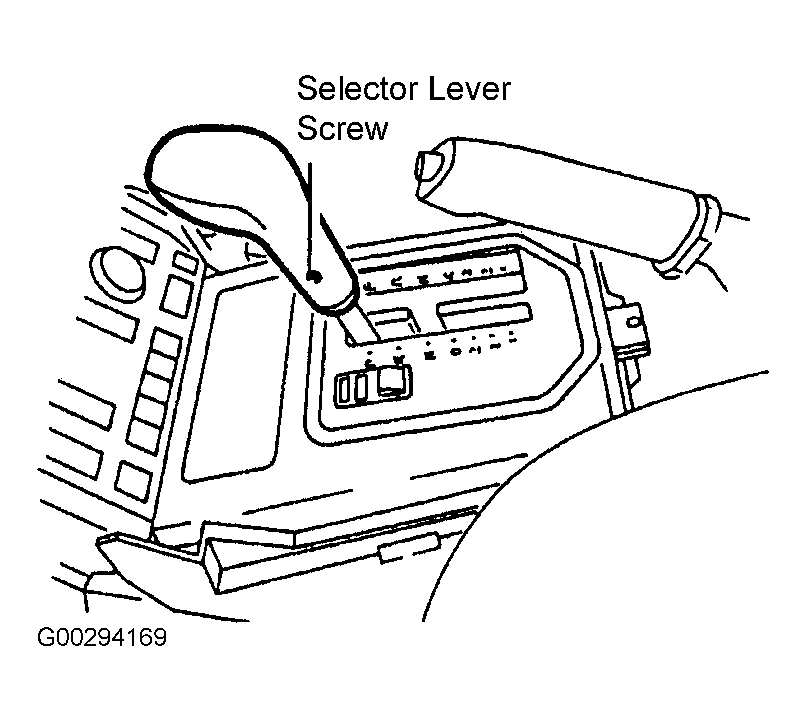

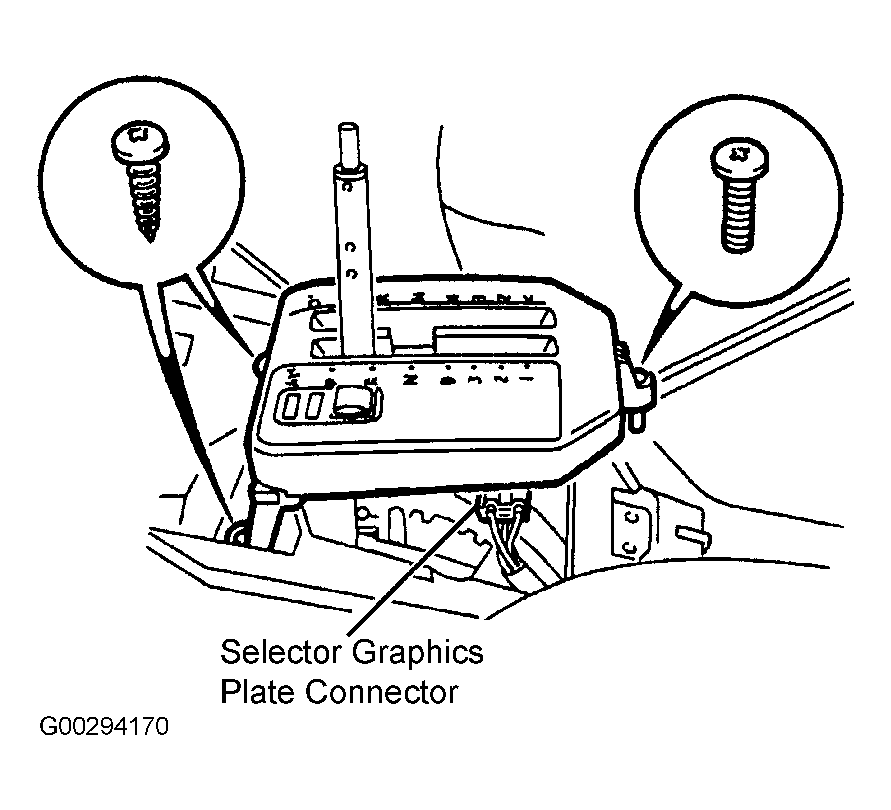

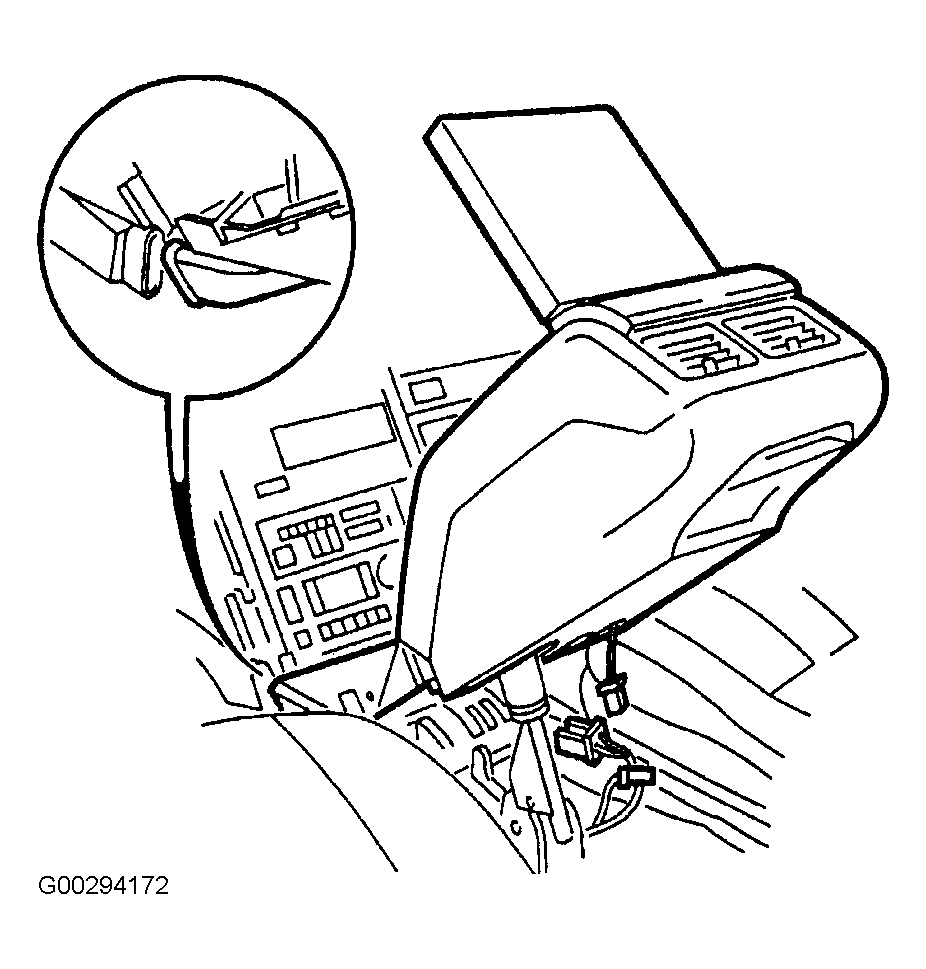

  1. Install center console, ensuring that ducts to rear fresh air vents are correctly engaged. See Figure . Install nuts securing center console to floor. Position graphics plate over gear selector lever and connect connector. Align graphics plate to console and secure with screws. See Figure . Install gear selector lever and secure with screws. See Figure .

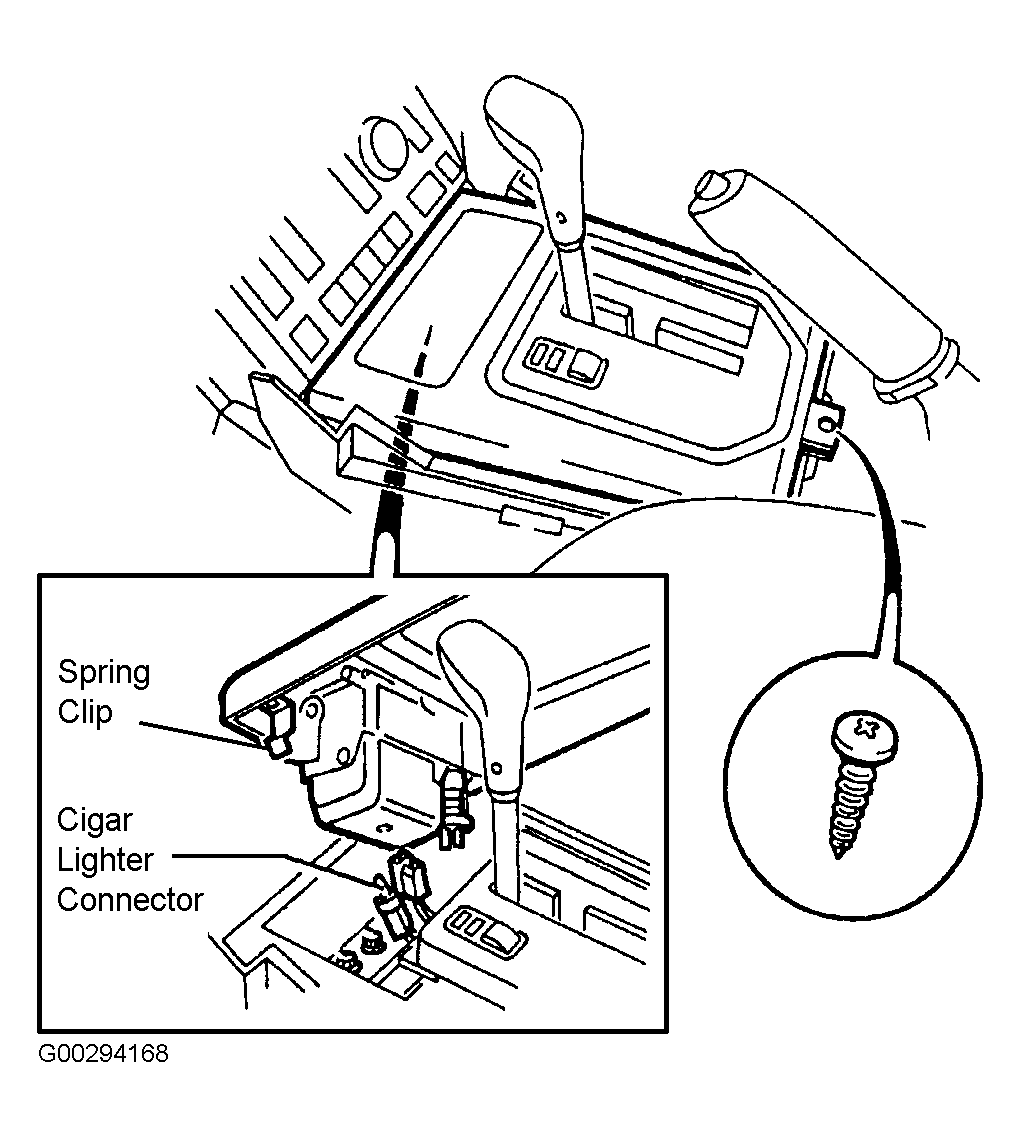

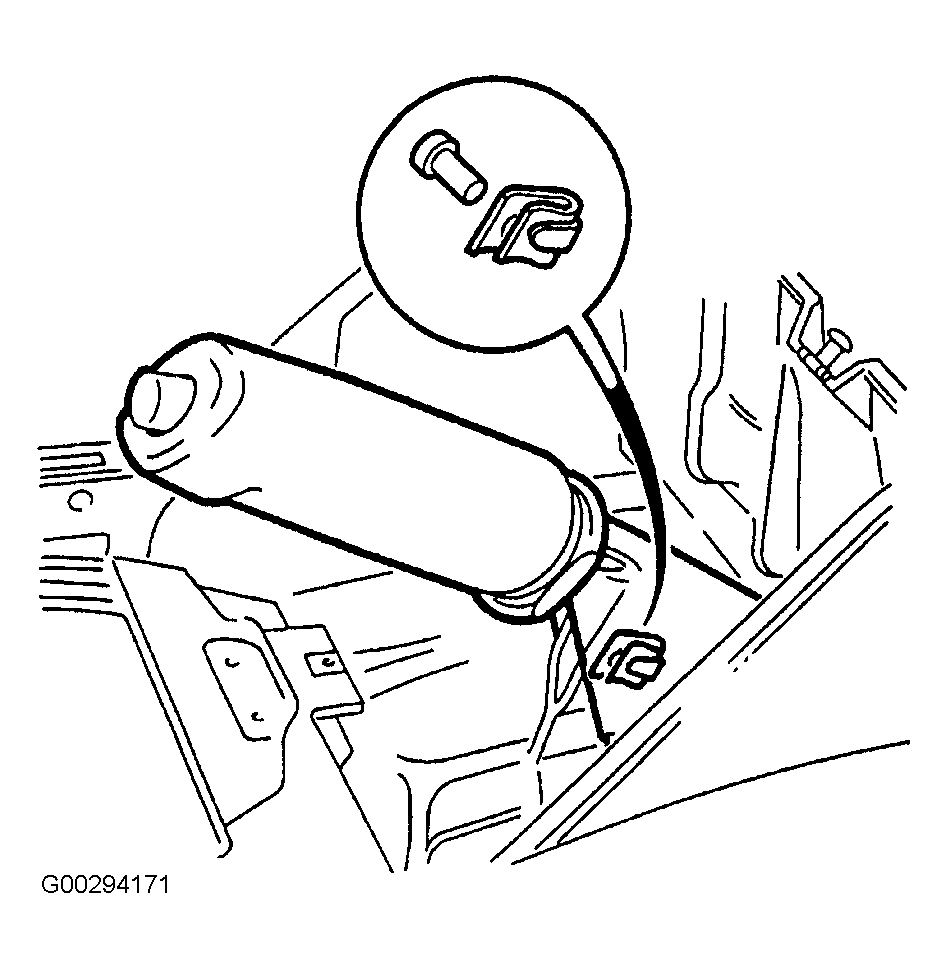

  2. Lower park brake lever, install clevis terminal and secure terminal with clip. See Figure . Position gear selector lever applique, connect cigar lighter connector and insert illumination bulb in holder. See Figure . Engage applique clips to console. Secure applique with screw.

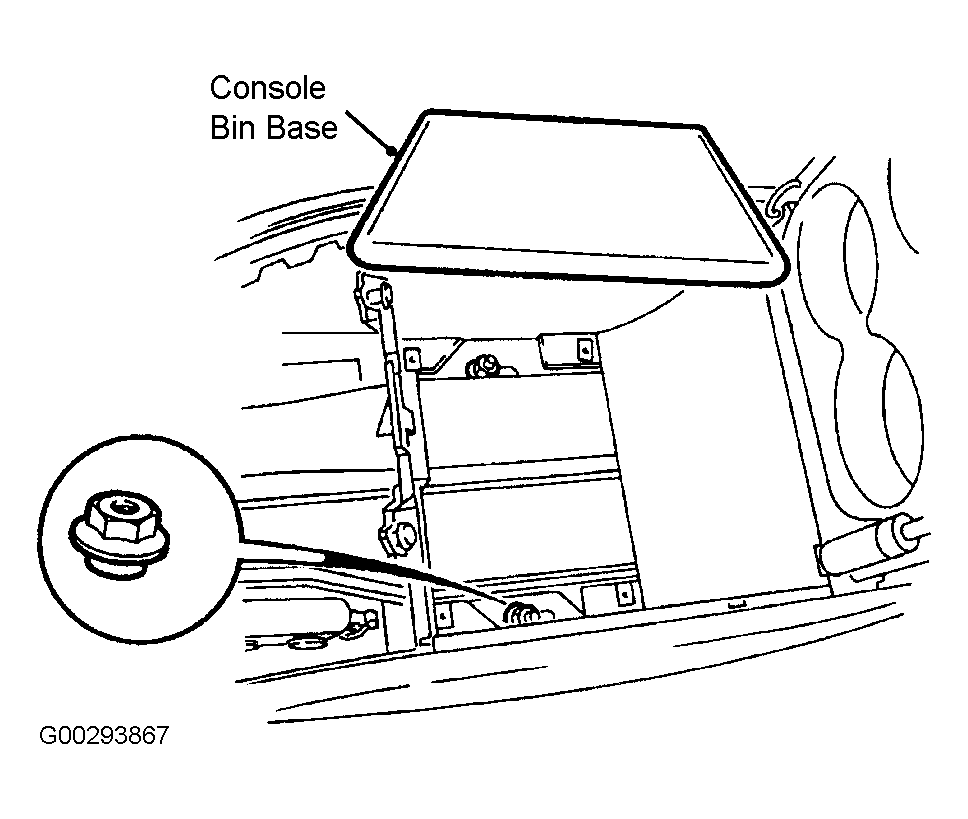

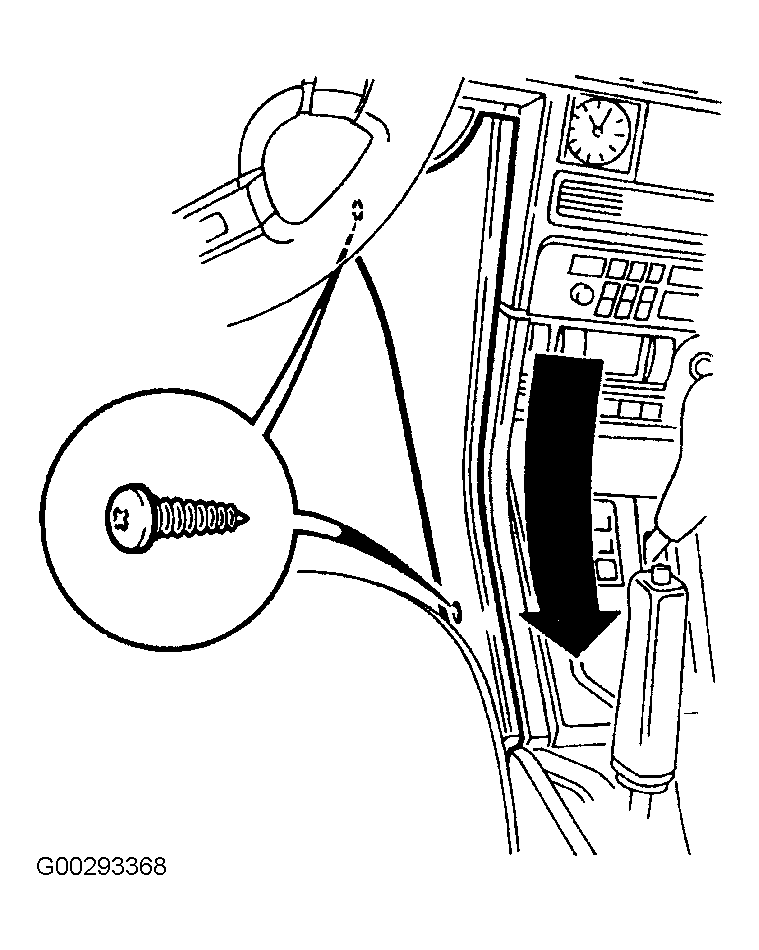

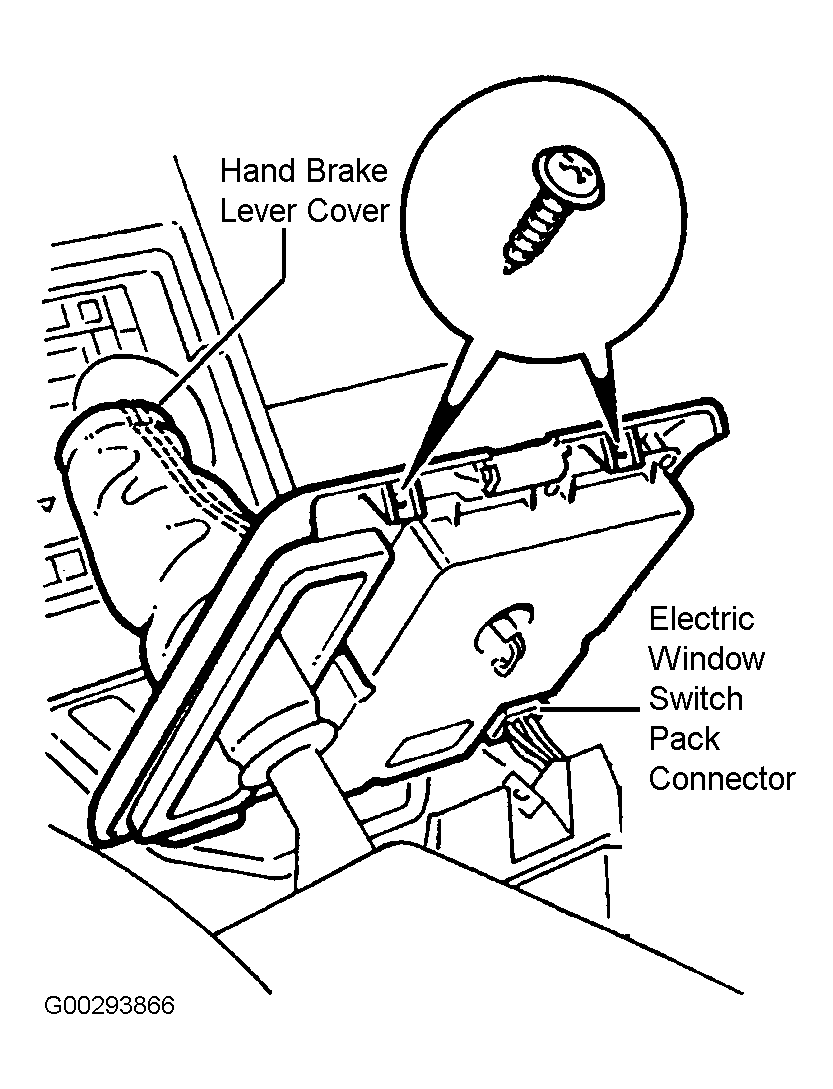

  3. Position console side panels. See Figure . Firmly push forward to engage sprag clips into fascia switch pack. Install and tighten screws. Return front seats to original positions. Install base to console bin, tighten with screws. See Figure . Connect rear footwell lamp connector. Install electric window switch pack. See Figure .
