Throttle Cable

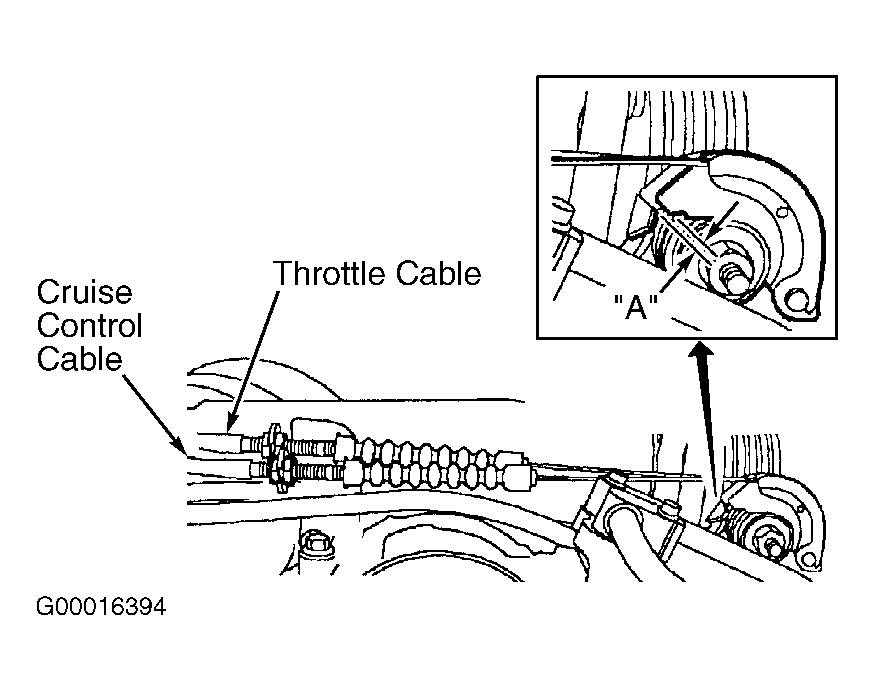

Loosen outer cable lock nuts. See Figure . Adjust rear lock nut until it is in contract with back of abutment bracket, and throttle lever is in contact with inner driven lever. Ensure driven lever remains in contract with throttle stop screw (throttle closed). Tighten cable front nut to lock cable to abutment bracket.
