Shift Cable

  1. Raise and support vehicle. Loosen shift cable trunnion lock nut. See Fig 1 . Remove cotter pin and washer from trunnion. Separate trunnion from transmission shift lever. From inside of vehicle, place transmission shift lever in Park.
  2. Working underneath vehicle, set transmission shift lever in full forward position. Adjust cable until shift cable trunnion slides in transmission shift lever easily. Install washer and NEW cotter pin. Tighten lock nut.

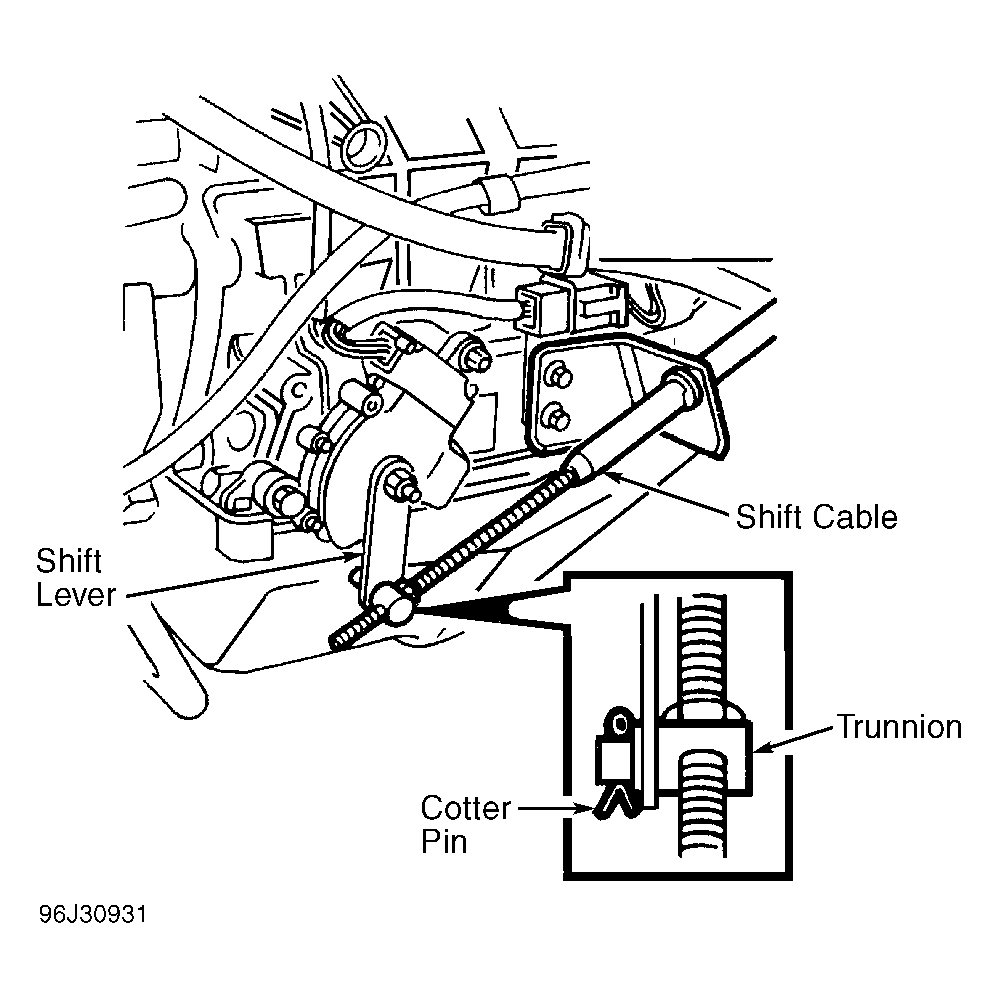

Fig 1: Adjusting Shift Cable
G96J30931Courtesy of LAND ROVER NORTH AMERICA, INC.
