| Auxiliary Drive Belt Cover Bolt |
13 (18) |
| Auxiliary Drive Belt Idler Pulley |
37 (50) |
| Auxiliary Drive Belt Tensioner Bolt |
33 (45) |
| Camshaft Drive Gear Bolt |
37 (50) |
| Camshaft Position Sensor Multiplug Bracket Bolts |
16 (22) |
| Camshaft Thrust Plate Bolt |
18 (25) |
| Coolant Rail-To-Inlet Manifold Bolt |
16 (22) |
| Connecting Rod Bolts |
| Stage 1 |
15 (20) |
| Stage 2 |
Tighten An Additional 80° |
| Crankshaft Pulley Bolt |
200 (270) |
| Crossmember-To-Chassis |
33 (45) |
| Cylinder Head Bolts |
| Step 1 |
15 (20) |
| Step 2 |
Tighten An Additional 90° |
| Step 3 |
Tighten An Additional 90° |
| Drive Plate Clamp Ring Bolts Automatic Gear Box |
33 (45) |
| Drive Plate Assembly Bolts |
33 (45) |
| Drive Plate Hub Aligner-To-Crankshaft Allen Bolts-Unshimmed Hub Aligner |
58 (78) |
| Drive Plate Hub Aligner-To-Crankshaft Allen Bolts-Shimmed Hub Aligner |
63 (85) |
| Drive Shaft Flanges Nuts & Bolts |
35 (48) |
| Engine Mount Nuts |
33 (45) |
| Engine Rear Mounting-To-Gearbox Bolts |
33 (45) |
| Feed Hose-To-Power Assisted Steering Pump Union |
12 (16) |
| Flywheel-To-Crankshaft Bolts Manual Gearbox |
59 (80) |
| Flywheel Bolts |
58 (78) |
| Fuel Pipe-To-Fuel Rail Union |
12 (16) |
| Gearbox Cooler Pipes-To-Left Engine Mounting Bracket |
13 (18) |
| Gearbox Mounting-To-Crossmember Nuts & Bolts |
33 (45) |
| Generator Mounting Bracket |
30 (40) |
| Hub Aligner-To-Crankshaft Allen Screws Automatic Gearbox |
63 (85) |
| Knock Sensor-To-Cylinder Block |
12 (16) |
| Lifting Eye-To-Cylinder Head Bolts |
30 (40) |

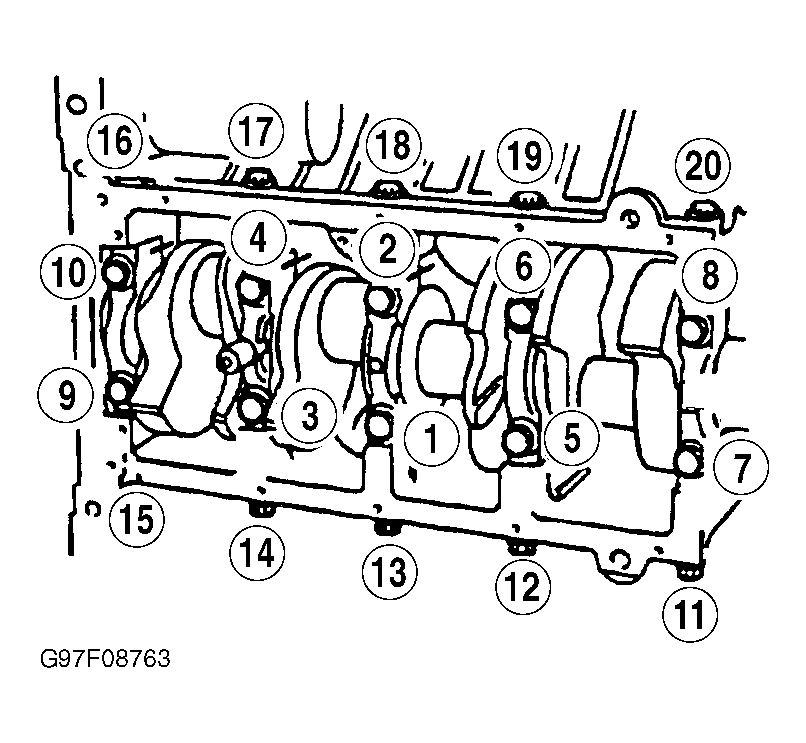

| Main Bearing Cap & Side Bolts |
10 (14) |
| Step 1 - All Main Bearing Cap & Side Bolts |
10 (14) |
| |
Step 2 |
| Bolts No. 1-8 |
54 (72) |
| Bolts No. 9-10 |
68 (92) |
| Side Bolts |
34 (45) |

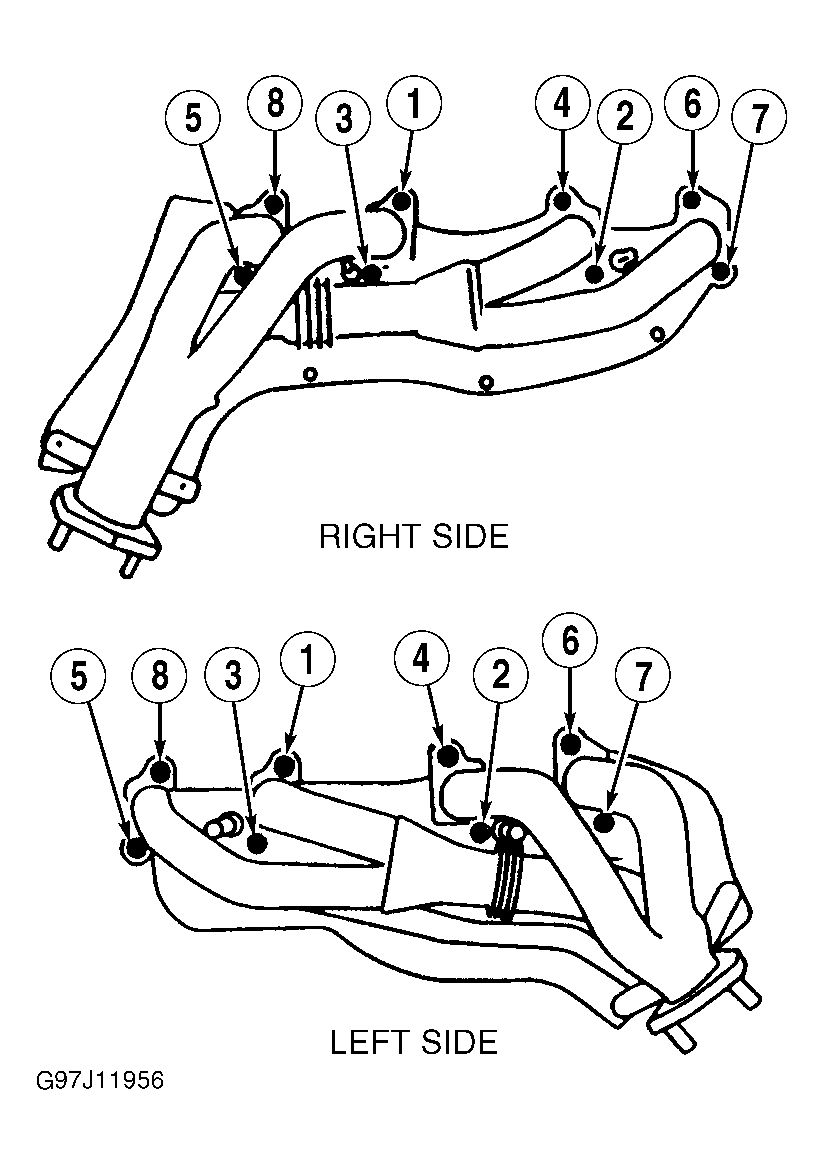

| Manifold Exhaust Bolts |
40 (55) |
| Manual Gear Lever Bolts |
18 (25) |
| Modified Starter Ring Gear |
63 (85) |
| Oil Cooler Pipes-To-Front Cover |
11 (15) |
| Oil Filter Head Adapter |
9 (13) |
| Oil Pick-Up Strainer-To-Main Bearing Cap Nut |
18 (25) |
| Oil Pick-Up Pipe Nut |
16 (22) |
| Oil Pressure Switch-To-Timing Cover |
11 (15) |
| Oil Pan-To-Bell Housing Bolts |
33 (45) |

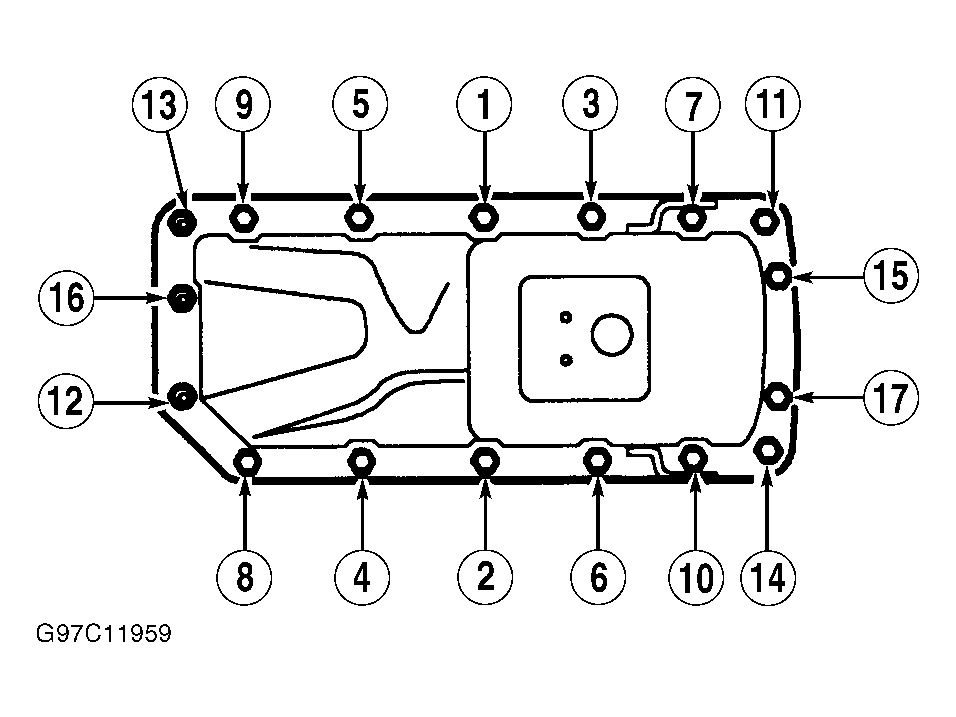

| Oil Pan-To-Cylinder Block Nuts/Bolts |
17 (23) |
| Oil Pan Drain Plug |
24 (32) |
| Pipes-To-Air Conditioning Condenser |
11 (15) |
| Pipes-To-Air Compressor Bolts |
17 (23) |
| Pipe-To-Engine Oil Cooler |
22 (30) |
| Pipes-To-Gearbox Oil Cooler |
22 (30) |
| Rocker Shaft-to Cylinder Head Bolt |
28 (38) |
| Secondary Air Adapters |
24 (33) |
| Spark Plugs |
15 (20) |

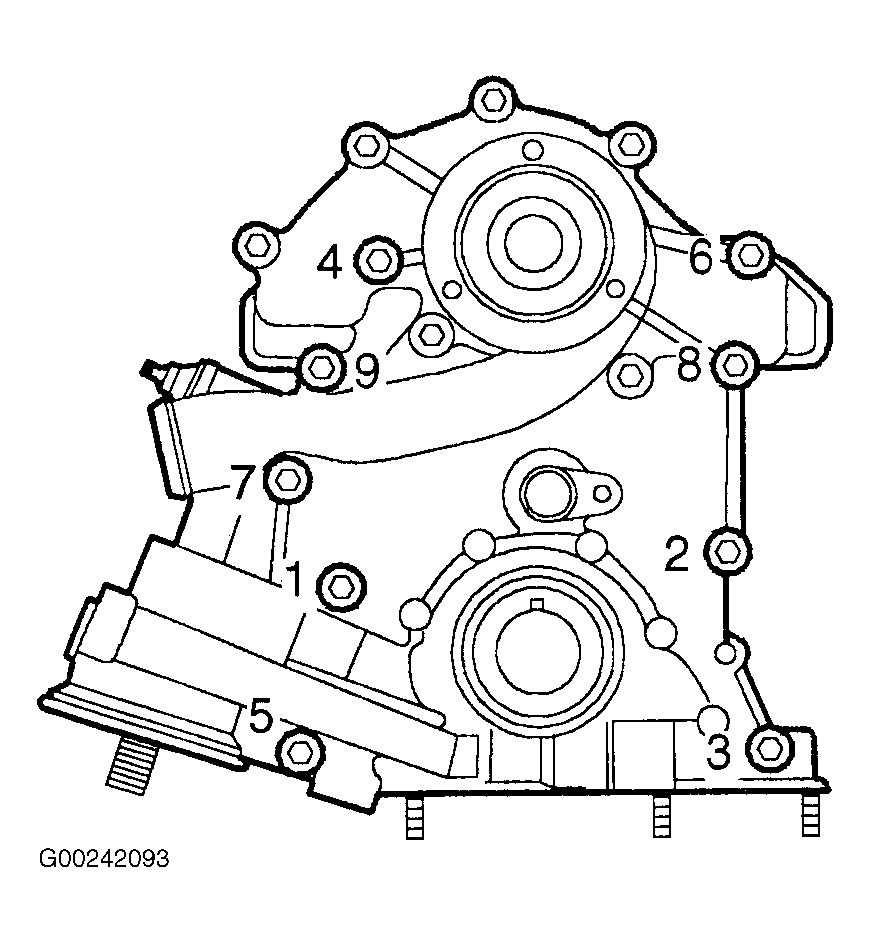

| Timing Cover Bolts |
16 (22) |
| Timing Cover/Coolant Pump-To-Cylinder Block Bolts |
16 (22) |
| Water Pump-To-Timing Cover Bolts |
16 (22) |
| Water Pump Pulley |
16 (22) |
| INCH Lbs. (N.m) |
| Camshaft Position Sensor-To-Timing Cover Bolt |
71 (8) |
| Crankshaft Position Sensor Bolt |
53 (6) |

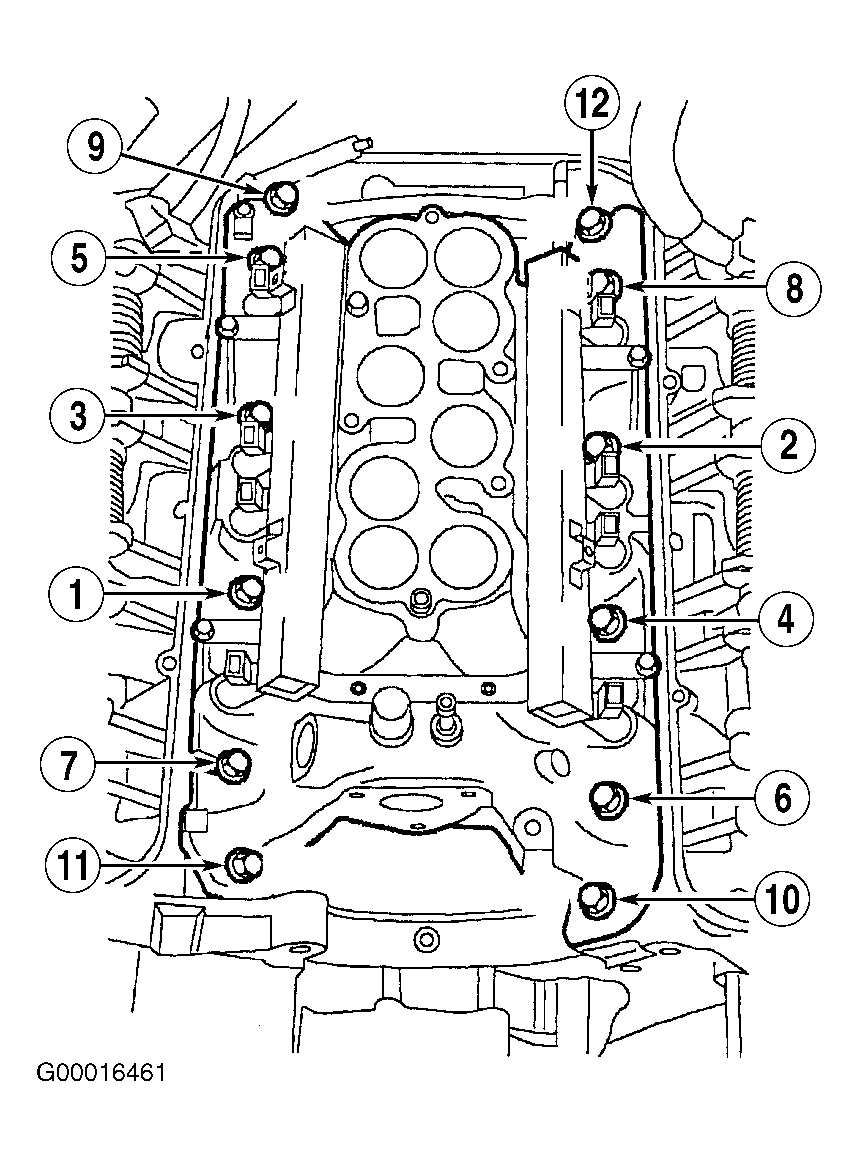

| Manifold Intake Bolts |
89 (10) |
| Manual Gearbox Harness Bracket Bolt |
53 (6) |
| Oil Pick-Up Pipe-To-Oil Pump Bolts |
89 (10) |
| Oil Pick-Up Strainer Bolts |
71 (8) |
| Oil Pump Cover Plate Screws |
35 (4) |
| Oil Pump Cover Plate Bolt |
71 (8) |
| Rocker Cover Bolts |
| Step 1 |
26 (3) |
| Step 2 |
62 (7) |
