Cable - Key Interlock: Removal

  1. Disconnect battery earth lead.
  2. Remove front console. See 76.25.01 CONSOLE - FRONT - UP TO 04MY .
  3. Loosen bolt securing cable clamp. See Fig 1.

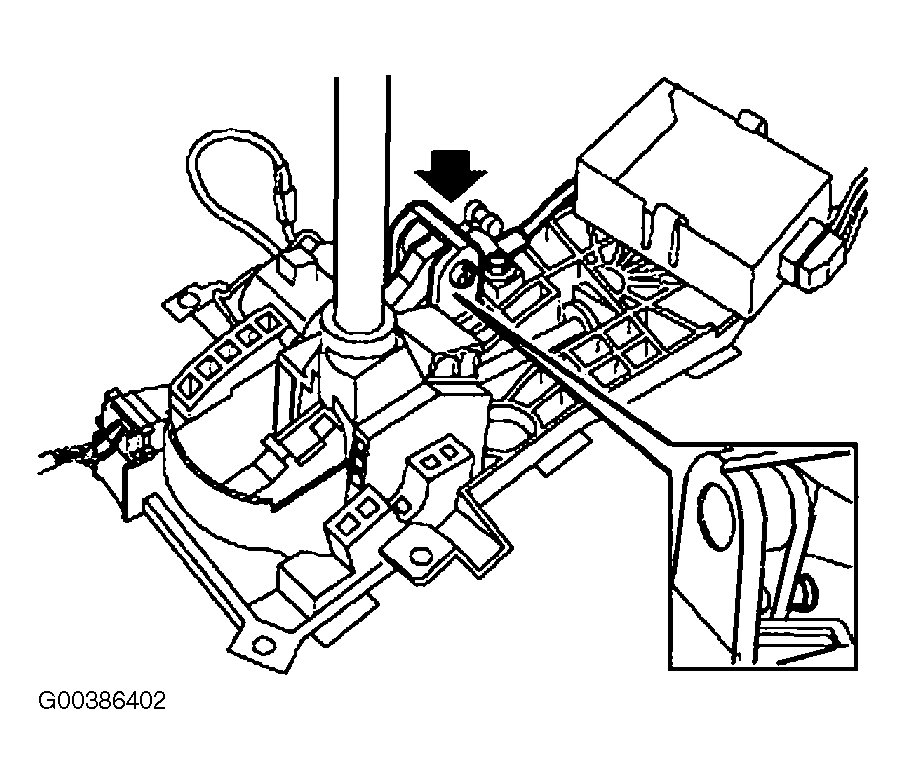

    4. Fig 1: Removing Cable Clamp Bolt
    G00386402Courtesy of LAND ROVER NORTH AMERICA, INC.
  4. Disconnect cable from interlock mechanism.
  5. Remove key from starter switch.
  6. Remove steering column nacelle. See NACELLE - COLUMN .
  7. Remove bolt securing steering column height adjuster lever and remove lever. See Fig 2.
    NOTE: Thread is left handed.

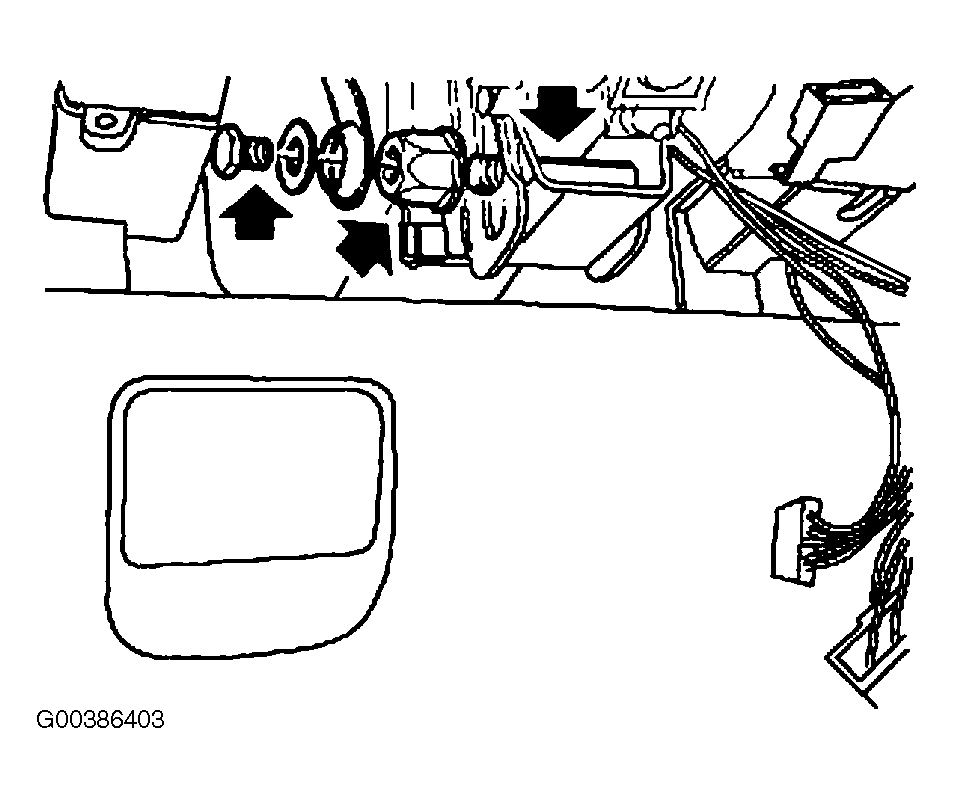

    8. Fig 2: Removing Steering Column Height Adjuster Lever
    G00386403Courtesy of LAND ROVER NORTH AMERICA, INC.
  8. Remove nut securing height adjuster clamp bolt and remove bolt.
  9. Collect plastic stop.

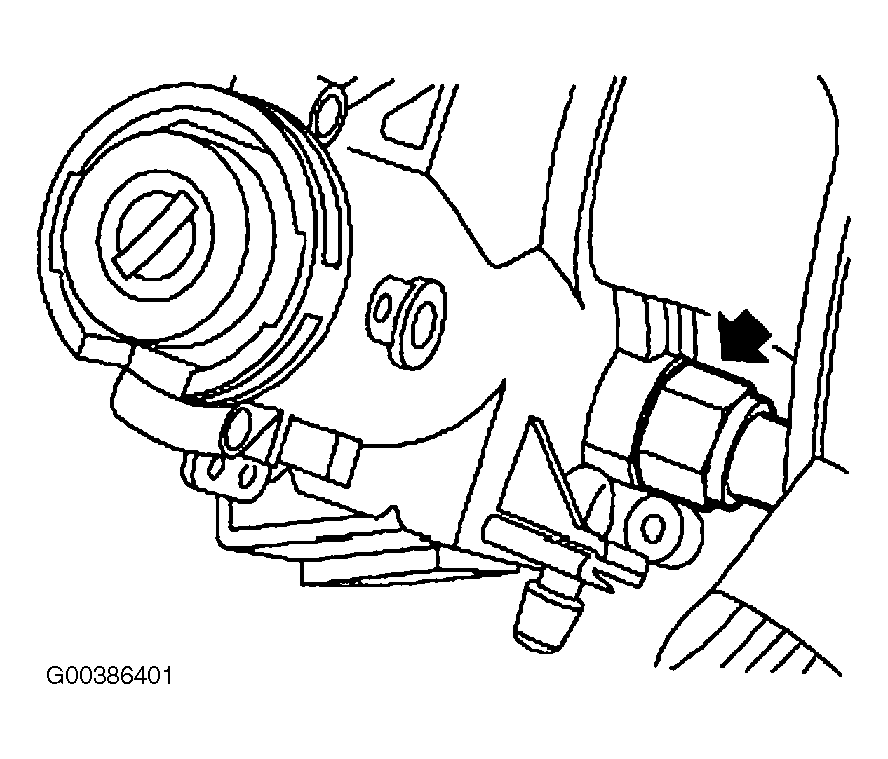

  10. Loosen union and disconnect cable from column lock. See Figure.
  11. Release cable from 2 retaining clips. See Fig 3.

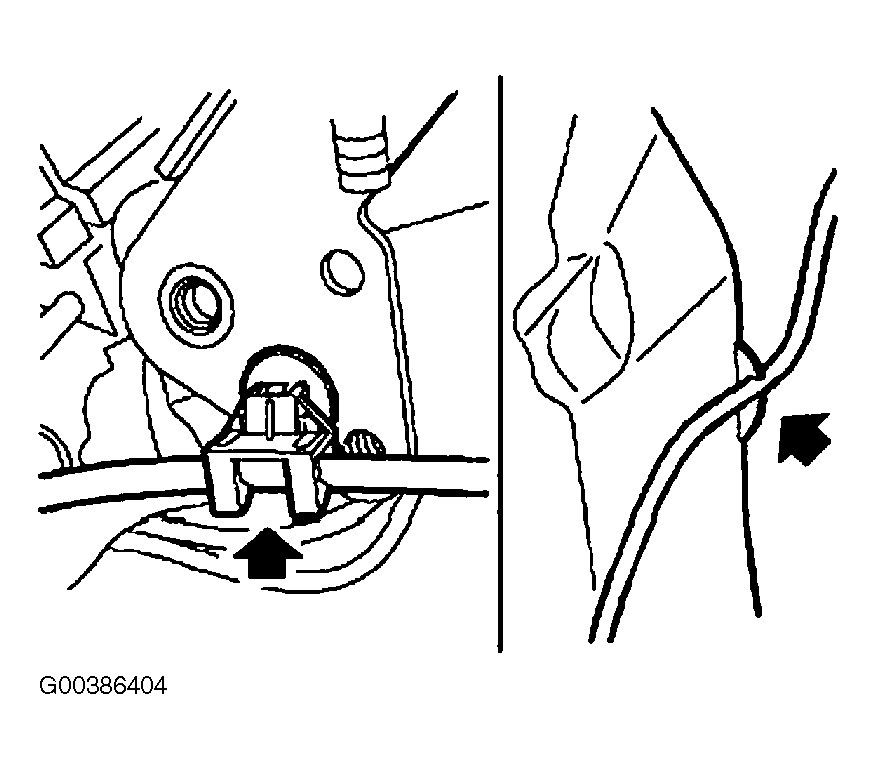

    12. Fig 3: Releasing Cable From Retaining Clips
    G00386404Courtesy of LAND ROVER NORTH AMERICA, INC.
  12. Note the cable routing, maneuver cable from under heater and steering column bracket.
  13. Remove cable.
