Cable - Key Interlock - Adjust: Adjust

  1. Select Park position.
  2. Remove key from starter switch.
  3. Remove front console. See 76.25.01 CONSOLE - FRONT - UP TO 04MY .
  4. Loosen bolt securing cable clamp. See Fig 1.

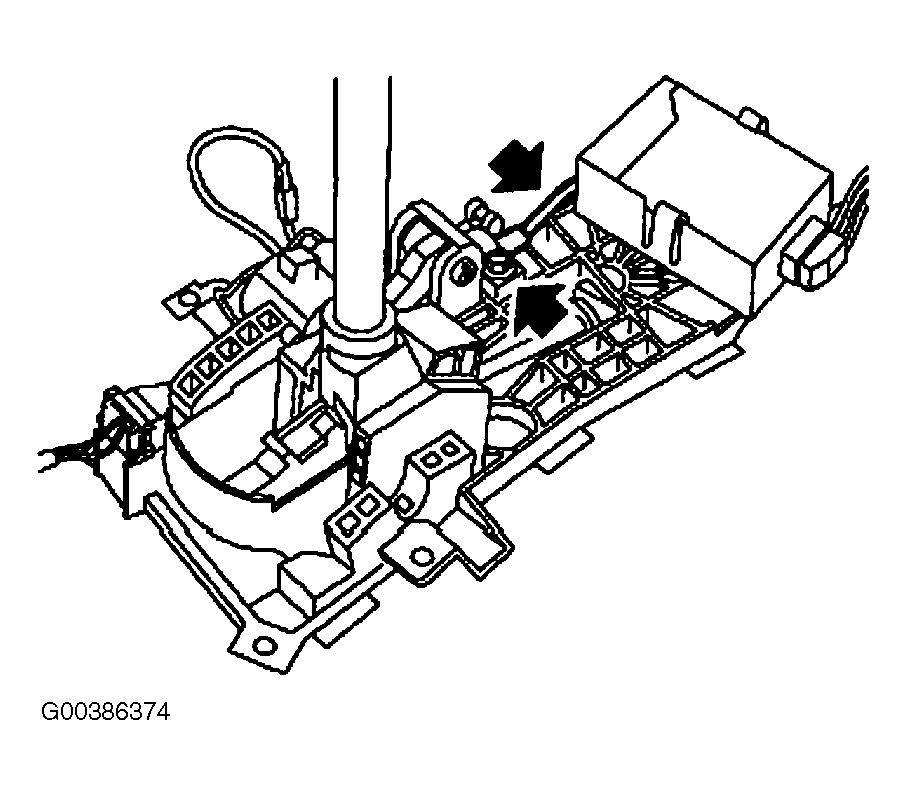

    5. Fig 1: Locating Cable Clamp Bolt
    G00386374Courtesy of LAND ROVER NORTH AMERICA, INC.
  5. Pull cable away from interlock mechanism until spring pressure is felt. Correct adjustment is cable free play removed without compressing spring. When correct tighten interlock cable clamp screw to 6 Nm (4.5 ft. lbs).
  6. Recheck cable operation.
  7. Fit front console. See 76.25.01 CONSOLE - FRONT - UP TO 04MY .
