86.77.31 Receiver - Alarm System: Remove

  1. Remove instrument cowl.

    See 88.20.02 COWL - INSTRUMENT - UP TO 04MY or 88.20.02 COWL - INSTRUMENT FROM 04MY .

  2. Remove 4 screws and remove instrument panel upper cover.

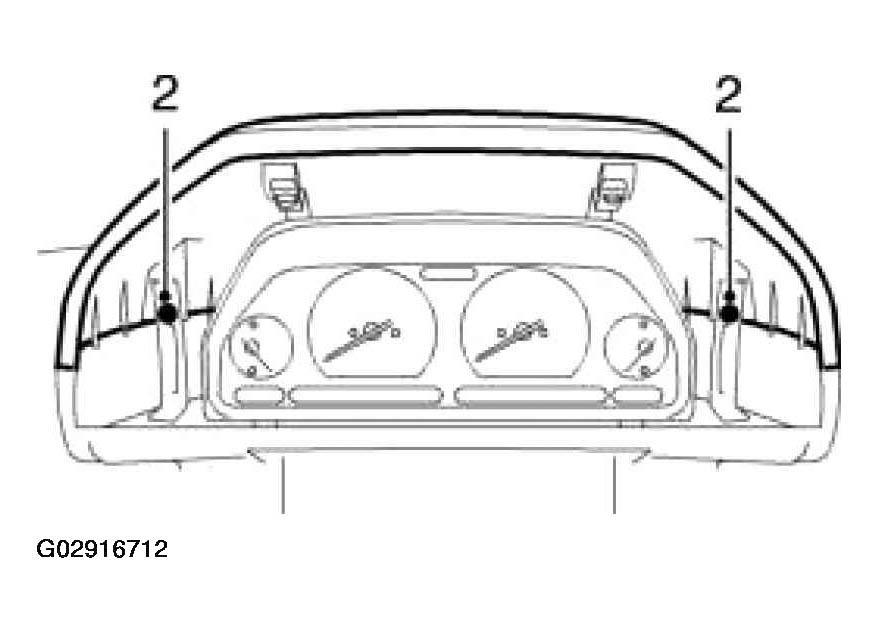

    Fig 1: Removing Instrument Panel Upper Cover
    G02916712Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Disconnect multiplug and remove alarm receiver from instrument pack.

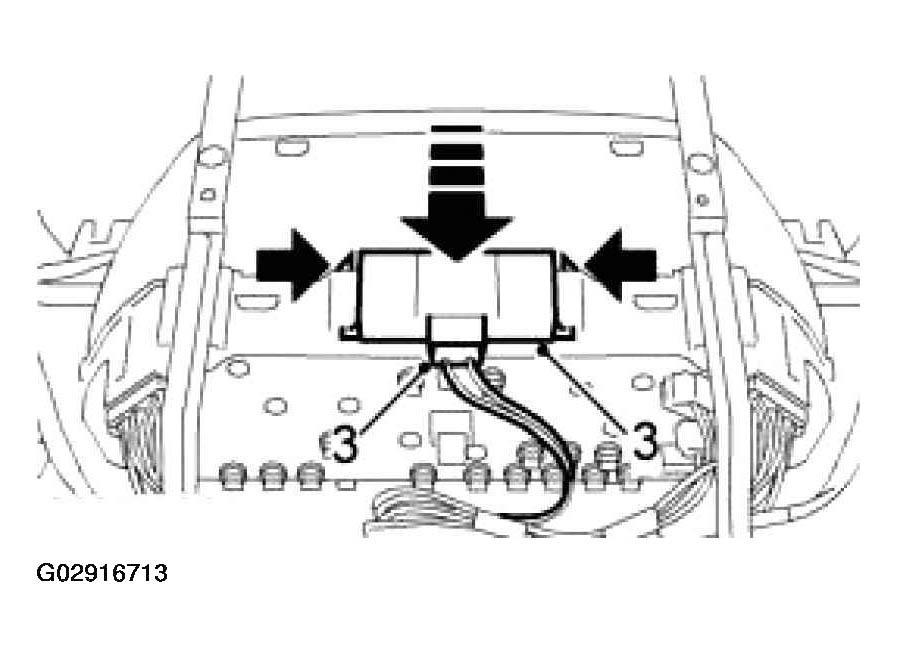

    Fig 2: Removing Alarm Receiver From Instrument Pack
    G02916713Courtesy of LAND ROVER NORTH AMERICA, INC.
