86.50.13 Switch - Remote Control - Audio System: Remove

  1. Remove drivers airbag.

  2. Release remote control switch leads and disconnect multiplug.

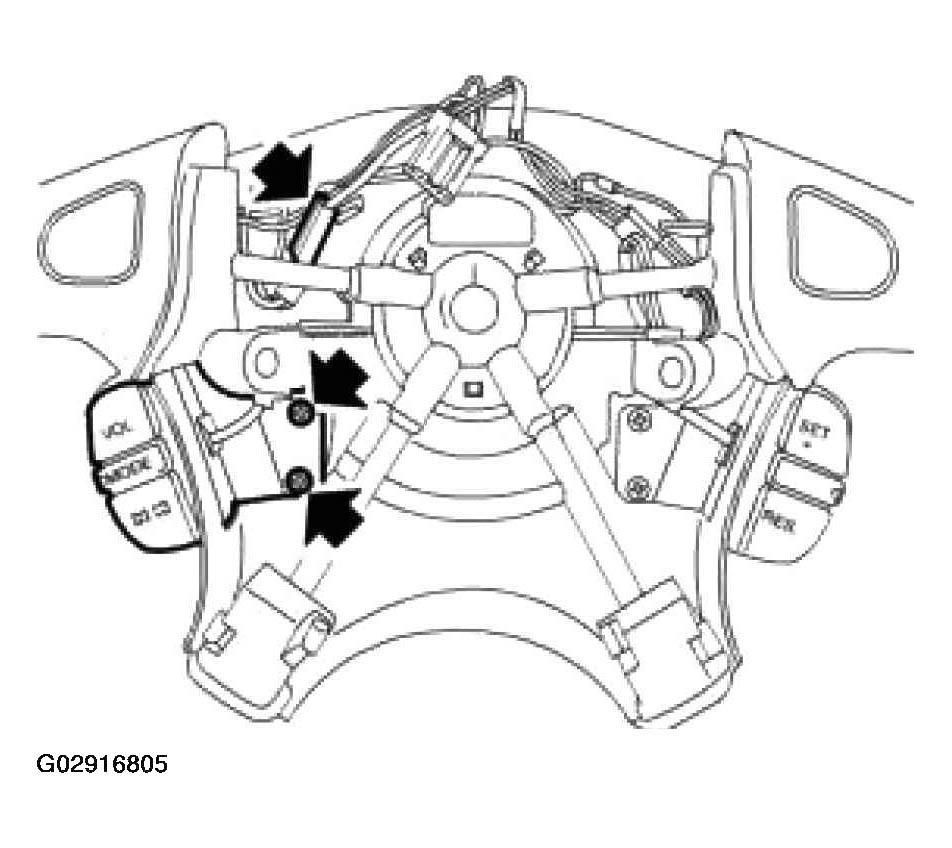

    Fig 1: Removing Screws Securing Remote Control Switch
    G02916805Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Remove 2 screws securing remote control switch and remove switch.
