76.25.01 Console Assembly Front - From 04MY: Remove

Remove rear console.
See 76.25.04 CONSOLE - REAR
Remove gear selector indicator assembly.
See SELECTOR INDICATOR (FROM MODEL YEAR 2004) .
Carefully lever upper console finisher rearward, to release clips on forward edge of finisher.

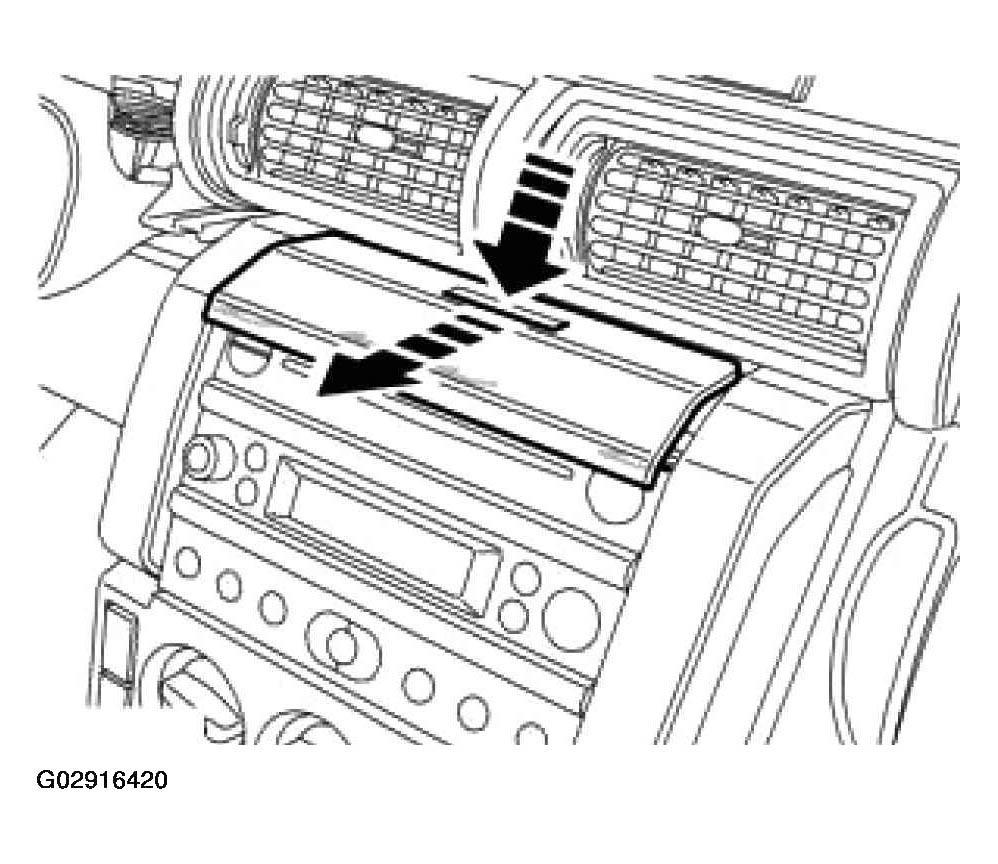

Fig 1: Removing Lever Upper Console Finisher
Courtesy of LAND ROVER NORTH AMERICA, INC.
Remove 4 screws securing centre console.

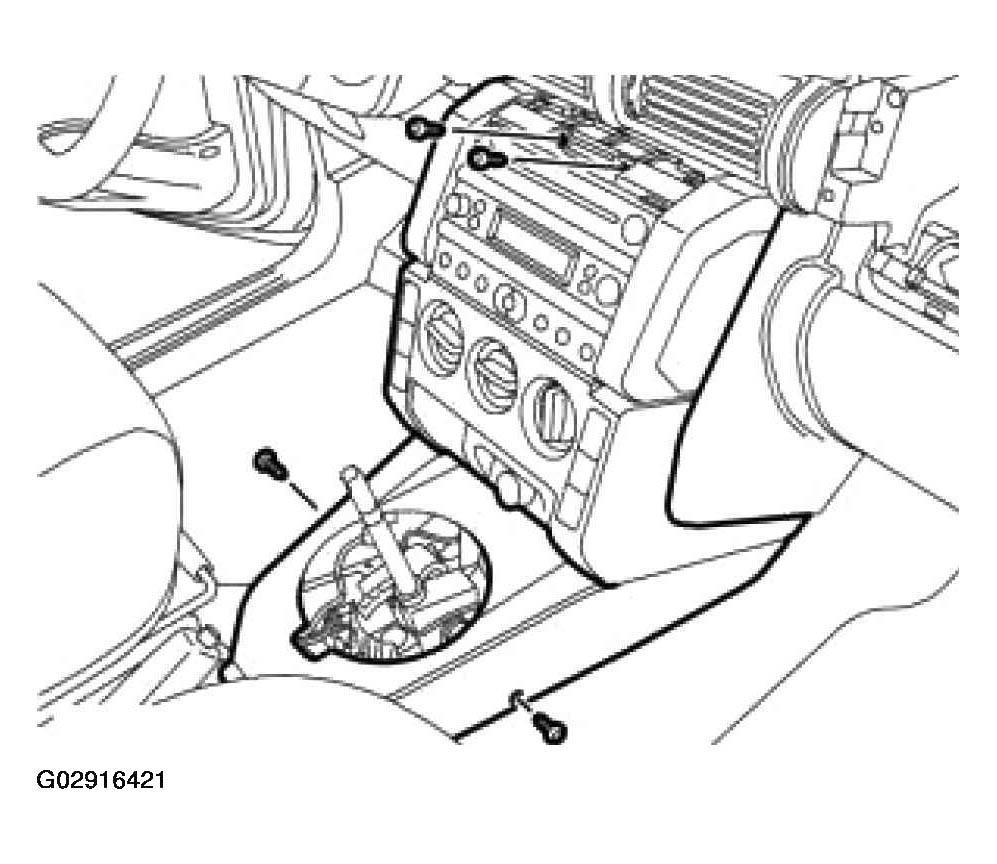

Fig 2: Removing Screws Securing Centre Console
Courtesy of LAND ROVER NORTH AMERICA, INC.
Disconnect 6 multiplugs and remove console.

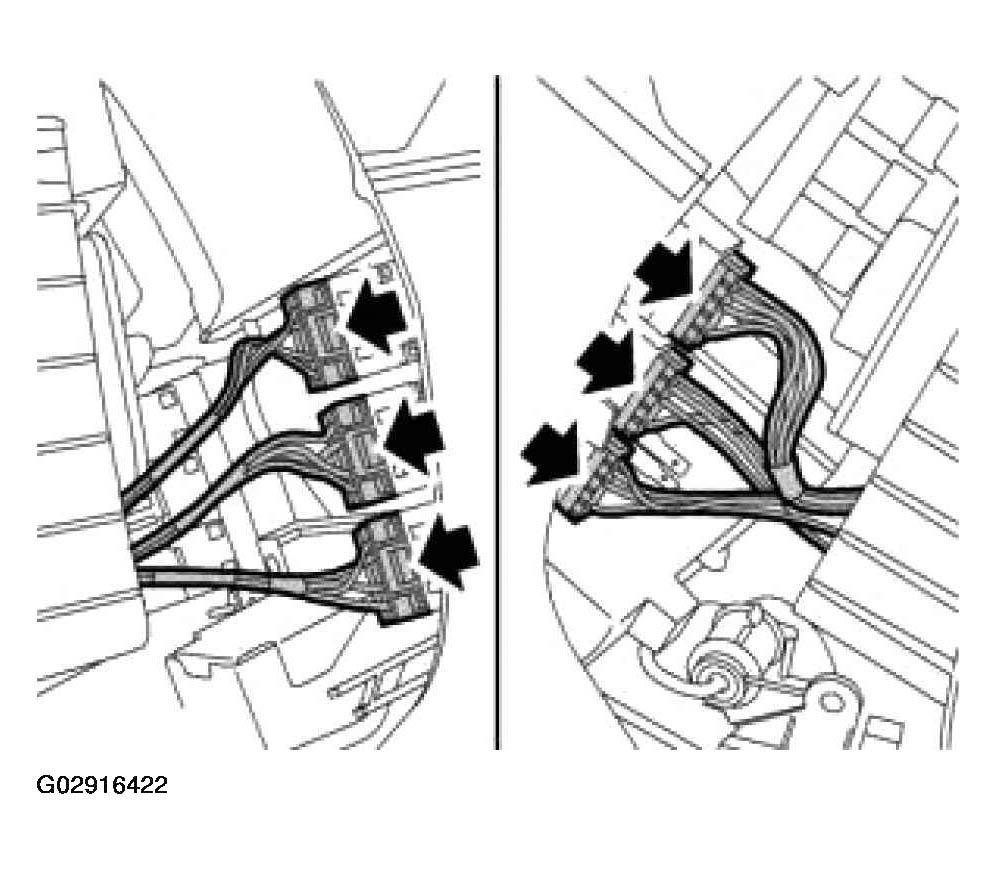

Fig 3: Disconnecting Multiplugs
Courtesy of LAND ROVER NORTH AMERICA, INC.

NOTE: Do not carry out further dismantling if component is removed for access only.
Remove switches from console, noting fitted position.
Remove 4 screws securing ash tray to centre console finisher and remove ash tray.
