Driver-Side Air Bag Module: Installation
WARNING: This page is about a different car, the 2002 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

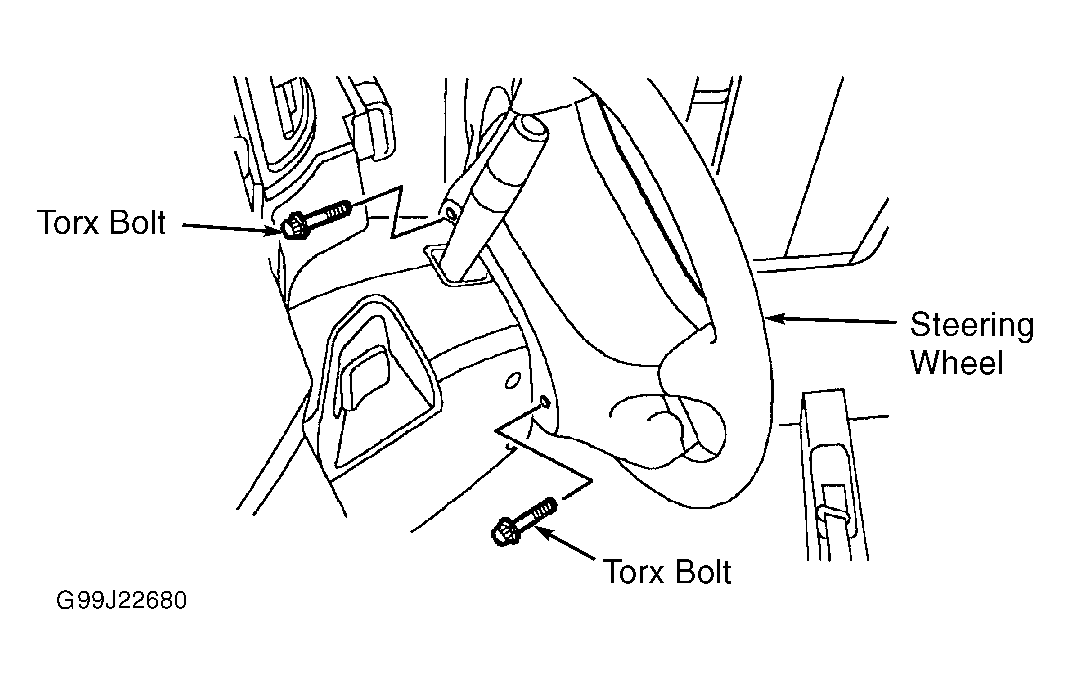

Connect driver-side air bag module connector. Position module on steering wheel and install Torx bolts. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Perform system operation check to ensure air bag system is fully functional. See SYSTEM OPERATION CHECK .
