Range Rover

WARNING: This page is about a different car, the 2000 Land Rover Range Rover, 2000 Land Rover Discovery, 1999 Land Rover Range Rover, and 1999 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

Ensure throttle cable is properly adjusted. See THROTTLE CABLE  . Ensure cruise control cable lever and inner driven lever adjustment clearance is 0.02-0.06" (0.5-1.5 mm). See Figure . Turn cruise control cable plastic adjusting nut until cruise control cable lever and inner driven lever adjustment clearance is 0.02-0.06" (0.5-1.5 mm). See Fig 1 .

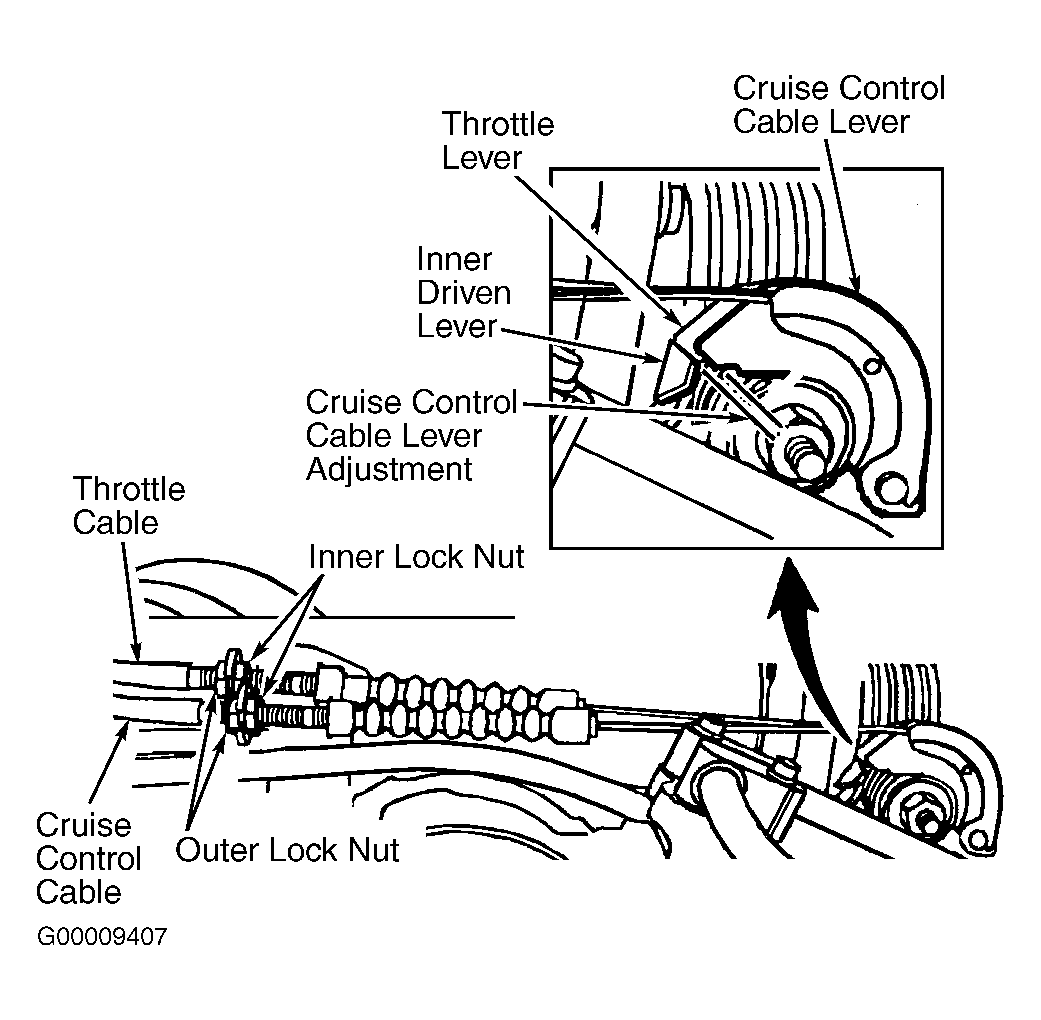

Fig 1: Adjusting Cruise Control Cable (Range Rover)
G00009408Courtesy of LAND ROVER NORTH AMERICA, INC.
