Component Locations

NOTE: On Discovery Series II, see Fig 1 for component locations. On Range Rover, see Fig 2 for component locations.

Fig 1: Locating Wiper/Washer System Components (Discovery Series II)

Courtesy of LAND ROVER NORTH AMERICA, INC.

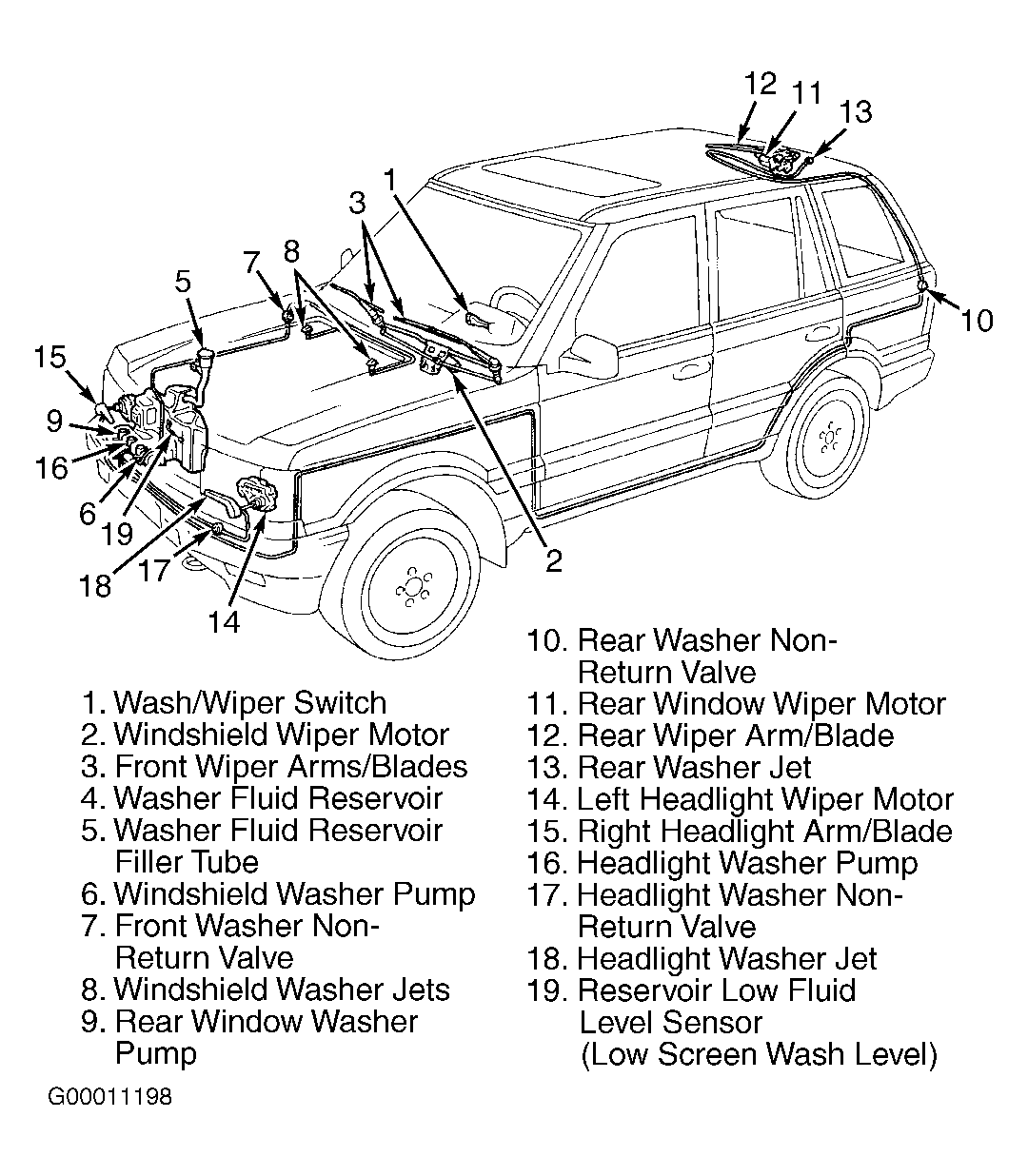

Fig 2: Locating Wiper/Washer System Components (Range Rover)

Courtesy of LAND ROVER NORTH AMERICA, INC.
