Component Locations

WARNING: This page is about a different car, the 2004 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

Refer to illustration for component locations. See Fig 1.

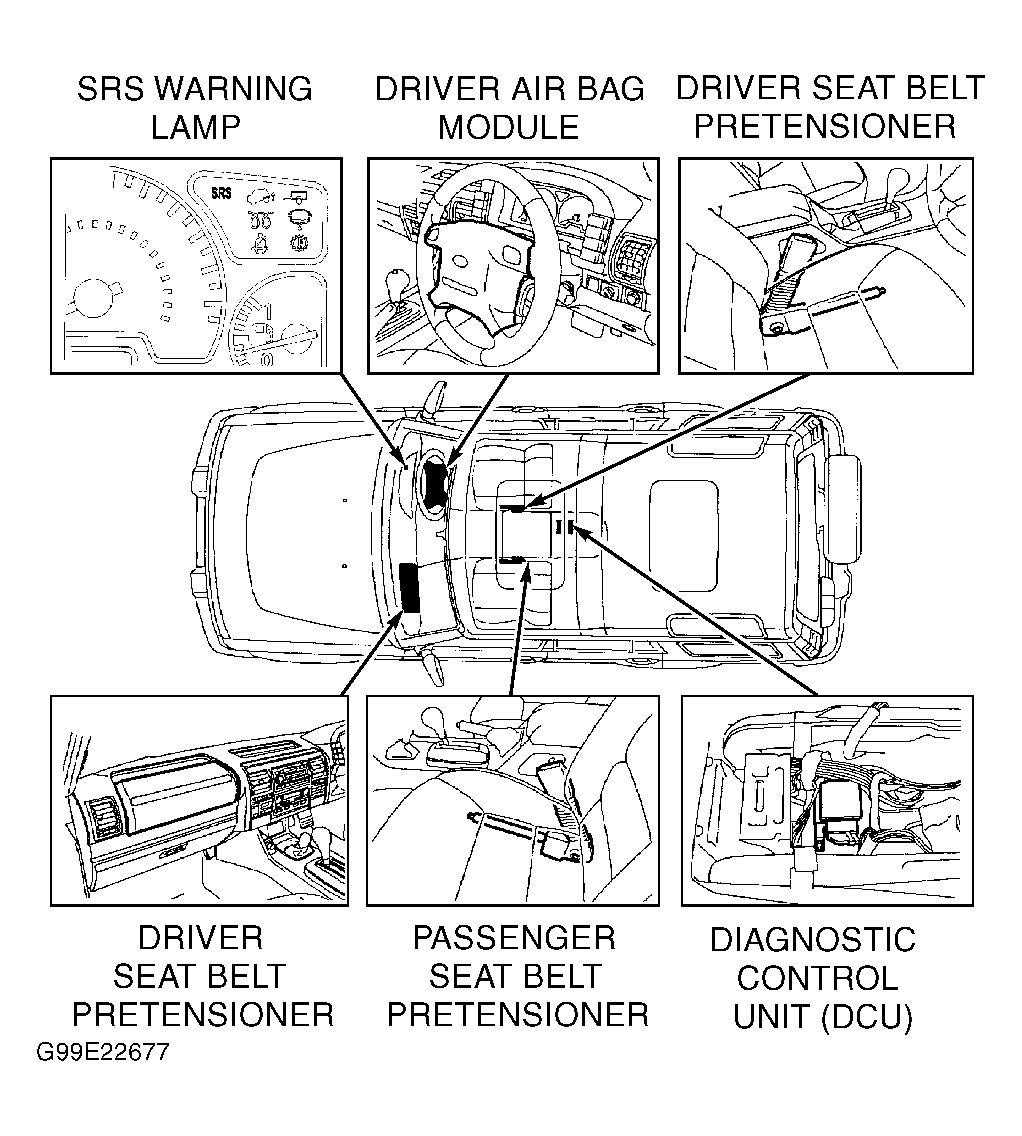

Fig 1: Identifying Restraint System Components (Right-hand Drive Shown)

Courtesy of LAND ROVER NORTH AMERICA, INC.
