Fault Code 39: Range Switch Plausibility Error/Transmission High/Low Range Implausible Input

NOTE: For circuit reference, see WIRING DIAGRAMS .

This fault code will have no apparent effect on the transmission.

For fault code description and diagnostic test procedure, see Fig 1 and Fig 2 . Freeze frame variables are N-MOT, VGT-$X and MMM. See TEST PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

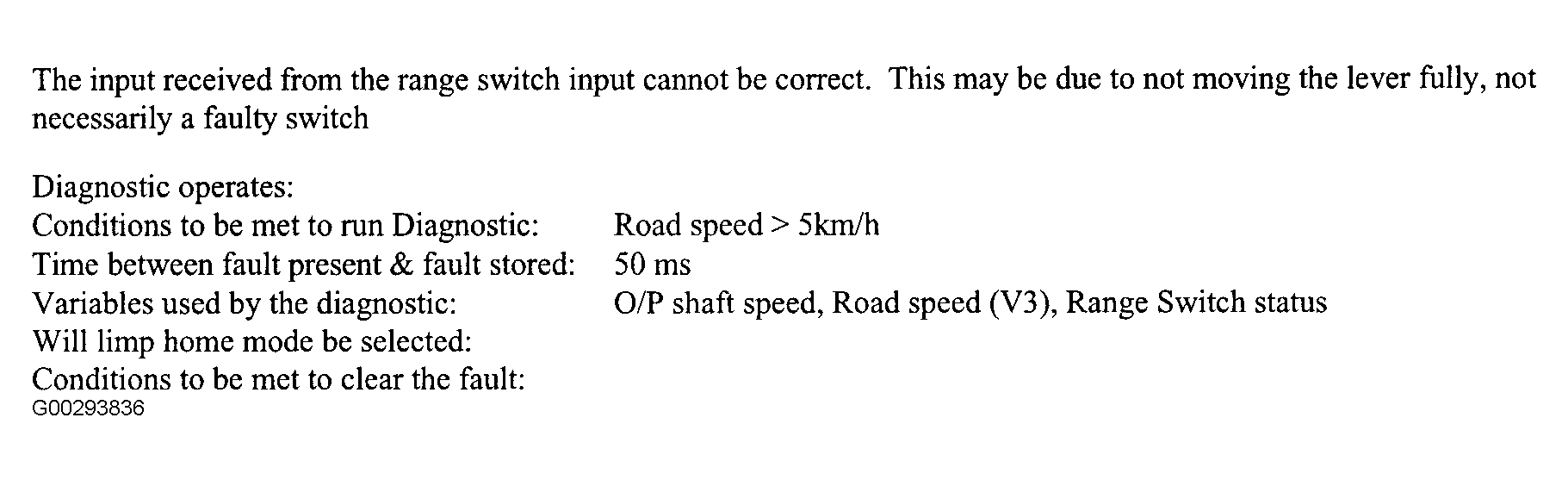

Fig 1: Fault Code 39 Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

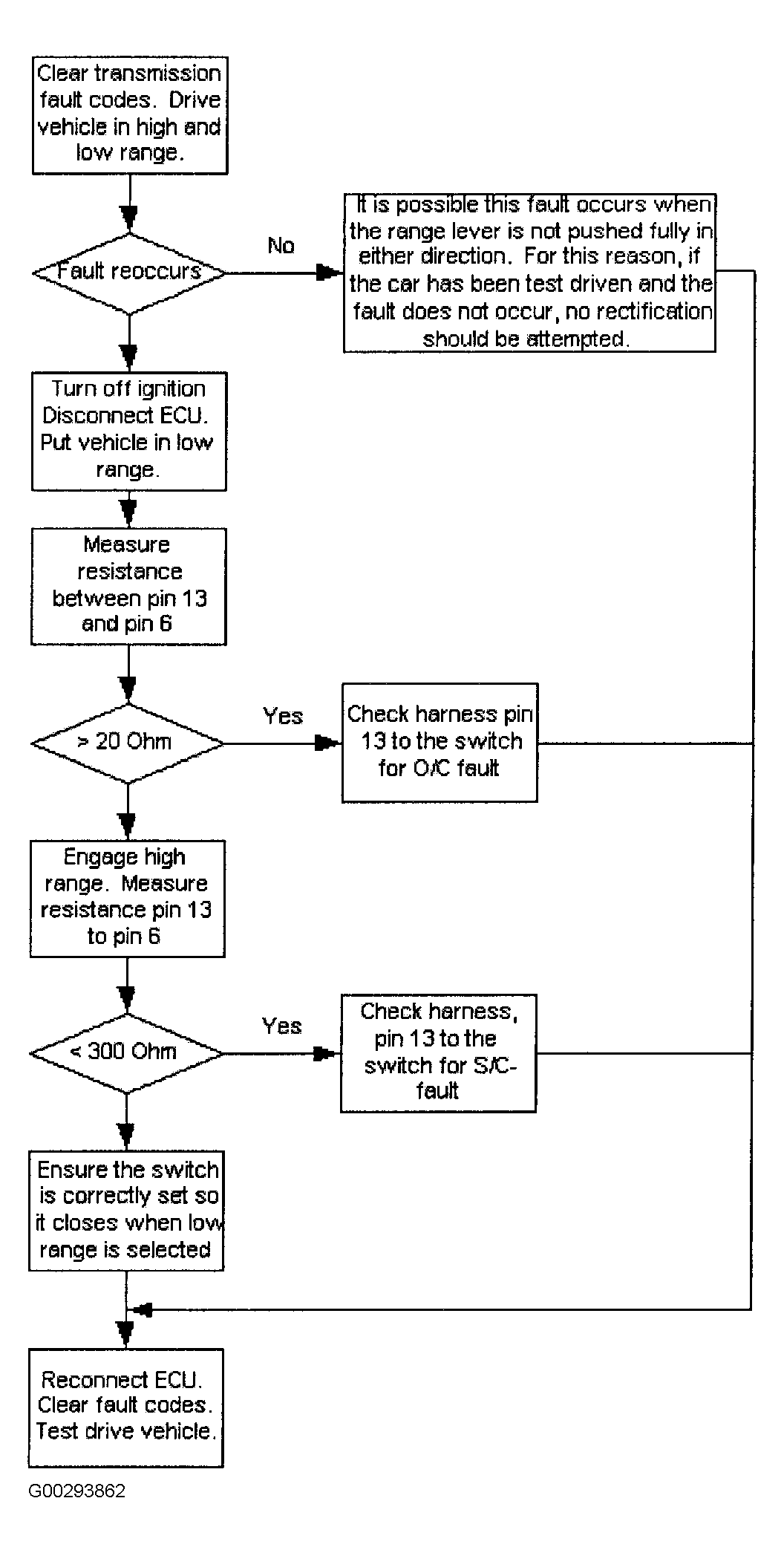

Fig 2: Fault Code 39 Diagnostic Test Procedure

Courtesy of LAND ROVER NORTH AMERICA, INC.
