Fault Code 15: Can Level Monitoring

NOTE: For circuit reference, see WIRING DIAGRAMS .

This fault code will cause transmission to maintain current gear in low range, limp home mode in high range. It will also cause a shift in pressure to maximum, harsh gear shifts and engagement.

For fault code description and diagnostic test procedure, see Fig 1 and Fig 2 . Freeze frame variables are N-MOT, VGT-$X and MMM. See TEST PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

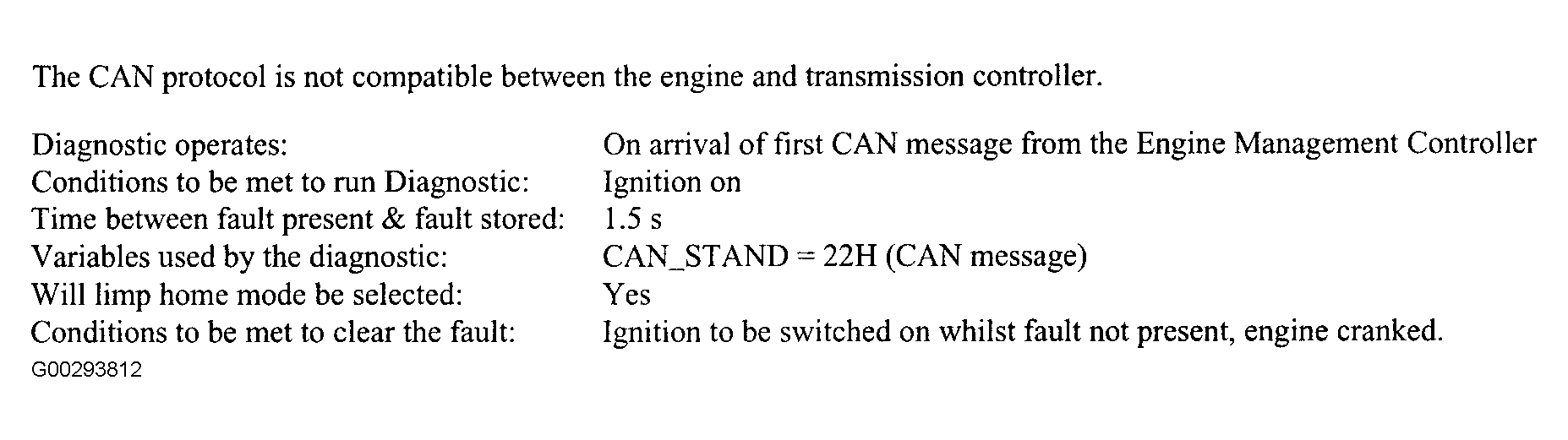

Fig 1: Fault Code 15 Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

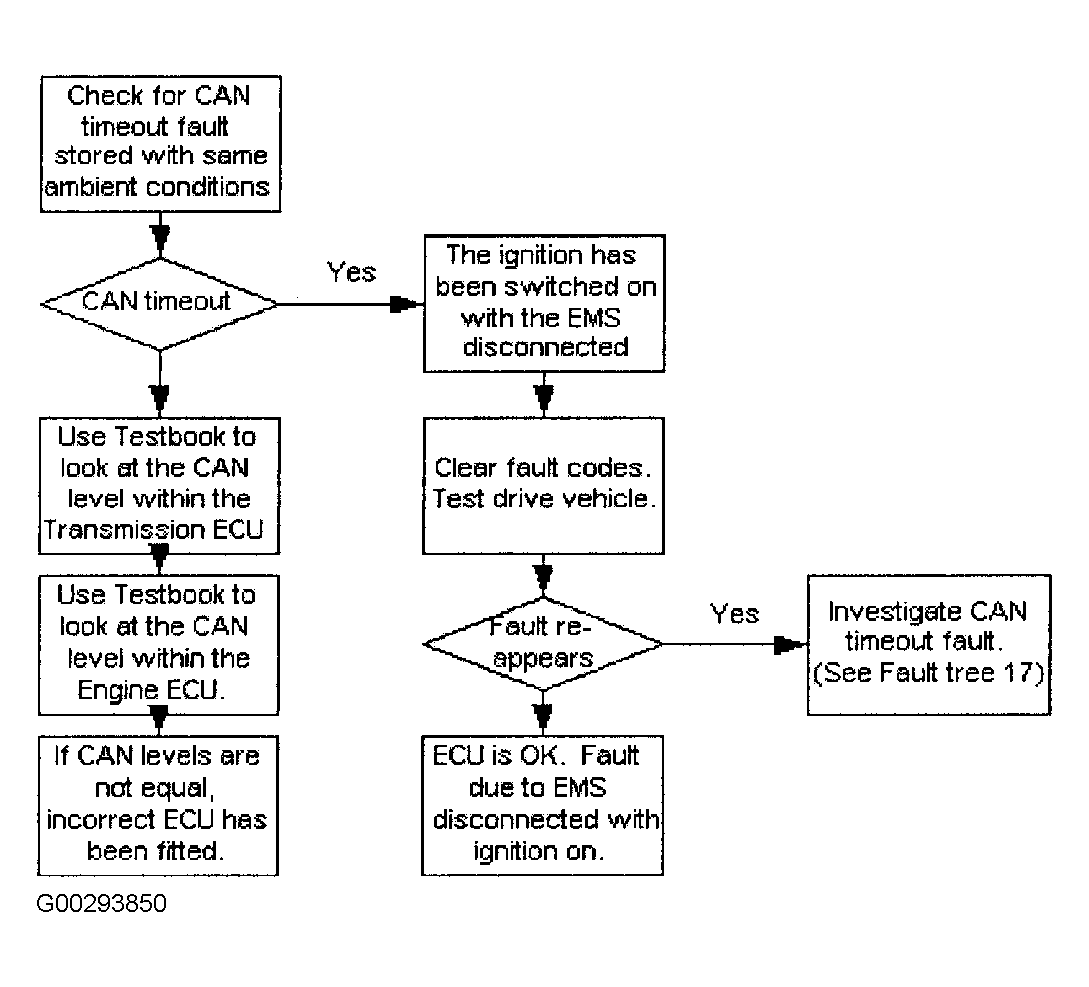

Fig 2: Fault Code 15 Diagnostic Test Procedure

Courtesy of LAND ROVER NORTH AMERICA, INC.
