Fault Code 14: Position Switch Monitoring (Permanent)/Gear Position Switch Incorrect Outputs

This fault code will cause transmission to maintain current gear in low range, limp home mode in high range. It will also cause a shift in pressure to maximum, harsh gear shifts and engagement.

For fault code description and diagnostic test procedure, see Fig 1 and Fig 2 . Freeze frame variables are N-MOT, YPO-Old and UBATT. See TEST PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

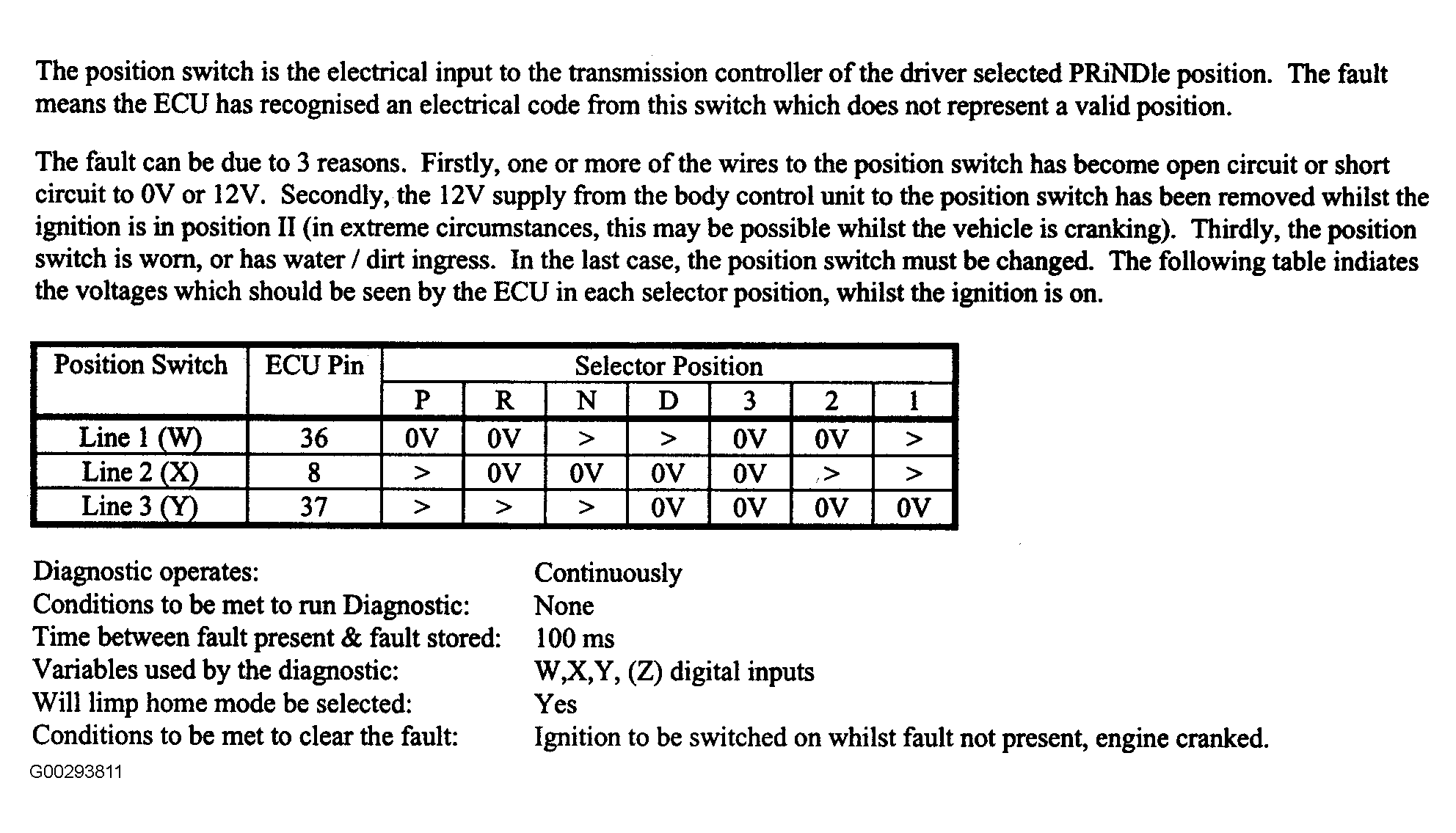

Fig 1: Fault Code 14 Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

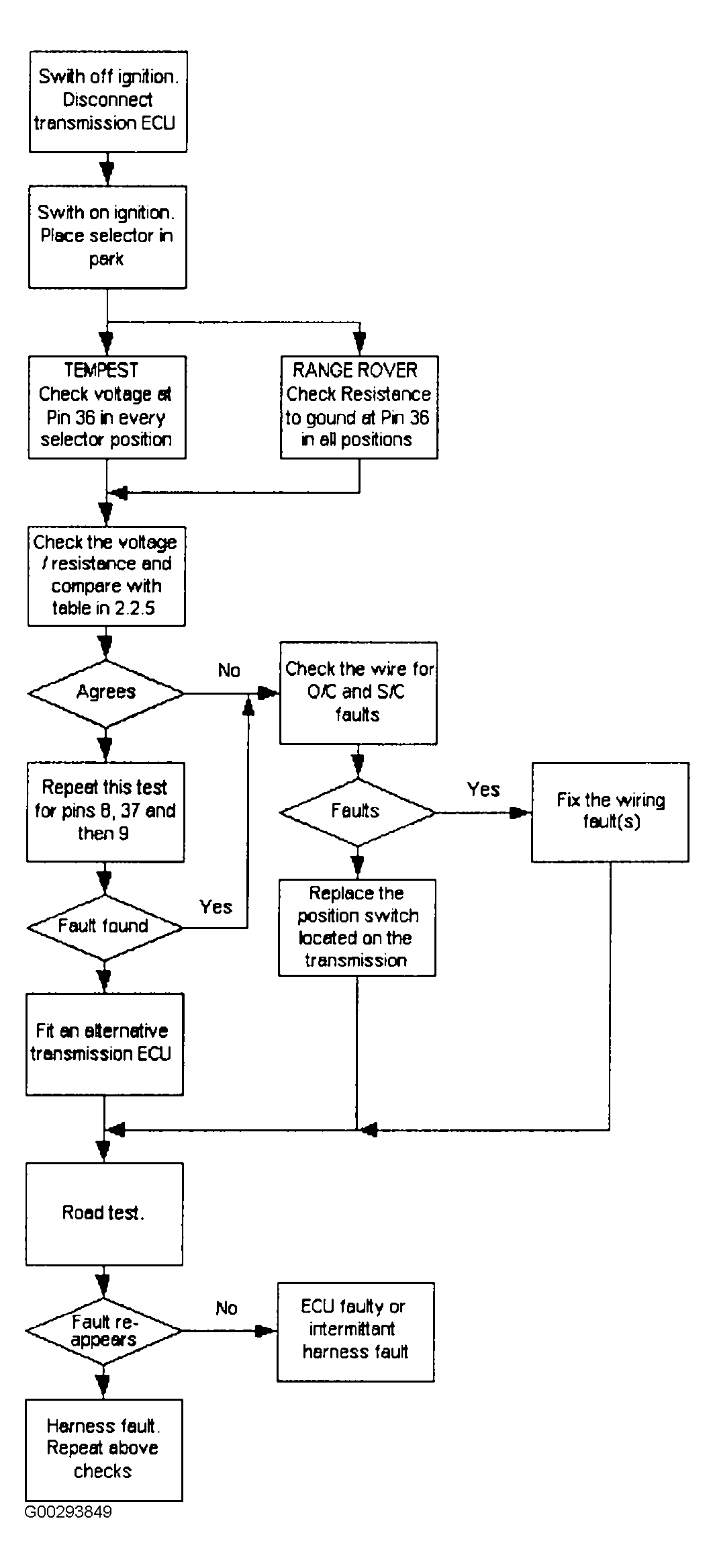

Fig 2: Fault Code 14 Diagnostic Test Procedure

Courtesy of LAND ROVER NORTH AMERICA, INC.
