Service Action Engine Harness Inspection / Repair (SB276)

Publication date: 2005-03-16
Reference number: SB276

SERVICE ACTION ENGINE HARNESS INSPECTION / REPAIR

SERVICE ACTION ENGINE HARNESS INSPECTION / REPAIR

SERVICE CAMPAIGN BULLETIN

Reference Number(s): SB276, Date of Issue:  March 16, 2005
LAND ROVER: Range Rover (LP)
ISSUE: 1
SECTION: General Info
AFFECTED VEHICLES: Range Rover (LP) XA403796 to 1A458539

SITUATION:

ENGINE HARNESS DAMAGE / CHAFE

The original harness routing path can permit the engine harness to chafe on the engine compartment fuse box bracket. Extended chafing can result in electrical short or system malfunction.

RESOLUTION:

INSPECT AND REPOSITION HARNESS

At the next service opportunity inspect the harness for damage. If damage is determined, repair the harness using harness repair kits. If damage is severe, contact the Land Rover HelpLine for consultation and authorization to replace the harness. Route the engine harness as specified in this Bulletin.

PARTS INFORMATION:

NOTE: Supply of engine harnesses is extremely limited. DO NOT order harnesses for stock.
  1. Contact the Technical HelpLine (888-577-8577 Option 3) to determine if a replacement harness is required for repair after inspection indicates that it MIGHT be.
  2. * VIN ranges are approximate. A label with part number is fitted to the harness adjacent to the battery box. Prior to ordering a replacement harness the harness part number on the vehicle must be checked  to ensure that the correct harness is ordered.
    NOTE: Repair connectors are supplied in packs of five. Due to limited availability, please restrict parts order to one pack of each of these part numbers.

    YNI000030K Harness repair kit - 0.25 mm 2  to 1.60 mm 2  wire As required

    YNI000040K Harness repair kit -1.00 mm 2  to 2.60 mm 2  wire) As required

    YNI000050K Harness repair kit - 2.70 mm 2  to 6.60 mm 2  wire As required

    YSB107710 Engine harness - Qty 1 VIN YA403796 - XA408812*

    YSB107590 Engine harness - Qty 1 VINXA408812 - XA426595*

    YSB108700 Engine harness LEV 1 - Qty 1 VIN YA426596 - YA428522*

    YSB108180 Engine harness LEV 1 - Qty 1 VIN YA428523 - 1A445423*

    YSB108210 Engine harness LEV 2 - Qty 1 VIN 1A445427 - 1A458539*

    Locally sourced:

    • Waterproof electrical tape
    • Cable tie

TOOLS

Ratchet crimping tool

Hot air gun

DDW WARRANTY CLAIMS:

Warranty claims should be submitted quoting program code B276 together with Option Code "X". Option Code X requires entry of the relevant SRO's from the Table, and the parts used for the repair. This will result in payment of stated time and where applicable parts expense.

DDW WARRANTY CLAIM SHEET

Program Code Option Job Description SRO Time (Hours) Part Number Part Description QTY Misc Expense
B276  Inspect and if indicated reroute harness 86.70.89/81 00.20
B276  Inspect, locally repair, tape and reroute harness 86.70.89.82 00.40 YNI000030K Connector - Red - 0.25mm2 to 1.60mm2 wire (See Note)
YNI000040K Connector - Blue -1.00mm2 to 2.60mm2 wire (See Note)
YNI000050K Connector - Yellow -2.70mm2 to 6.60mm2 wire (See Note)
B276  Replace engine harness (vehicles without secondary air injection) 86.70.17 04.40 YSB107710 Engine Harness 1
YSB107590 Engine Harness 1
YSB108700 Engine Harness 1
YSB108180 Engine Harness 1
B276  Replace engine harness (vehicles with secondary air injection) 86.70.17 04.70 YSB108210 Engine Harness 1

Normal warranty policy and procedures apply.

Material allowance is included in labor operation.

REPAIR PROCEDURE

INSPECT AND RE-ROUTE ENGINE HARNESS

  1. Release and remove the battery cover.
    CAUTION: After the ignition is switched off, the navigation computer remains 'on' for approximately 55 seconds. It then performs a memory back-up operation for approximately 5 seconds before shutting down into 'sleep' mode.
    If the vehicle battery is disconnected during this critical 5-second backup period, it can cause a memory error in the navigation computer. This can render the computer unusable, so that when power is reapplied, the satellite navigation system will not power up, giving a blank screen.
  2. Refer to Service Action Bulletin H269 for information governing battery removal.
  3. After waiting two minutes from ignition shut-off, disconnect the battery ground cable.
  4. Remove 3 bolts securing the engine compartment fuse box to the retaining brackets. (Fig 1 )

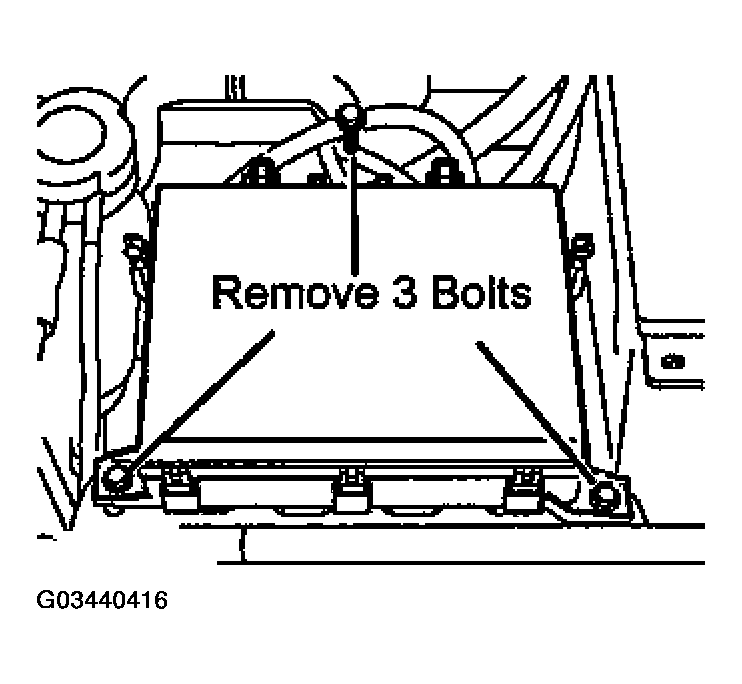

  5. Fig 1: Removing Bolts Securing Engine Compartment Fuse Box To Retaining Brackets
    G03440416
  6. Move the fuse box aside.
  7. Determine if the harness lead is incorrectly routed between the alarm horn and fuse box bracket. (Fig 2 )
  8. If incorrectly routed, inspect the engine harness for damage caused by a foul condition on the fuse box mounting bracket.

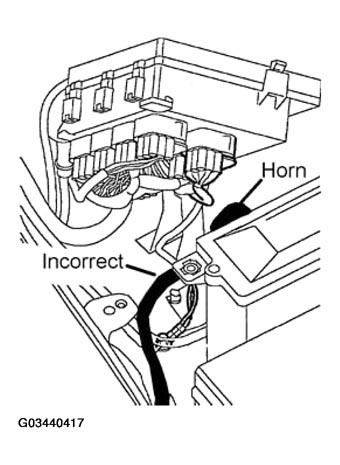

    Fig 2: Identifying Incorrect Routing Of Harness Lead
    G03440417
    NOTE: A thorough examination of the engine harness will ensure that no other damage has occurred as the result of harness routing.
  9. If the engine harness is damaged but repairable, perform the following repair process:
    • Remove outer cable sheathing to exposed damaged wires.
    • Repair individual leads using repair wires of correct cross section.
    • Insulate the repaired engine harness damaged area using electrical tape.
  10. If it is believed that the engine harness is beyond repair consult with the Technical HelpLine to verify that the replacement option is the best solution.
    NOTE: GTR lookup sequence is as follows: GTR Home > NAS > Service Information/ LP Range Rover/2002 > Workshop Manuals > Range Rover > Bookmark "86 - Electrical" > "HARNESS - ENGINE - V8 - FROM 99MY" link
  11. If it is determined that the harness is beyond repair, refer to GTR section 86.70.17 and replace the harness.
  12. During the repair or replacement process, perform the following:
    • Disconnect the alarm horn connector.
    • Position the engine harness between the battery box and the alarm horn. (Fig 3 and Fig 4 )

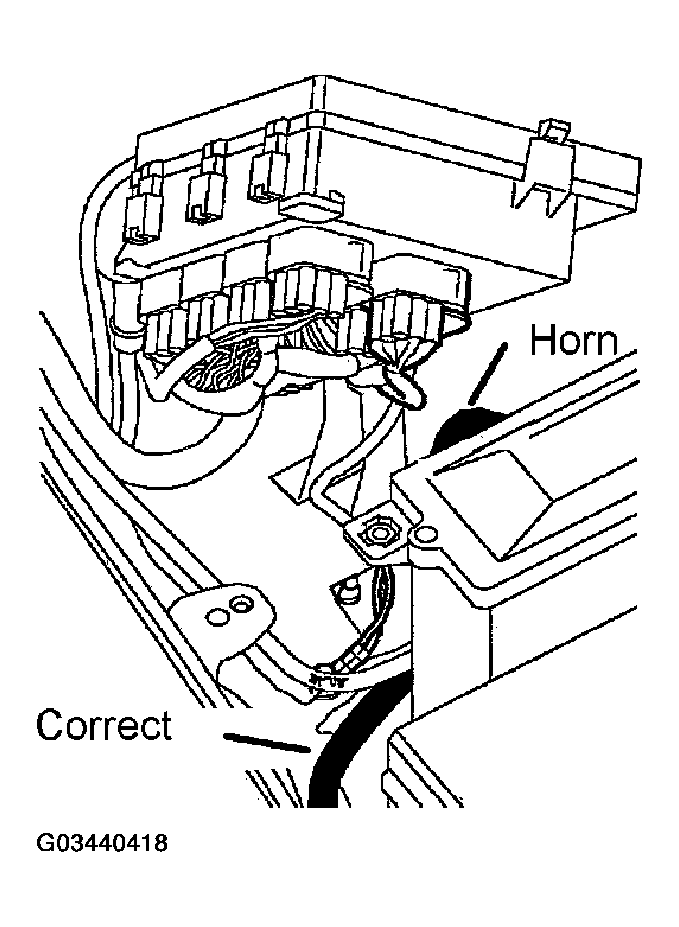

    • Fig 3: Correct Routing Of Harness Lead (1 of 2)
      G03440418

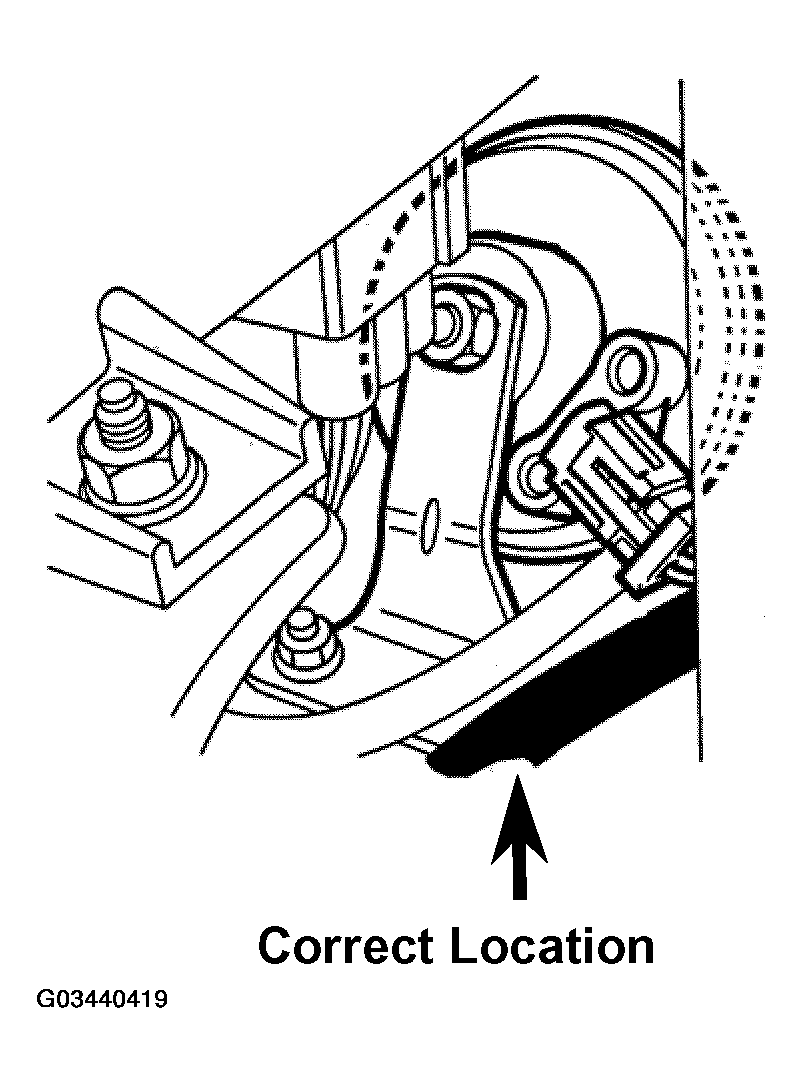

      Fig 4: Correct Routing Of Harness Lead (2 Of 2)
      G03440419
    • Ensure the engine harness is situated below the alarm horn connector.
    • Connect the alarm horn connector.
  13. Position the fuse box to the fuse box retaining brackets.
  14. Verify that the wiring to the fuse box is not trapped between the fuse box and bracket.
  15. Start the three fuse box attachment bolts and tighten to 2.5 Nm (1.8 lbf.ft).
  16. Connect the battery ground cable.
  17. Install and secure the battery cover.

CAMPAIGN LABEL

NOTE: Campaign labels are no longer required for Service Action Campaigns.
