76.64.15.21 Headlining: Remove

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Land Rover Discovery, 2003 Land Rover Discovery, 2002 Land Rover Discovery, 2001 Land Rover Discovery, and 2000 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove both 'D' post trim casings.

    Refer to TRIM CASING - 'D' POST .

  2. Remove both 'B' post upper trim casings.

    Refer to TRIM CASING - UPPER - 'B' POST .

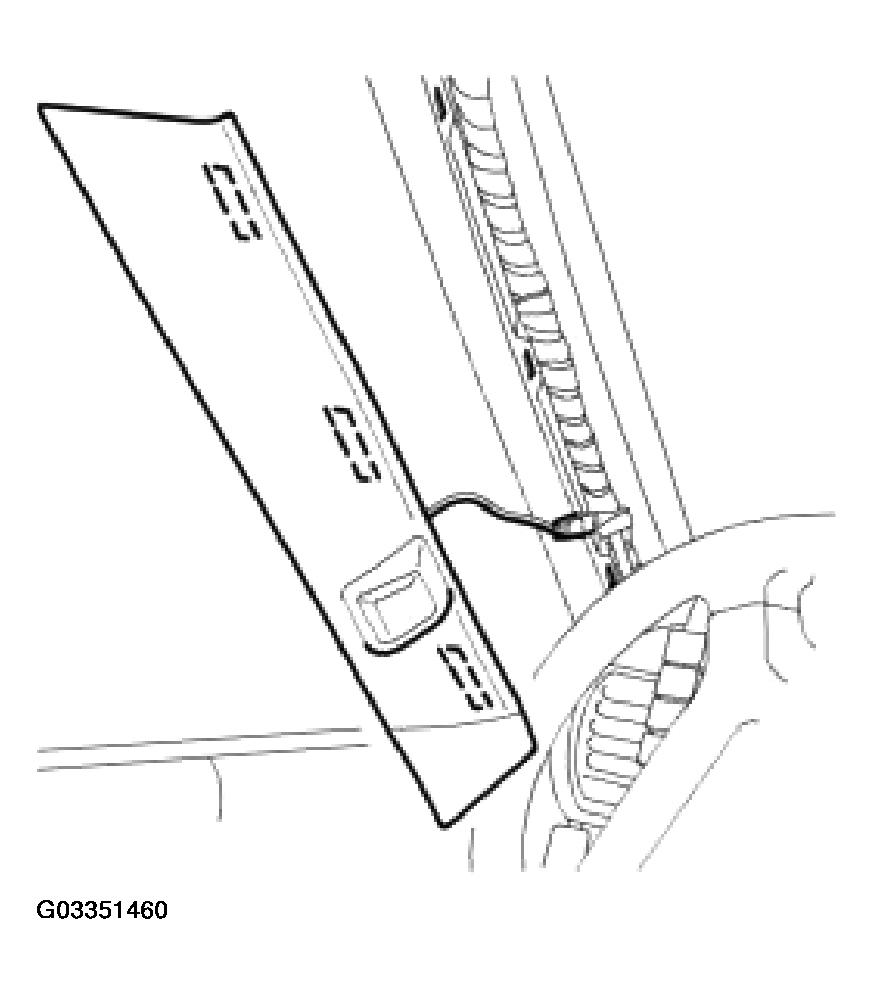

    Fig 1: Releasing Clips Securing Both 'A' Post Trim Casings
    G03351460Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Release clips securing both 'A' post trim casings.
  4. Models with premium ICE:  Disconnect multiplugs from 'A' post speakers.
  5. Remove both 'A' post trim casings.

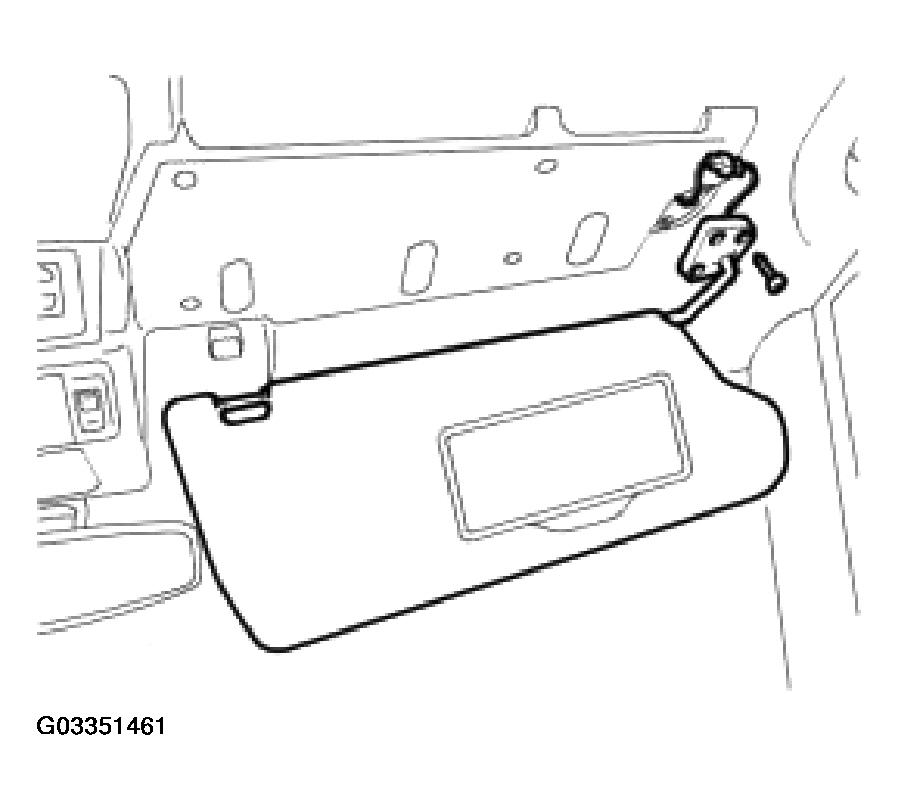

    Fig 2: Removing Screws Securing Sun Visor To Headlining
    G03351461Courtesy of LAND ROVER NORTH AMERICA, INC.
  6. Remove 3 screws securing sun visor to headlining.
  7. Release sun visor from clip.
  8. Disconnect multiplug from sun visor.
  9. Remove sun visor.
  10. Repeat process for second sun visor.

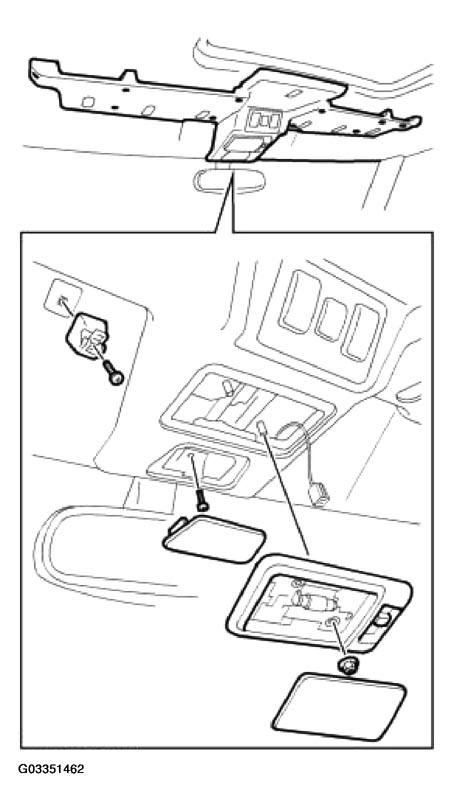

    Fig 3: Removing Access Panel From Front Edge Of Front Stowage Pocket
    G03351462Courtesy of LAND ROVER NORTH AMERICA, INC.
  11. Remove access panel from front edge of front stowage pocket.
  12. Remove screw securing front stowage pocket to headlining.
  13. Remove lens from front interior lamp.
  14. Remove 2 nuts securing front interior lamp to headlining.
  15. Disconnect multiplug from front interior lamp.
  16. Remove front interior lamp.
  17. Remove 10 screws securing front stowage pocket to headlining.
  18. Disconnect 3 multiplugs from sunroof switches.
  19. Remove front stowage pocket.
  20. Remove caps from sun visor clips.
  21. Remove screws and release both sun visor clips.
  22. Remove tail door aperture upper trim casing.
  23. Remove rear sunroof aperture trim.

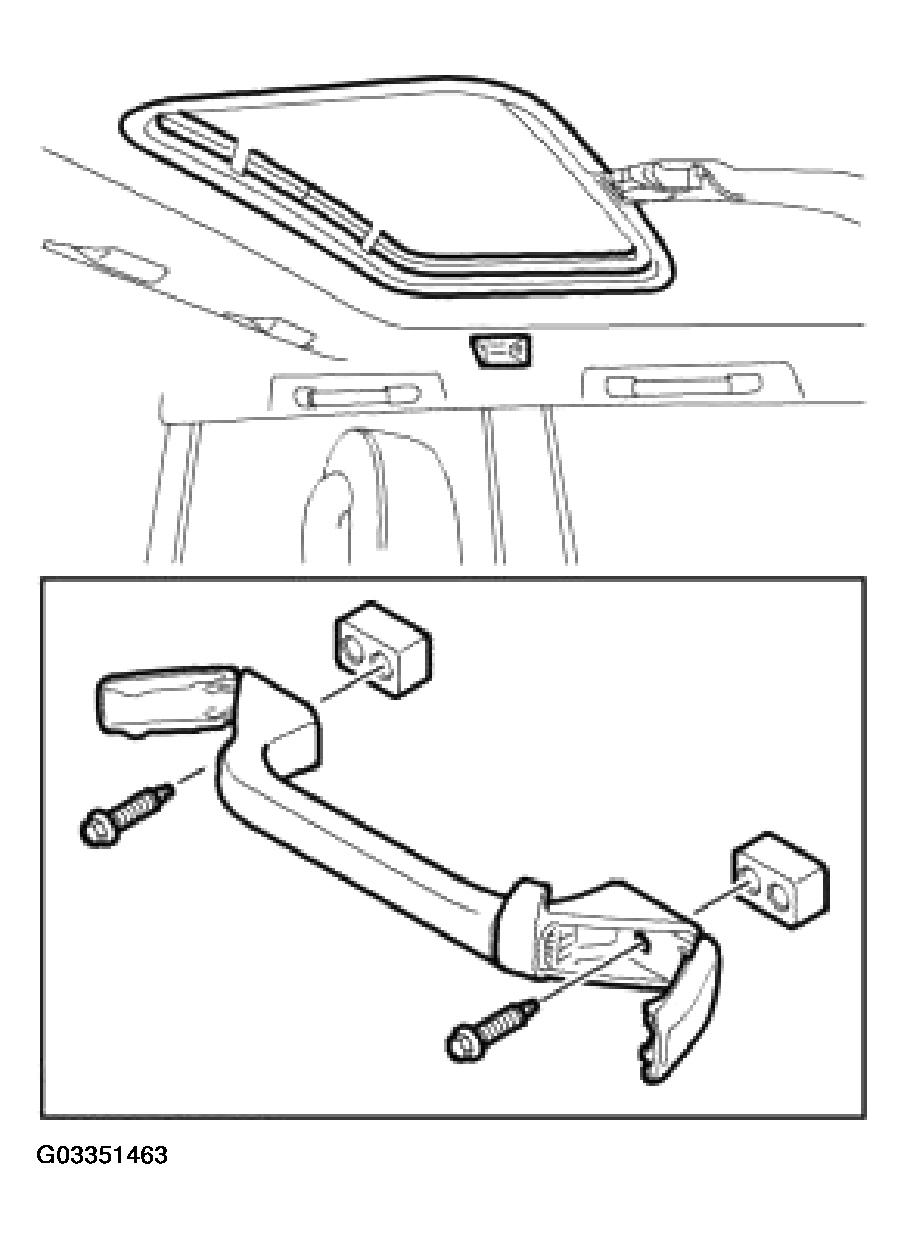

    Fig 4: Removing Front Sunroof Aperture Trim
    G03351463Courtesy of LAND ROVER NORTH AMERICA, INC.
  24. Remove front sunroof aperture trim.
  25. Release end caps from all grab handles.
  26. Remove 2 bolts securing each grab handle to roof.
  27. Remove all 4 grab handles.
  28. Models with volumetric alarm:  Release front volumetric sensor from headlining and disconnect multiplug.

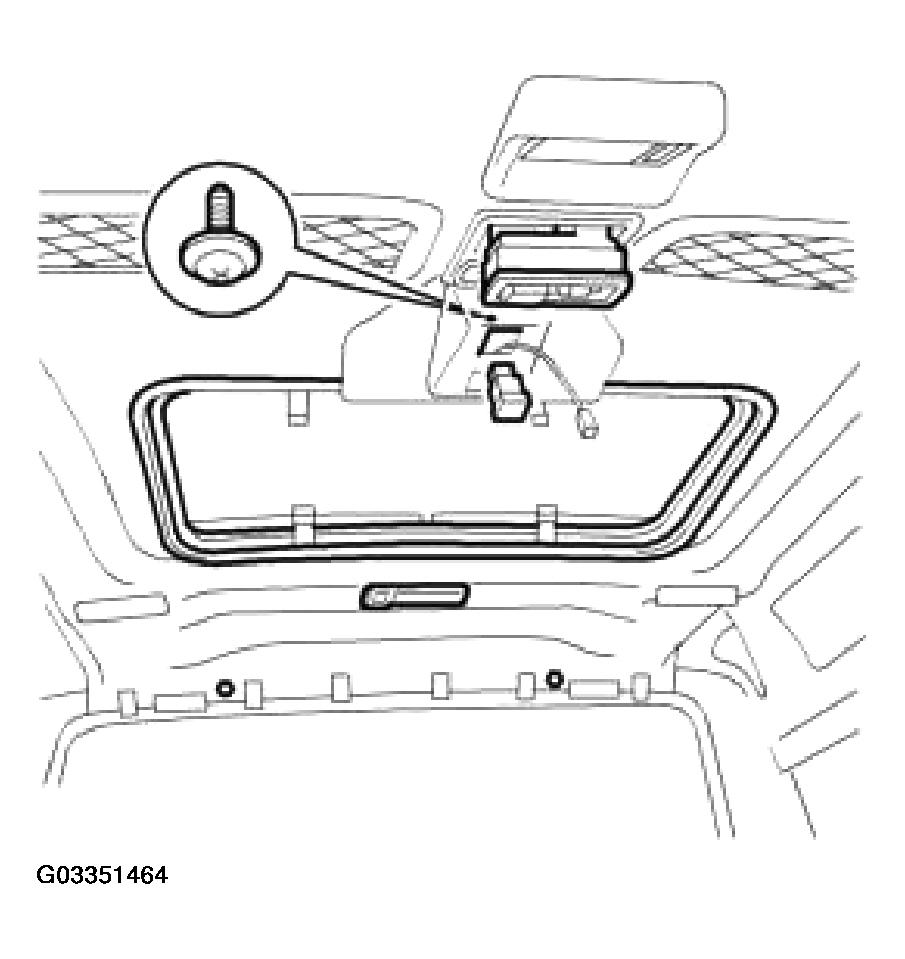

    Fig 5: Releasing Front Volumetric Sensor From Headlining And Disconnecting Multiplug
    G03351464Courtesy of LAND ROVER NORTH AMERICA, INC.
  29. Models with rear A/C:
    1. Release rear A/C control panel from headlining.
    2. Disconnect 2 multiplugs and 2 Lucar connectors from rear A/C control panel.
    3. Remove rear A/C control panel.
  30. Release rear interior lamp from headlining and disconnect multiplug.
  31. Remove rear interior lamp.
  32. Remove 2 clips securing rear of headlining to roof.
  33. Release rear sunroof switch from headlining.
  34. Disconnect multiplug and remove rear sunroof switch.
  35. Remove screw securing headlining to roof.
  36. With assistance, remove headlining.

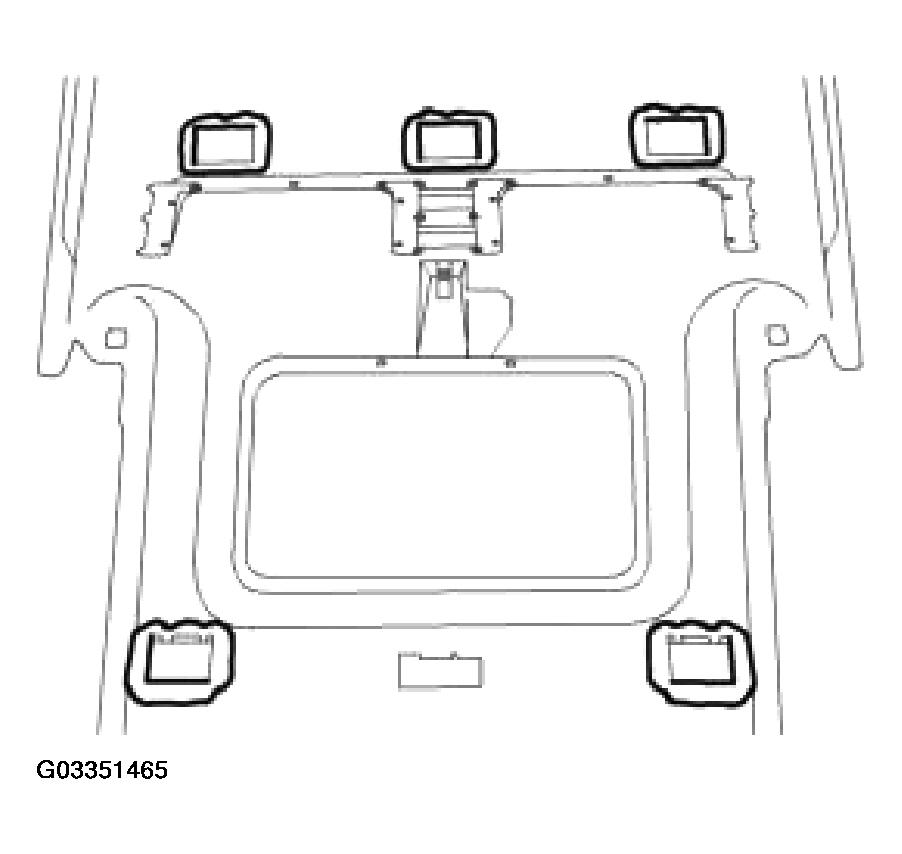

    Fig 6: Removing Headlining
    G03351465Courtesy of LAND ROVER NORTH AMERICA, INC.
  37. Models with rear A/C:
    1. Remove foam pads from air vents.
    2. Release 2 rear air vents from headlining.
    3. Release 3 central air vents from headlining.

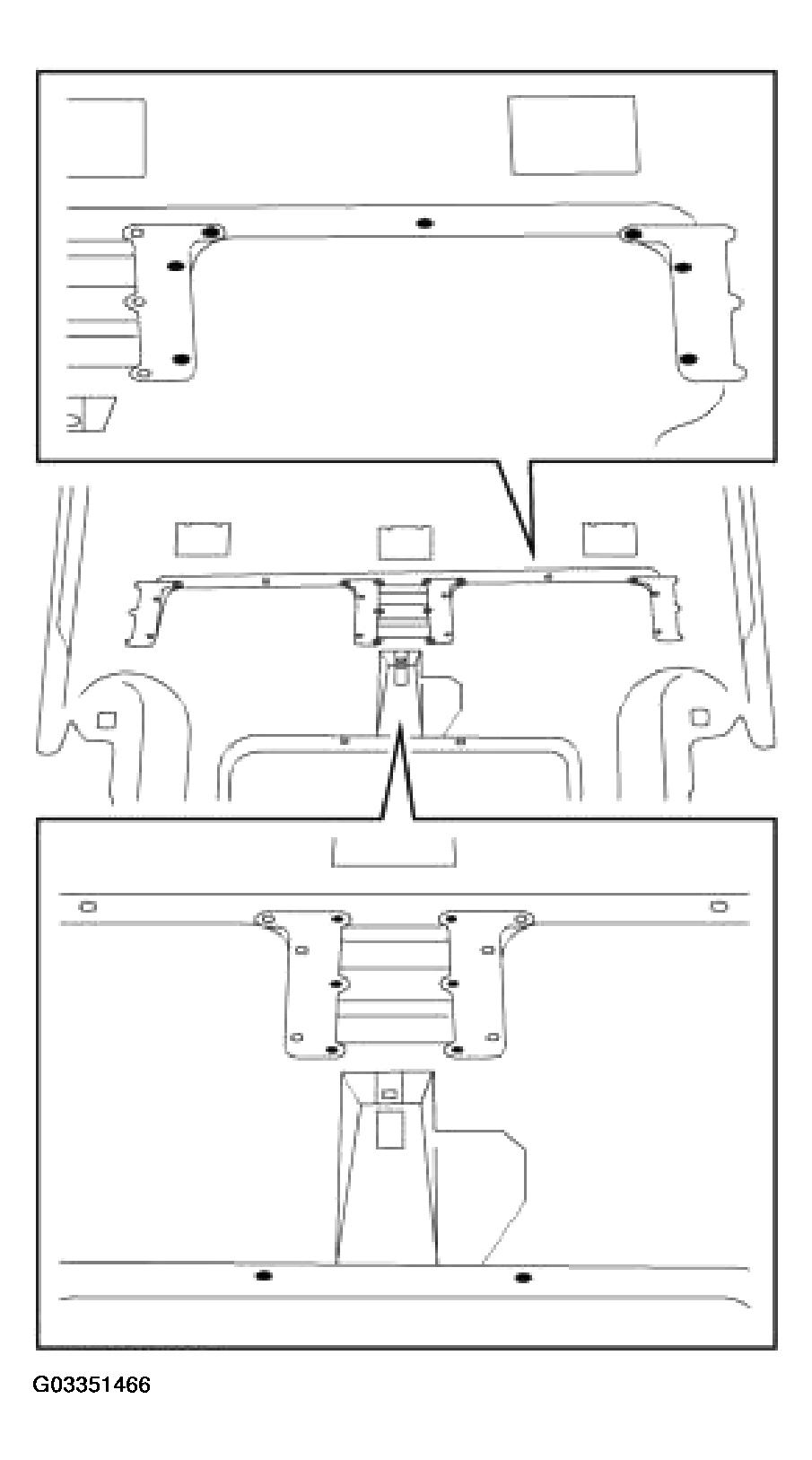

    Fig 7: Removing Nuts Securing Stowage Pocket To Headlining And Mounting Plates
    G03351466Courtesy of LAND ROVER NORTH AMERICA, INC.
  38. Remove 7 nuts securing each stowage pocket to headlining and collect mounting plates.
  39. Remove both pockets from headlining.
  40. Remove 8 screws securing rear console to headlining and collect 3 mounting plates.
  41. Remove rear console from headlining.
