Parameter Descriptions

For J1979 Mode $06 Data parameter descriptions, see Fig 1Fig 2 and Fig 3 .

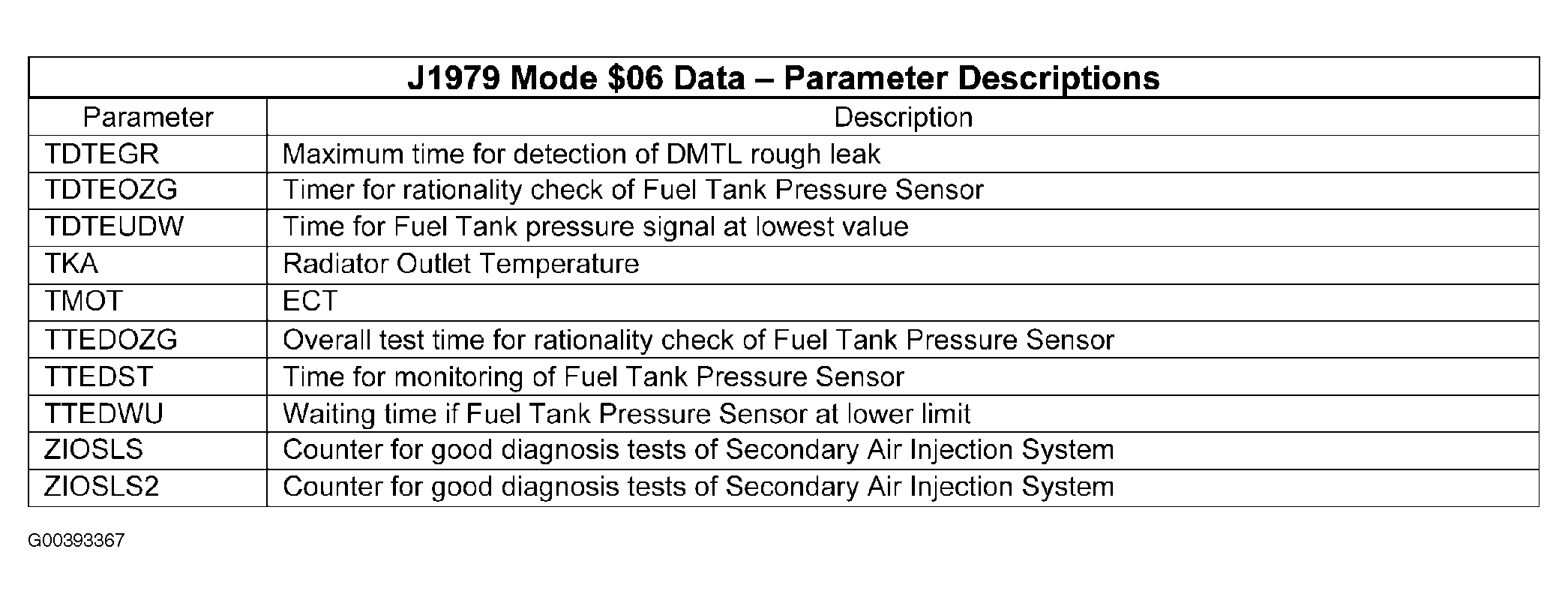

Fig 1: J1979 Mode $06 Data - Parameter Descriptions (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

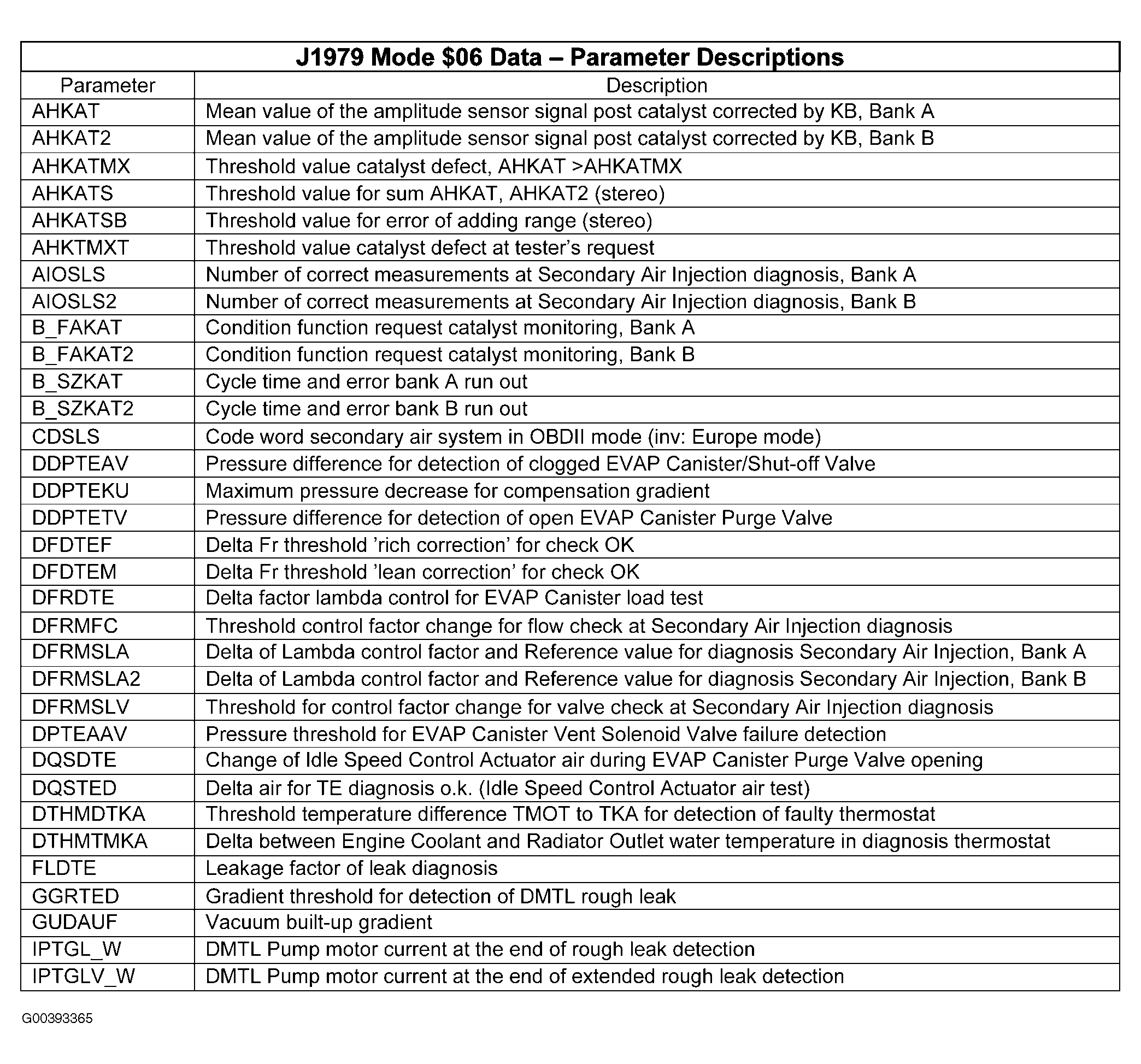

Fig 2: J1979 Mode $06 Data - Parameter Descriptions (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

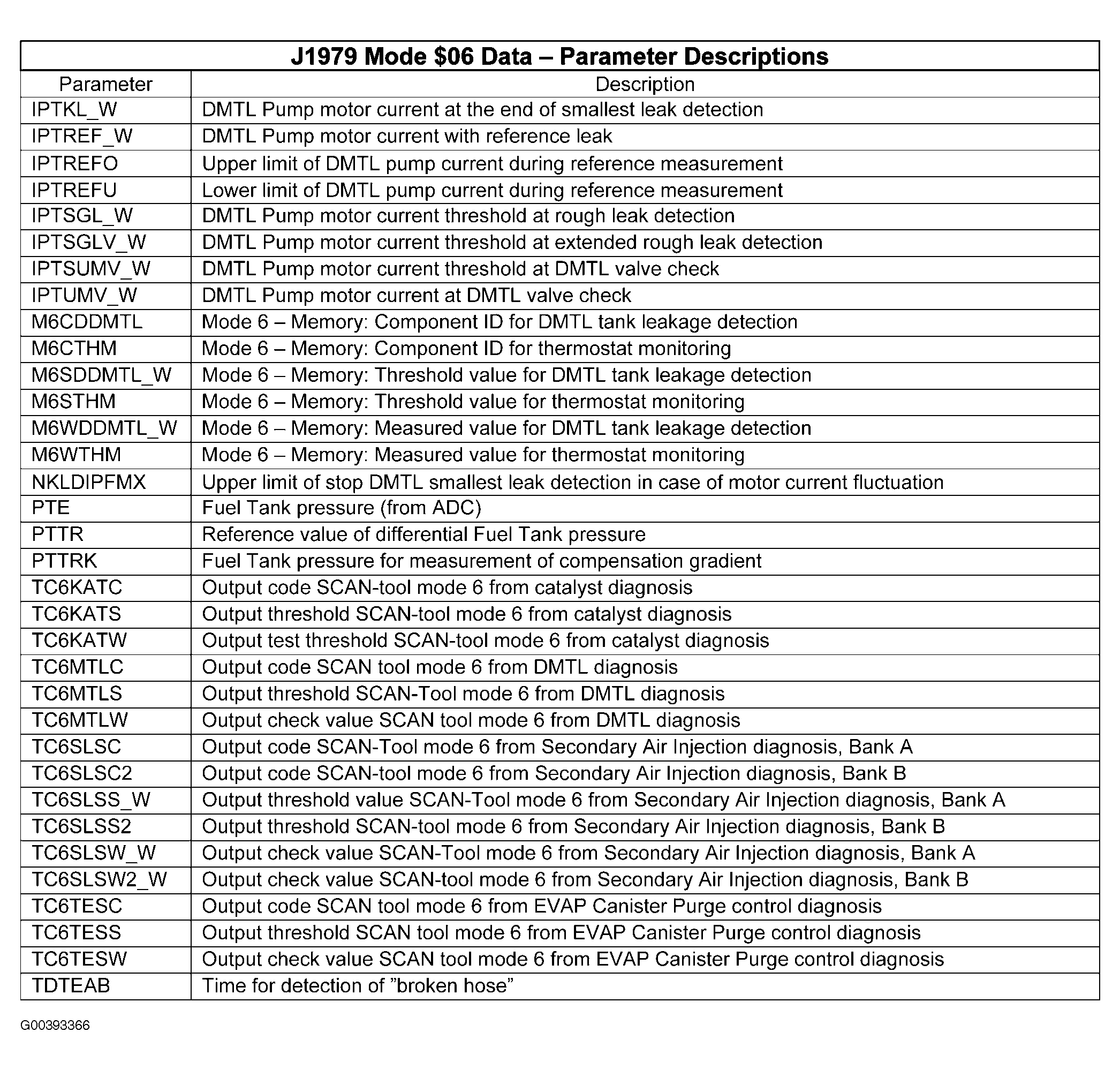

Fig 3: J1979 Mode $06 Data - Parameter Descriptions (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
