Component Locations: Discovery

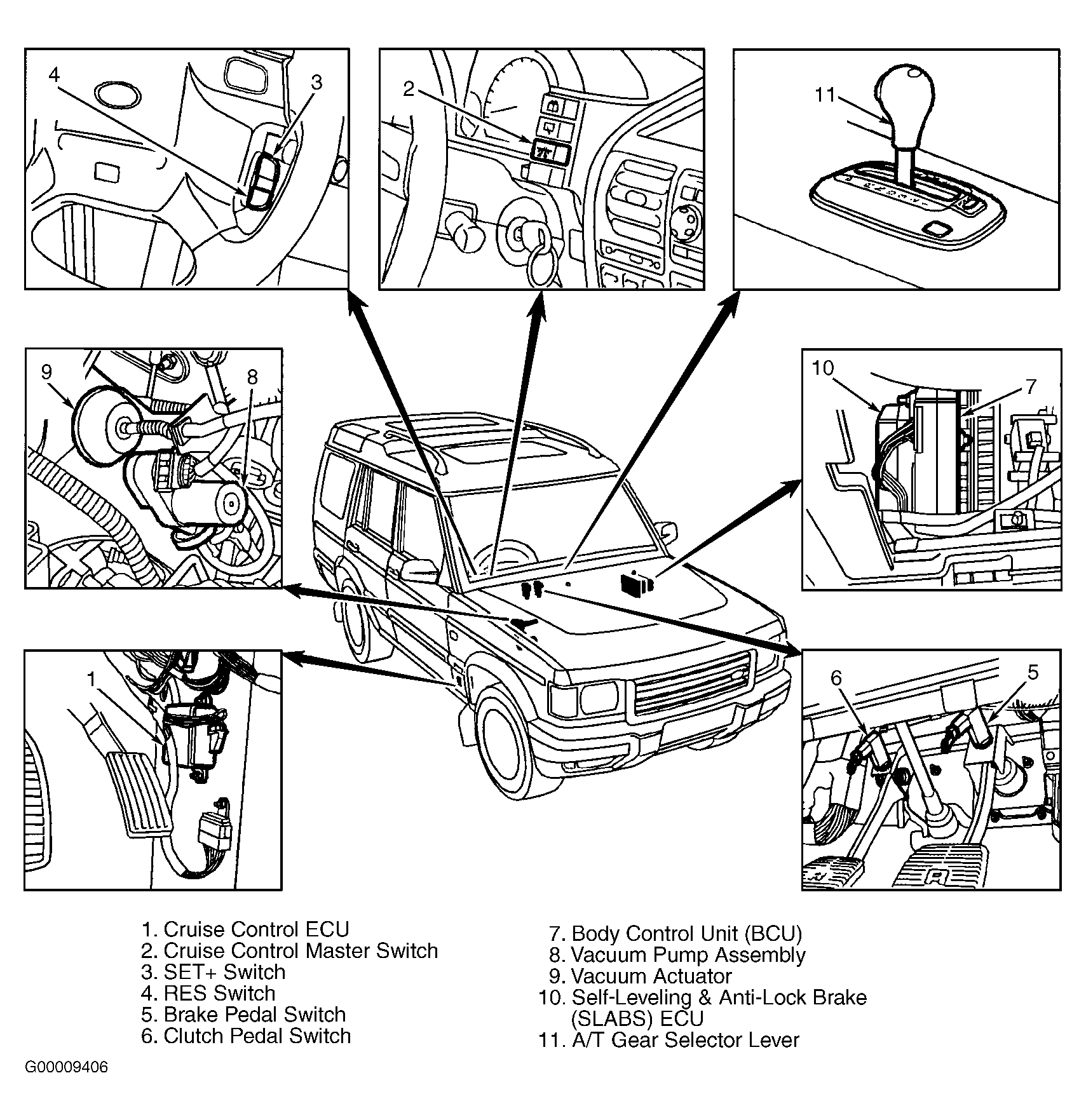

For Discovery Series II cruise control component locations, see Fig 1 .
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Actuator | Right Side Of Engine Compartment |
| Brake Pedal Switch | On Brake Pedal Mounting Bracket |
| Clutch Pedal Switch (M/T) | On Clutch Pedal Mounting Bracket |
| Cruise Control Diode | In Cruise Control Wiring Harness, Under Right Side Of Instrument Panel |
| Cruise Control Disable Relay | Behind Right Footwell Trim Panel |
| Cruise Control Engagement (On/Off) Switch | On Instrument Panel |
| Cruise Control ECU | Under Right Side Of Instrument Panel, On Bracket |
| Cruise Control Lock-Out Relay | Under Right Side Of Instrument Panel, On Bracket |
| Cruise Control Vacuum Pump | Left Front Corner Of Engine Compartment |
| Engine Speed/Trip ECU (M/T) | Behind Right Footwell Trim Panel |
| RESUME/DECEL Switch | On Steering Wheel |
| Rotary Coupler (Clockspring) | On Steering Wheel |
| SET/ACCEL Switch | On Steering Wheel |
| Vehicle Speed Sensor (VSS) | On Transfer Case, Behind Transmission Brake |
