System Interfaces Monitoring

For system interface monitoring information, see Fig 1 and Fig 2 .

NOTE: This monitor covers information for DTC P1705, P1841-P1843 and P1884.

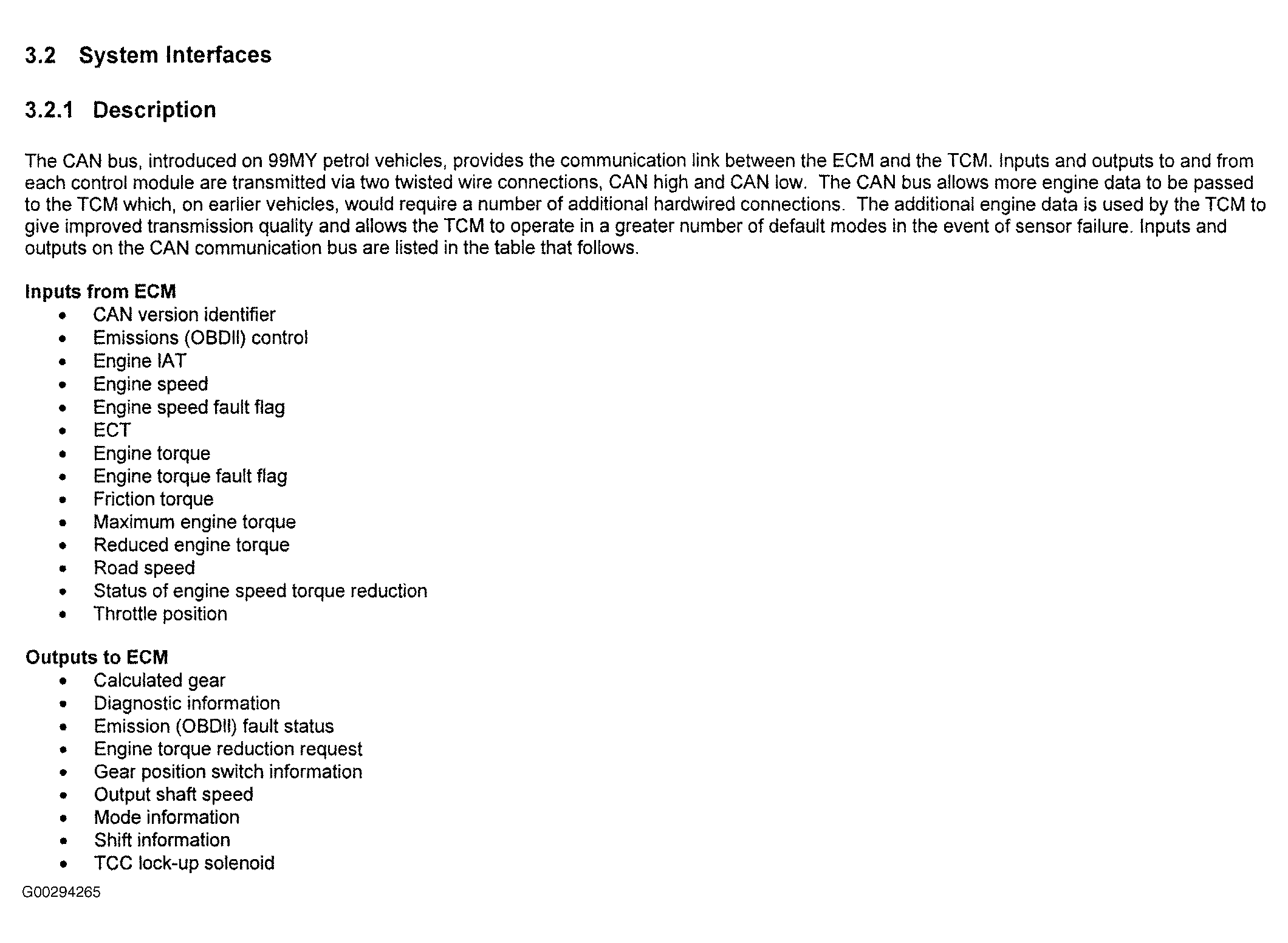

Fig 1: System Interfaces Monitoring (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

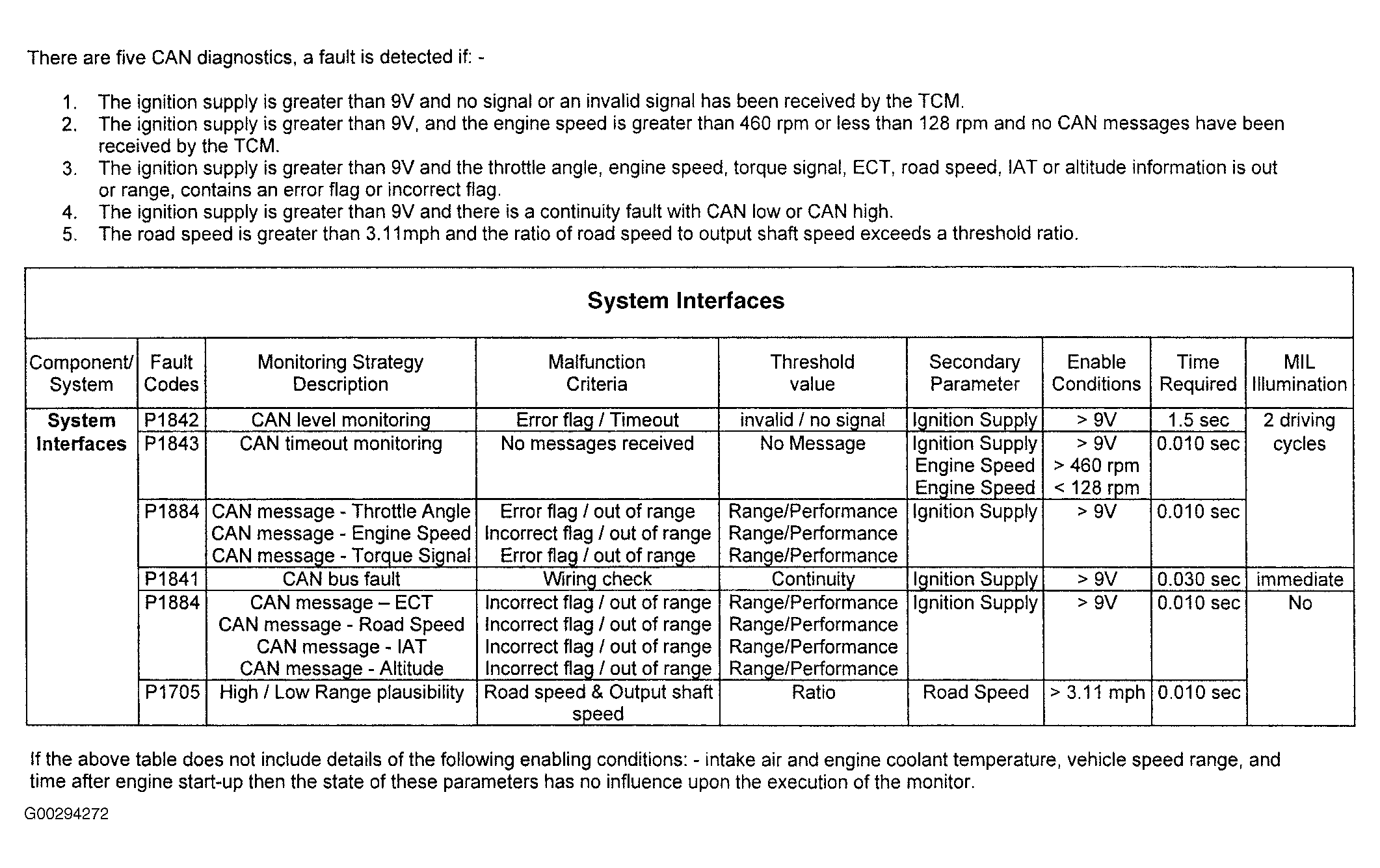

Fig 2: System Interfaces Monitoring (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
