End Of Line Programming Monitoring

For end of line programming monitoring information, see Fig 1.

NOTE: This monitor covers information for DTC P1602.

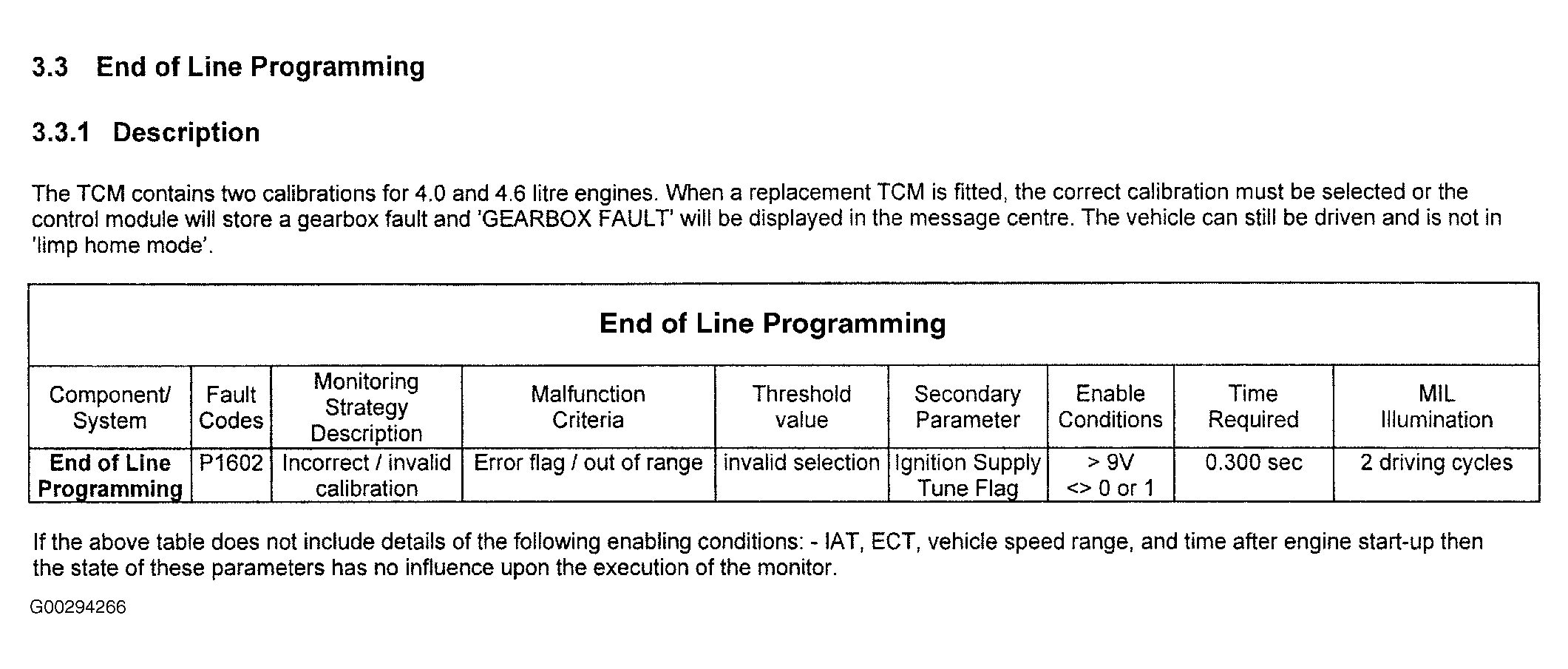

Fig 1: End Of Line Programming Monitoring
G00294266Courtesy of LAND ROVER NORTH AMERICA, INC.
