Vehicle Applications

LT230SE TRANSFER CASE VEHICLE APPLICATIONS

Vehicle

Serial No. Prefixes

Discovery II

41D & 42D

⁽⁾	The serial number is stamped on the left hand side of the transfer box casing below the mainshaft rear bearing housing adjacent to the bottom cover. See Fig 1 .

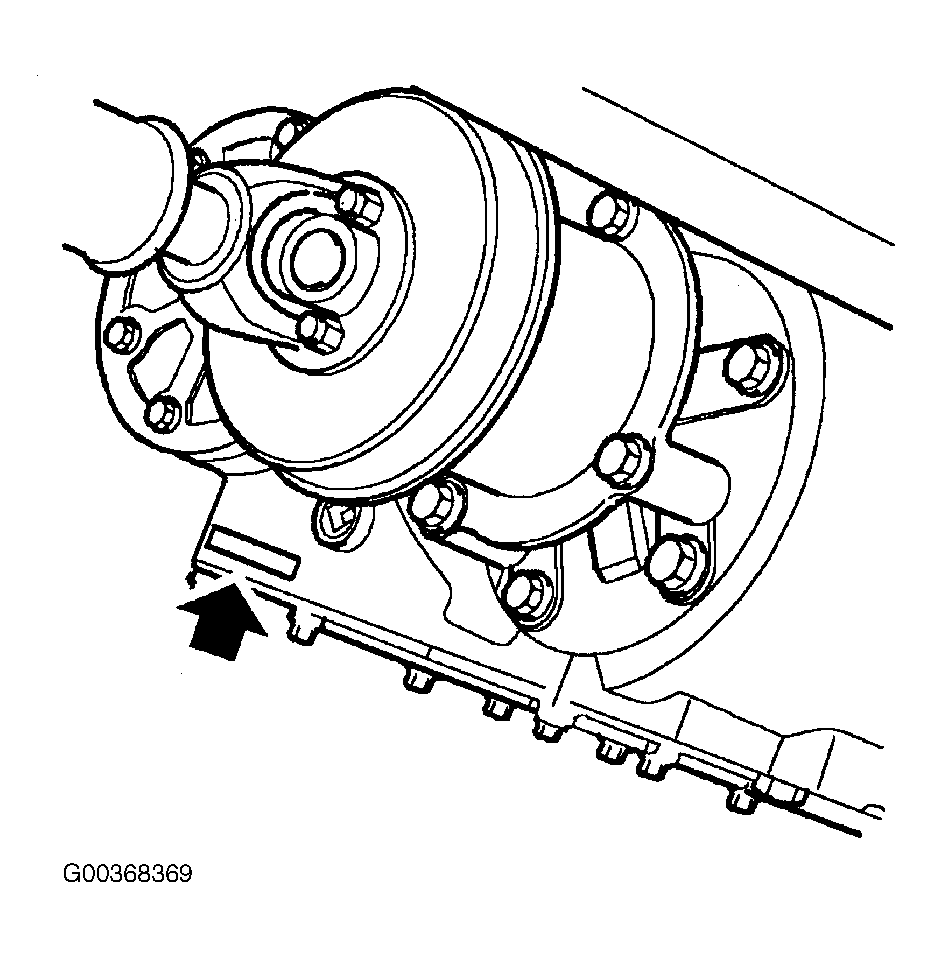

Fig 1: Locating LT230SE Transfer Box Serial Number

Courtesy of LAND ROVER NORTH AMERICA, INC.
