Sensor - Neutral: Removal

  1. Raise vehicle on ramp.
  2. Disconnect multiplug from neutral sensor. See Fig 1 .
  3. Remove sensor and discard sealing washer.

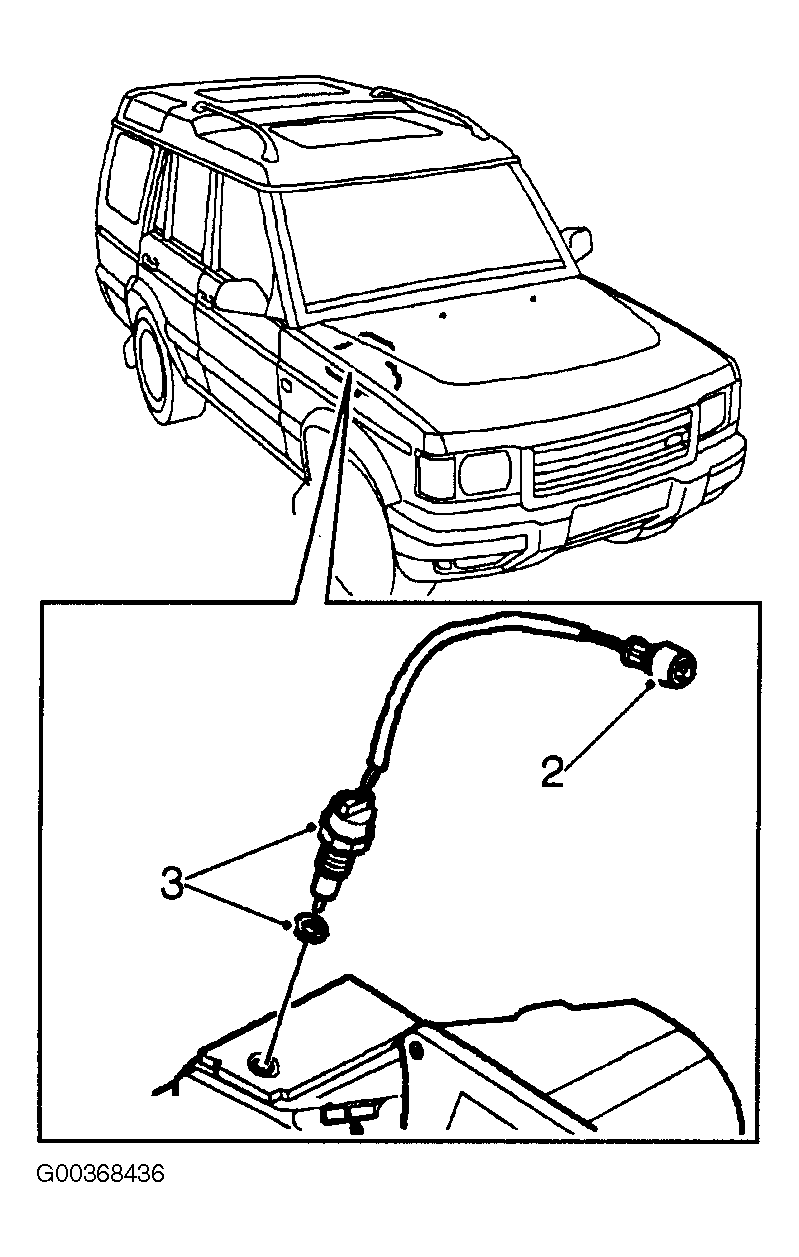

Fig 1: Removing Transfer Box Neutral Sensor
G00368436Courtesy of LAND ROVER NORTH AMERICA, INC.
