Component Locations

For component locations, see Fig 1 -Fig 9

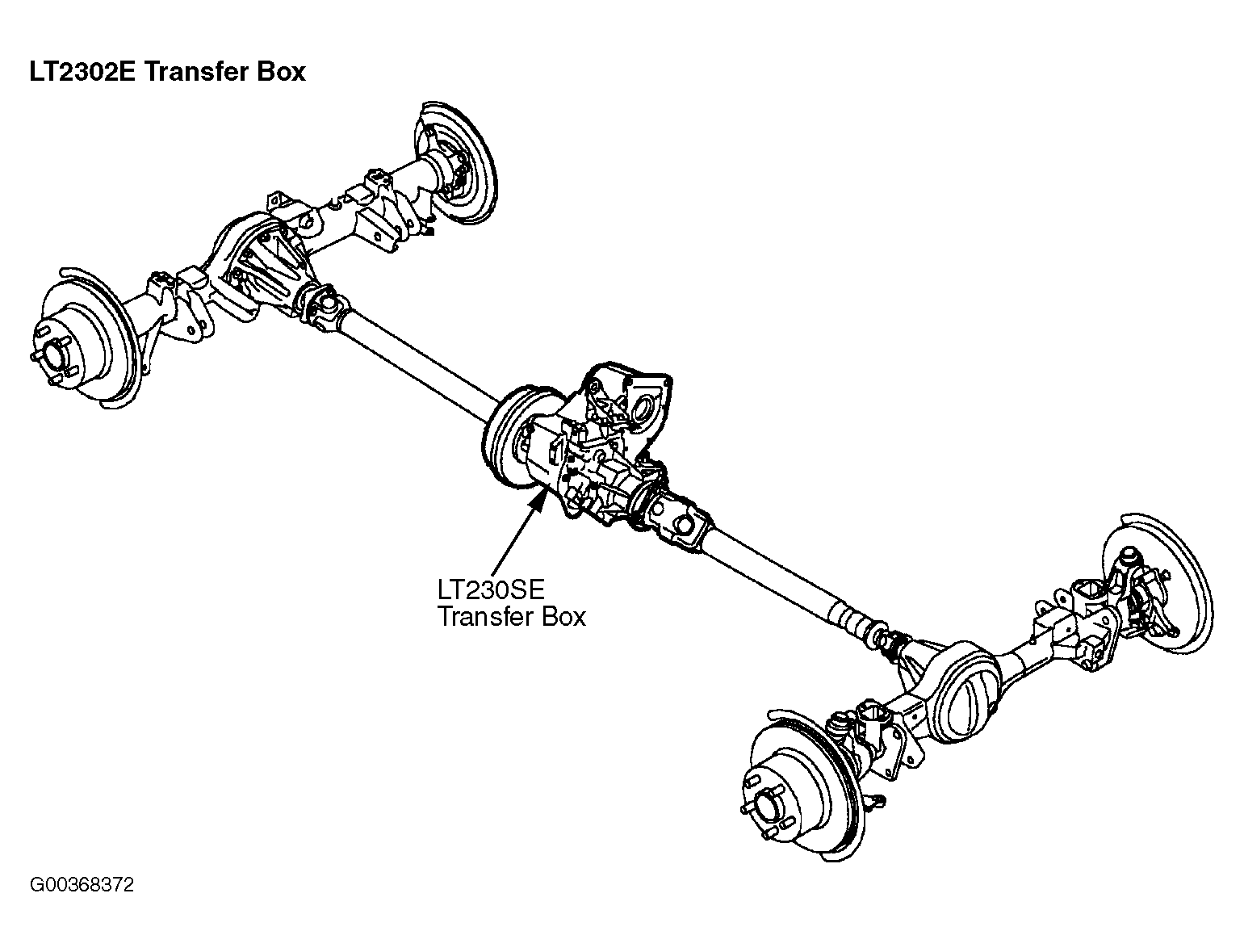

Fig 1: Locating LT230SE Transfer Box
G00368372Courtesy of LAND ROVER NORTH AMERICA, INC.

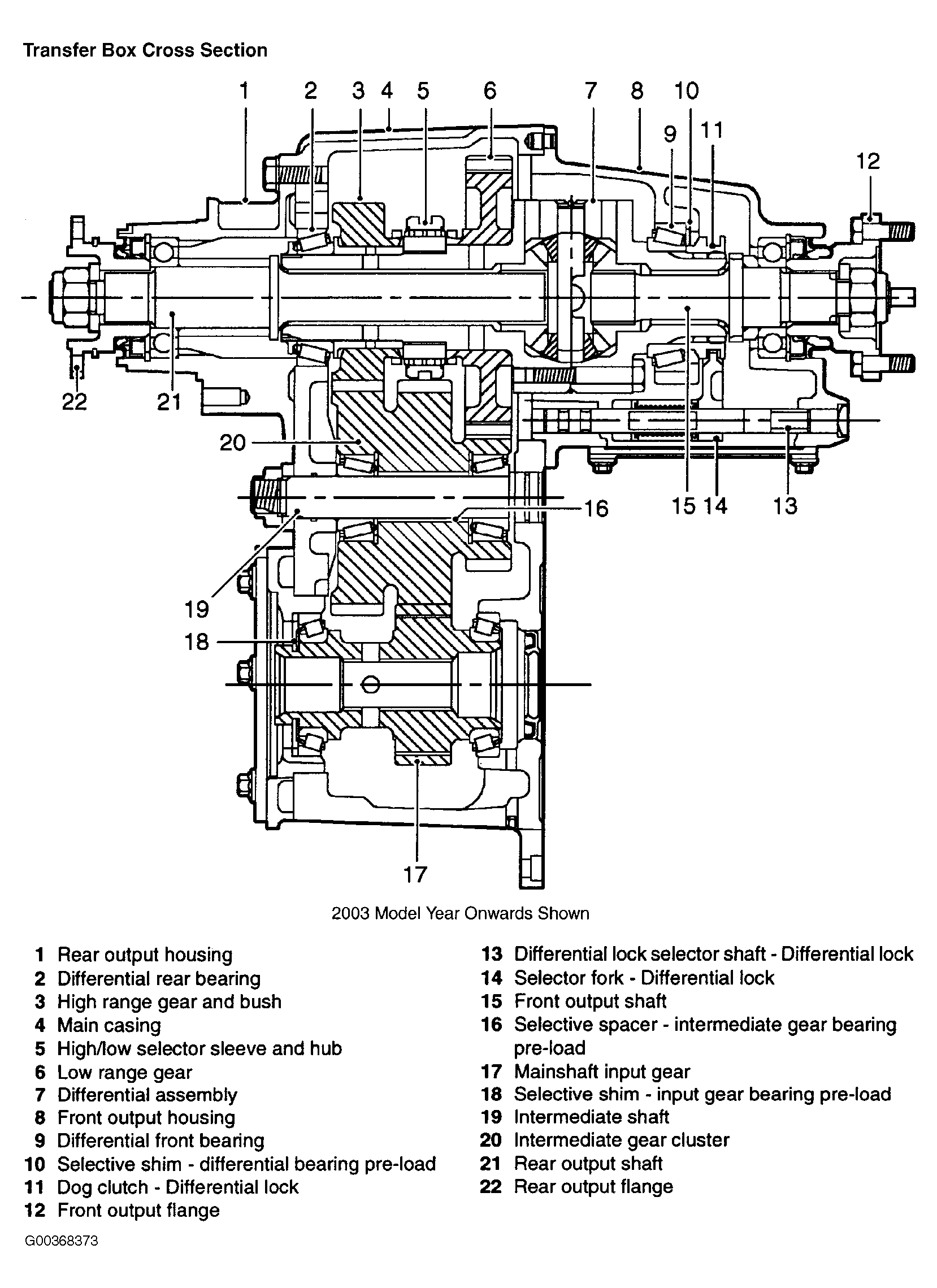

Fig 2: Transfer Box Cross Section (2003 Model Year Onwards Shown; Up To 2003 Model Year Is Similar)
G00368373Courtesy of LAND ROVER NORTH AMERICA, INC.

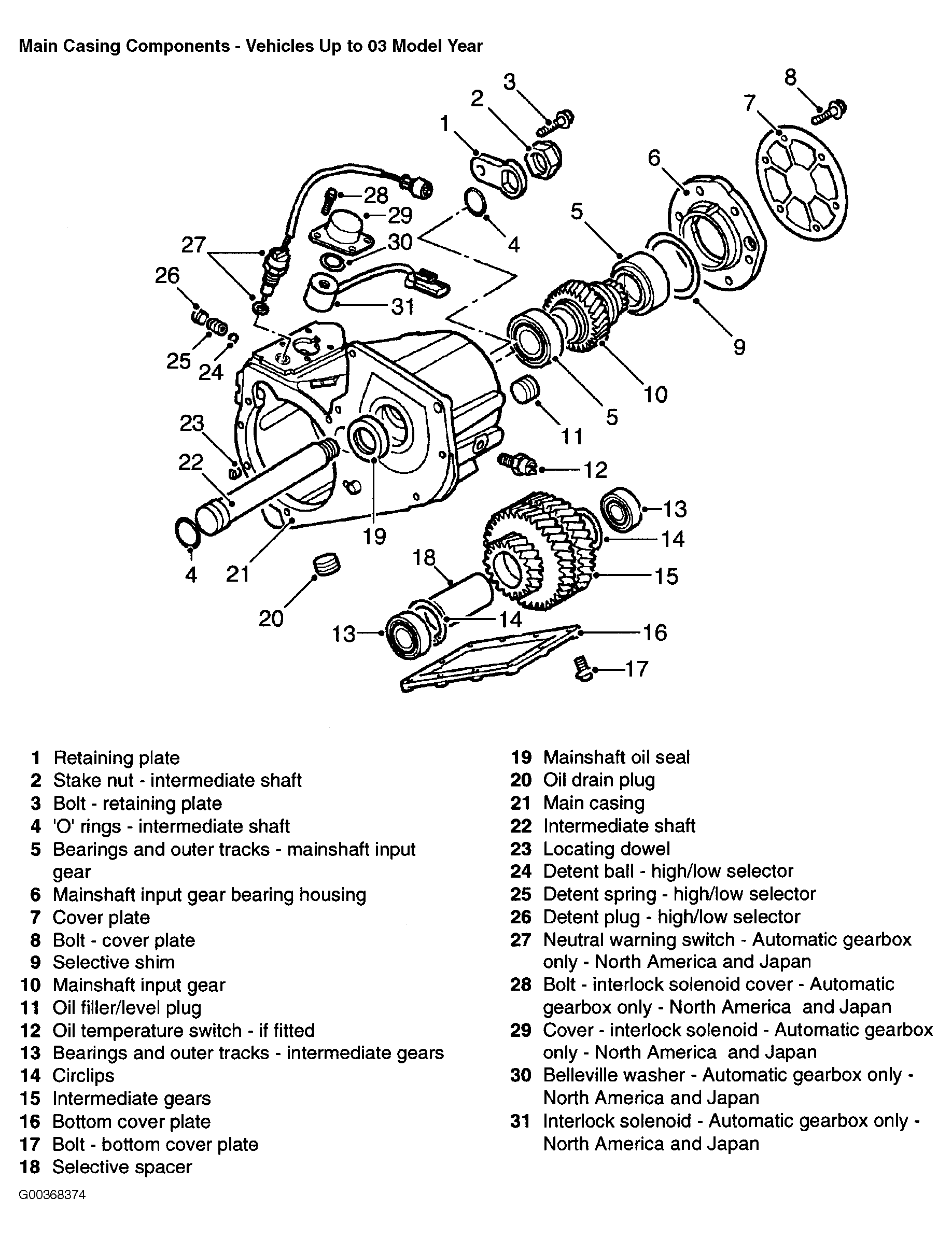

Fig 3: Identifying Main Casing Components (Up To 2003 Model Year)
G00368374Courtesy of LAND ROVER NORTH AMERICA, INC.

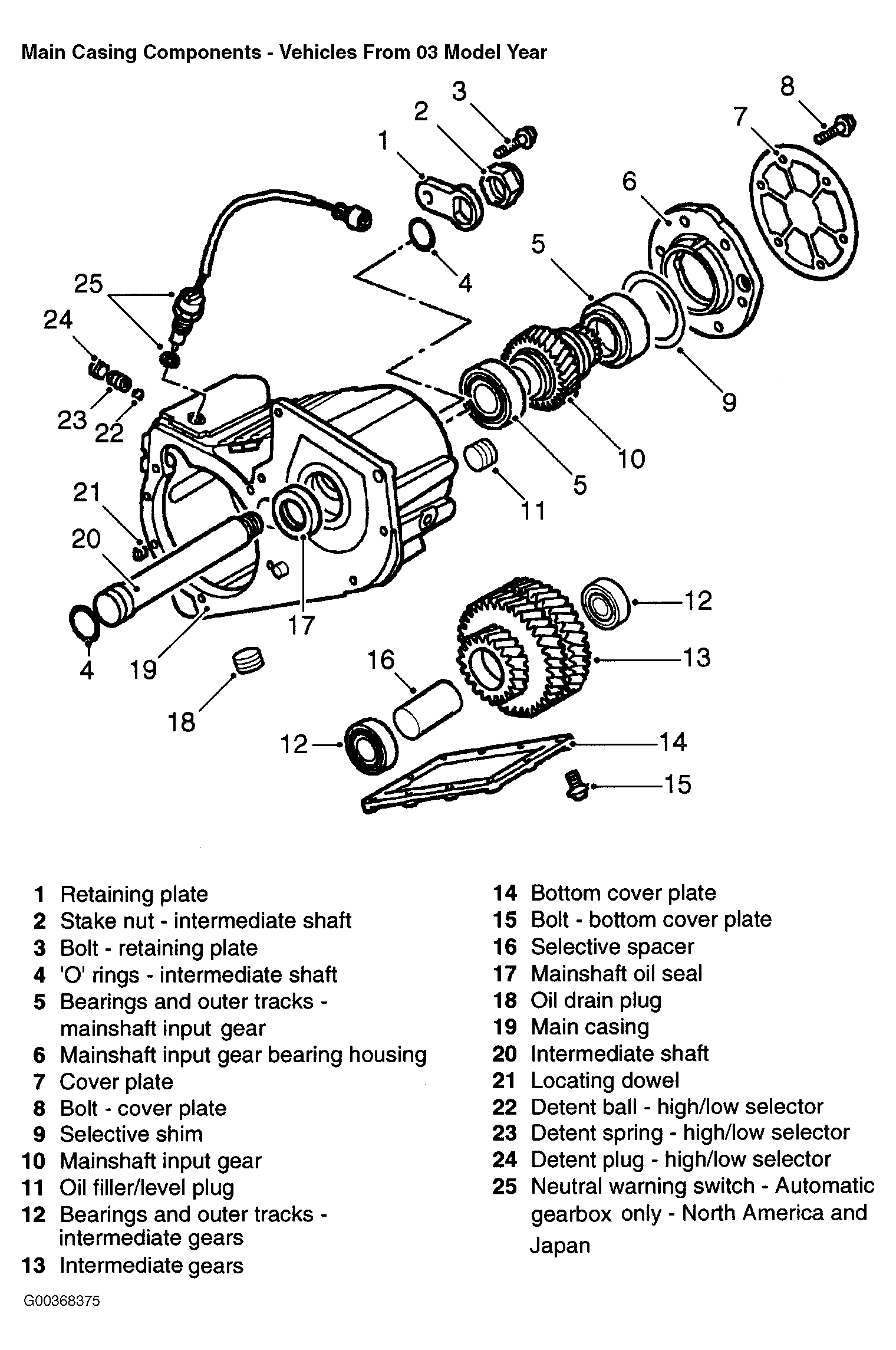

Fig 4: Identifying Main Casing Components (From 2003 Model Year)
G00368375Courtesy of LAND ROVER NORTH AMERICA, INC.

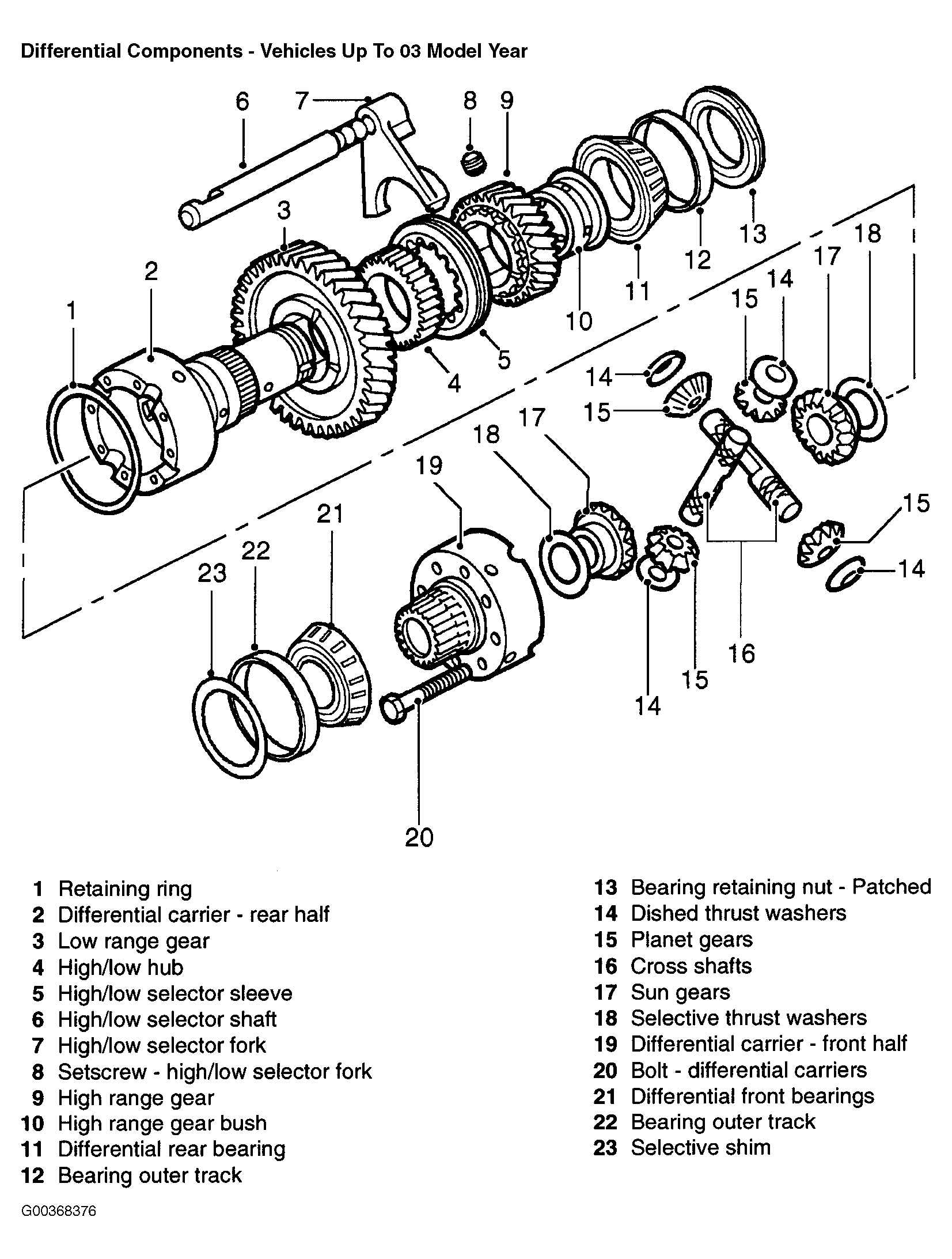

Fig 5: Identifying Differential Components (Up To 2003 Model Year)
G00368376Courtesy of LAND ROVER NORTH AMERICA, INC.

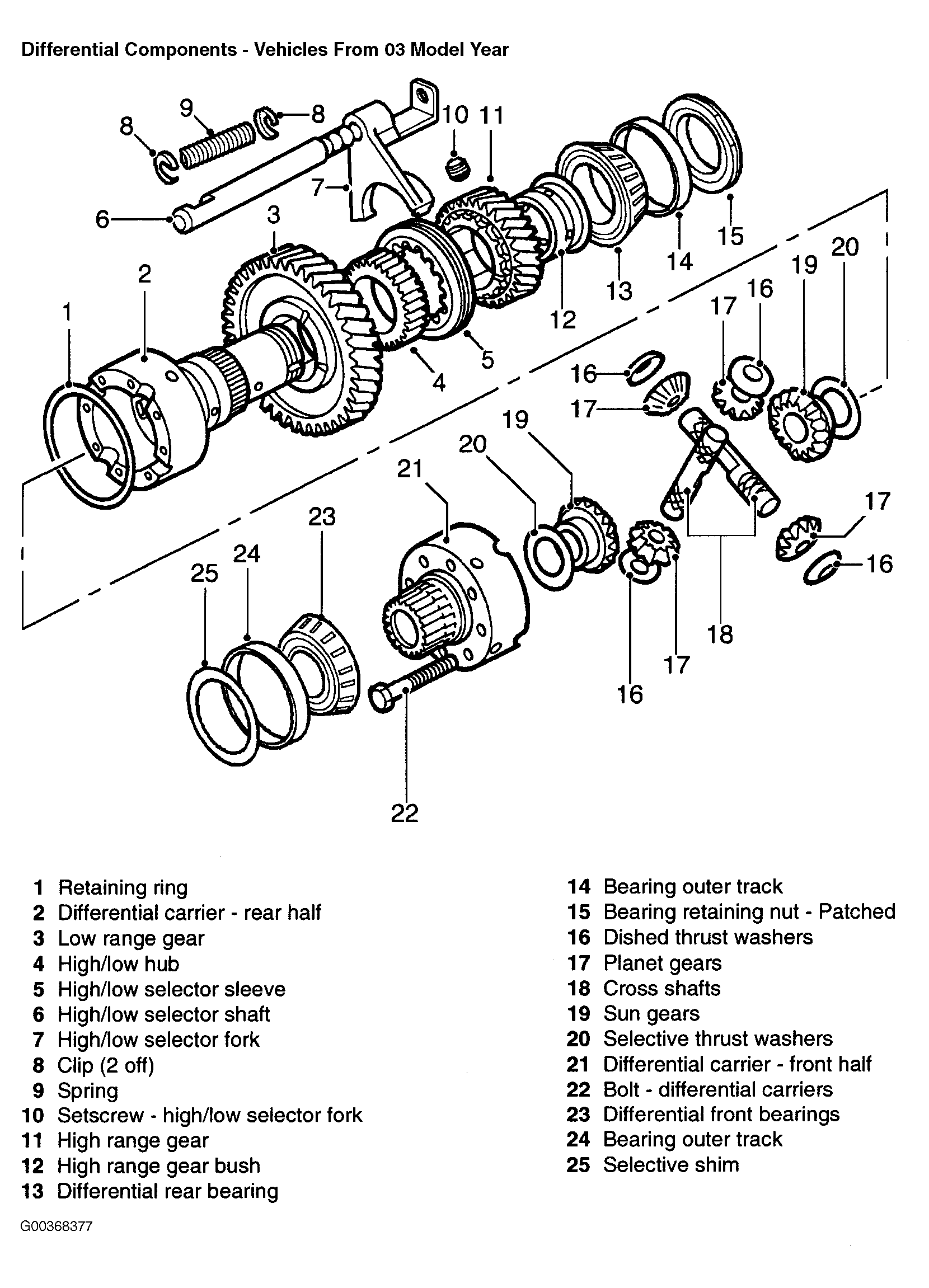

Fig 6: Identifying Differential Components (From 2003 Model Year)
G00368377Courtesy of LAND ROVER NORTH AMERICA, INC.

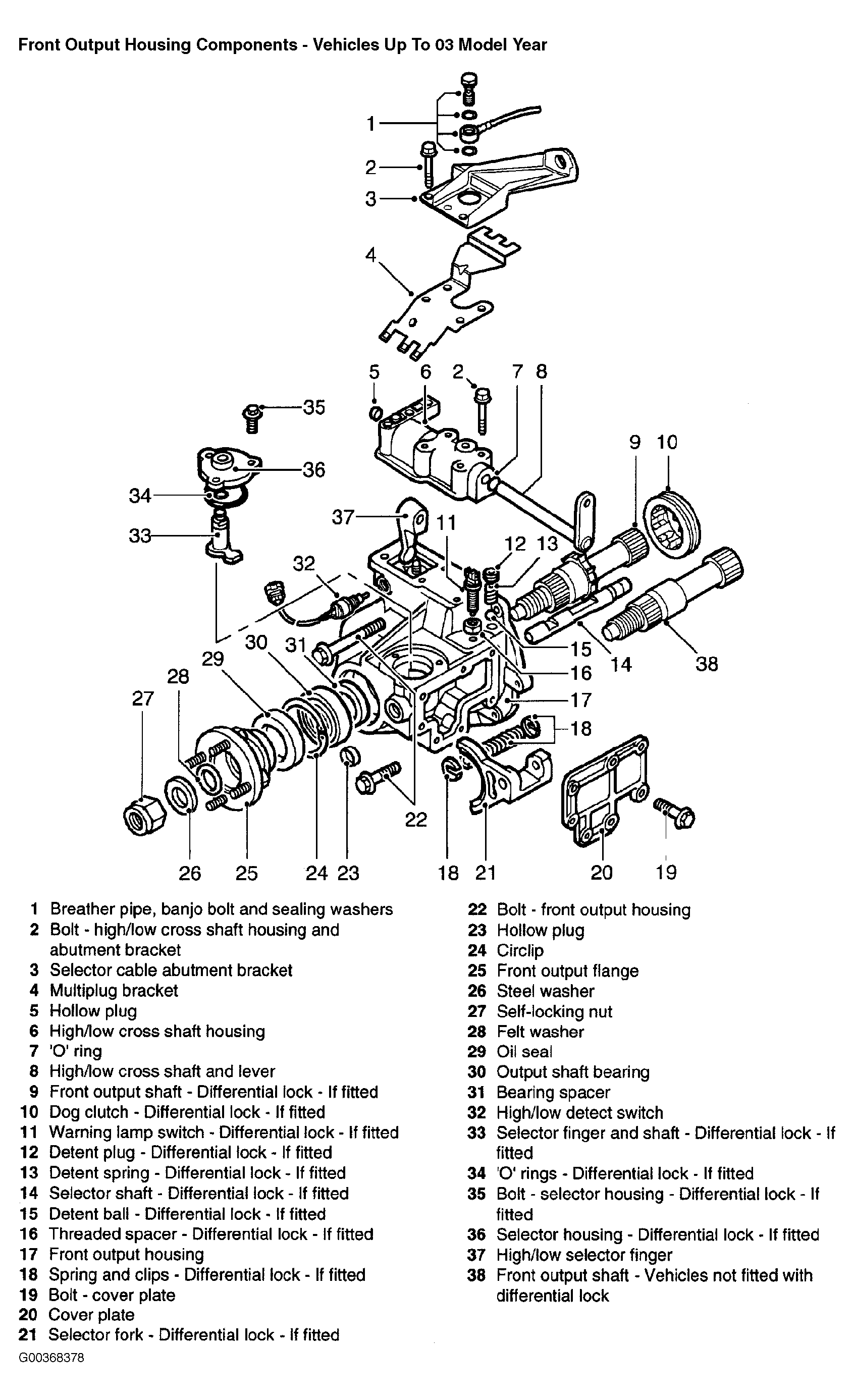

Fig 7: Identifying Front Output Housing Components (Up To 2003 Model Year)
G00368378Courtesy of LAND ROVER NORTH AMERICA, INC.

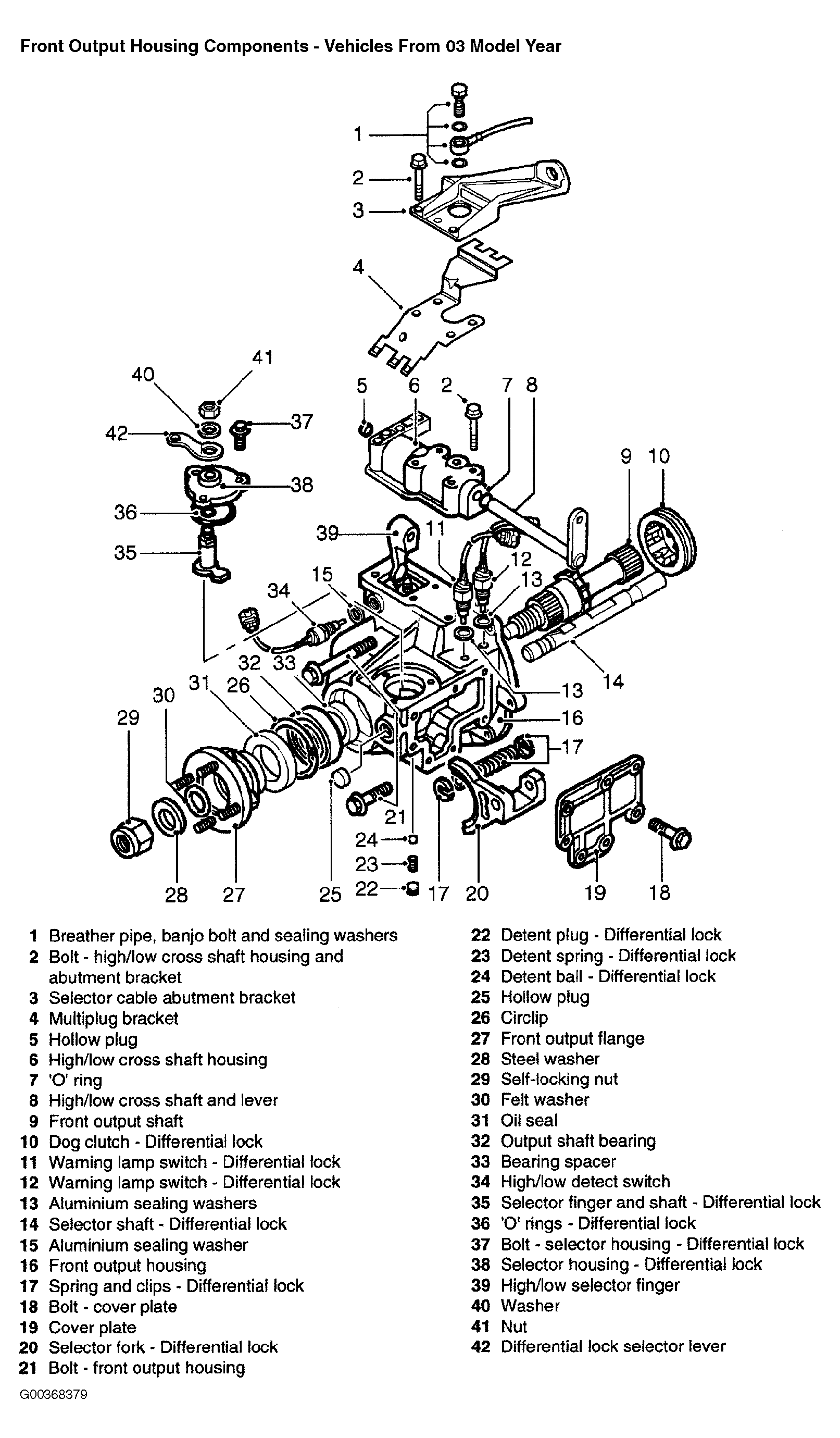

Fig 8: Identifying Front Output Housing Components (From 2003 Model Year)
G00368379Courtesy of LAND ROVER NORTH AMERICA, INC.

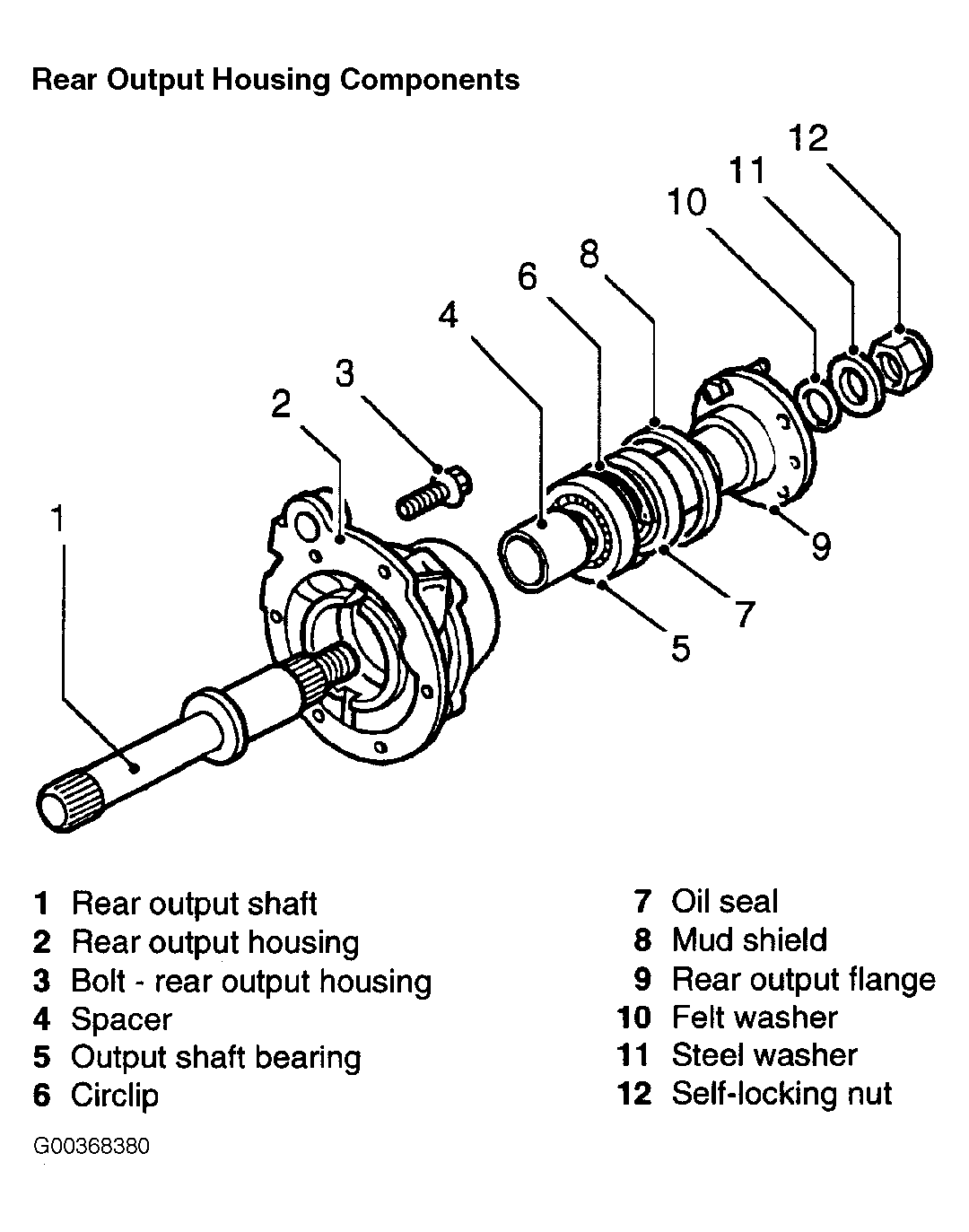

Fig 9: Identifying Rear Output Housing Components
G00368380Courtesy of LAND ROVER NORTH AMERICA, INC.
