Fault Code 17: Can Time-Out Monitoring

NOTE: For circuit reference, see WIRING DIAGRAMS .

This fault code will cause transmission to maintain current gear in low range and limp home mode in high range. It will also cause a shift in pressure to maximum, harsh gear shifts and engagement.

For fault code description and diagnostic test procedure, see Fig 1-Fig 3 . Freeze frame variables are N-MOT, VGT-$X and UBATT. See TEST PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

Fig 1: Fault Code 17 Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

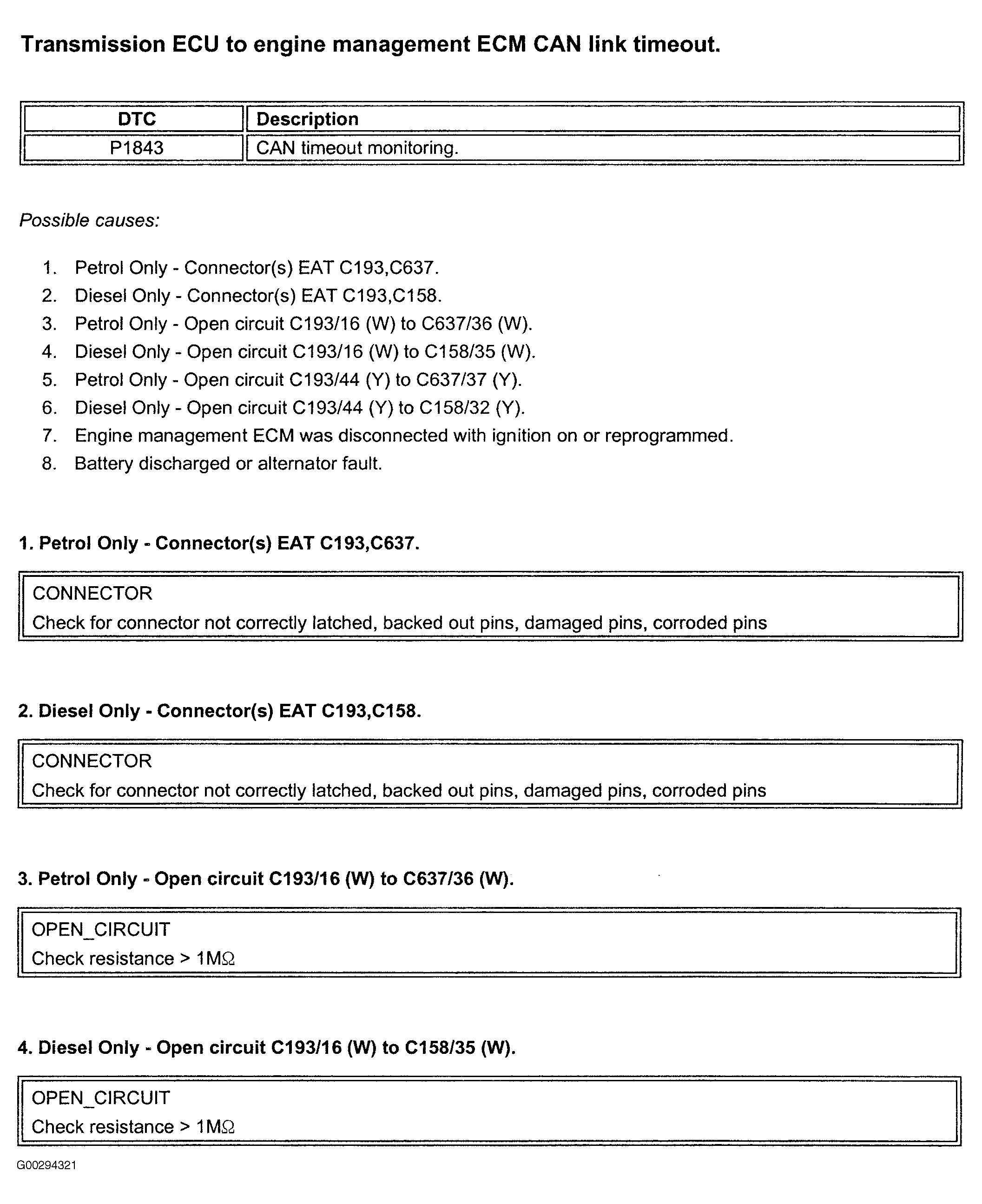

Fig 2: Fault Code 17 Diagnostic Test Procedure (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

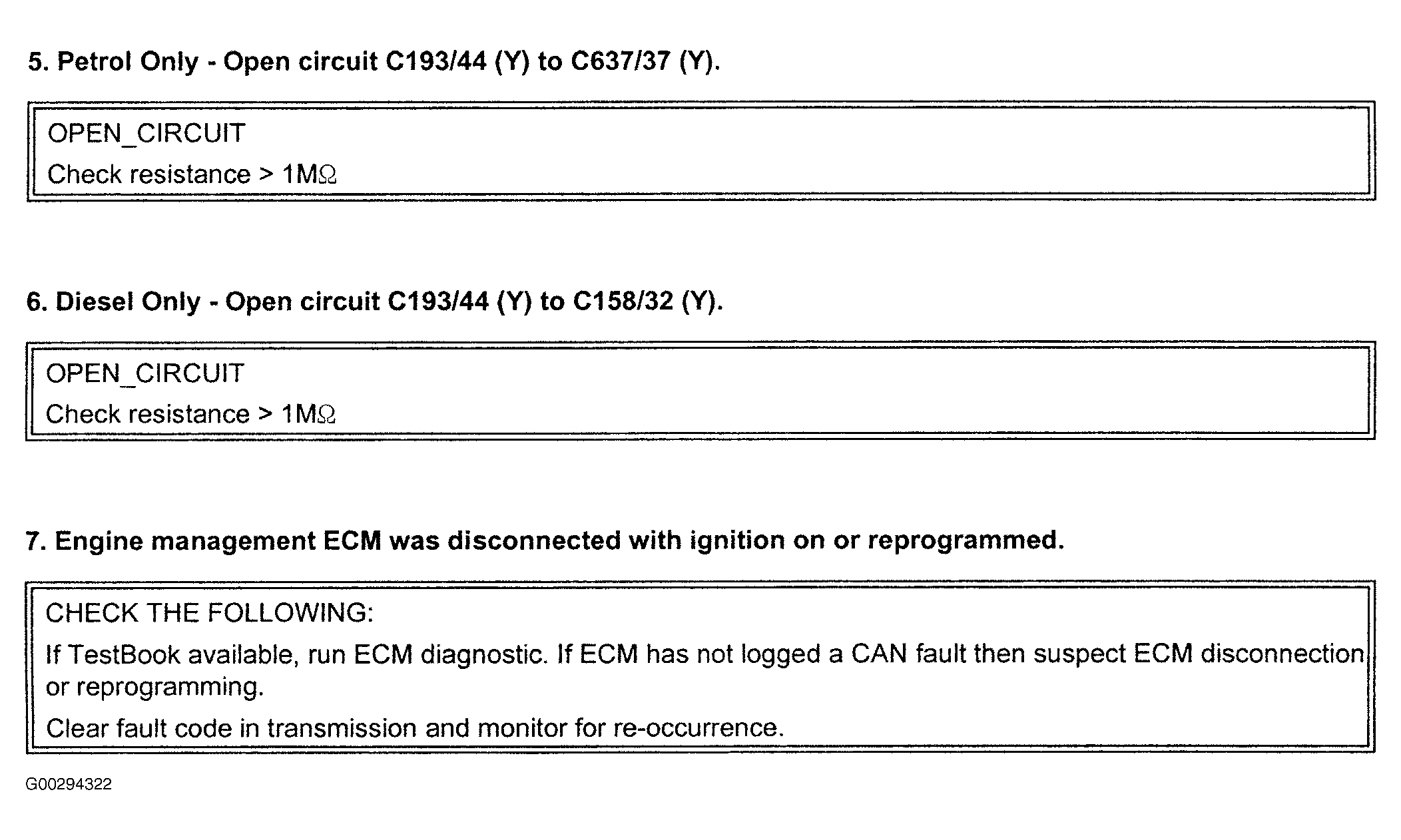

Fig 3: Fault Code 17 Diagnostic Test Procedure (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
