Fault Code 14: Gear Position Switch Monitoring (Permanent)/Gear Position Switch Incorrect Outputs

This fault code will cause transmission to maintain current gear in low range, limp home mode in high range. It will also cause a shift in pressure to maximum, harsh gear shifts and engagement.

For fault code description and diagnostic test procedure, see Fig 1-Fig 8 . Freeze frame variables are N-MOT, YPO-Old and UBATT. See TEST PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

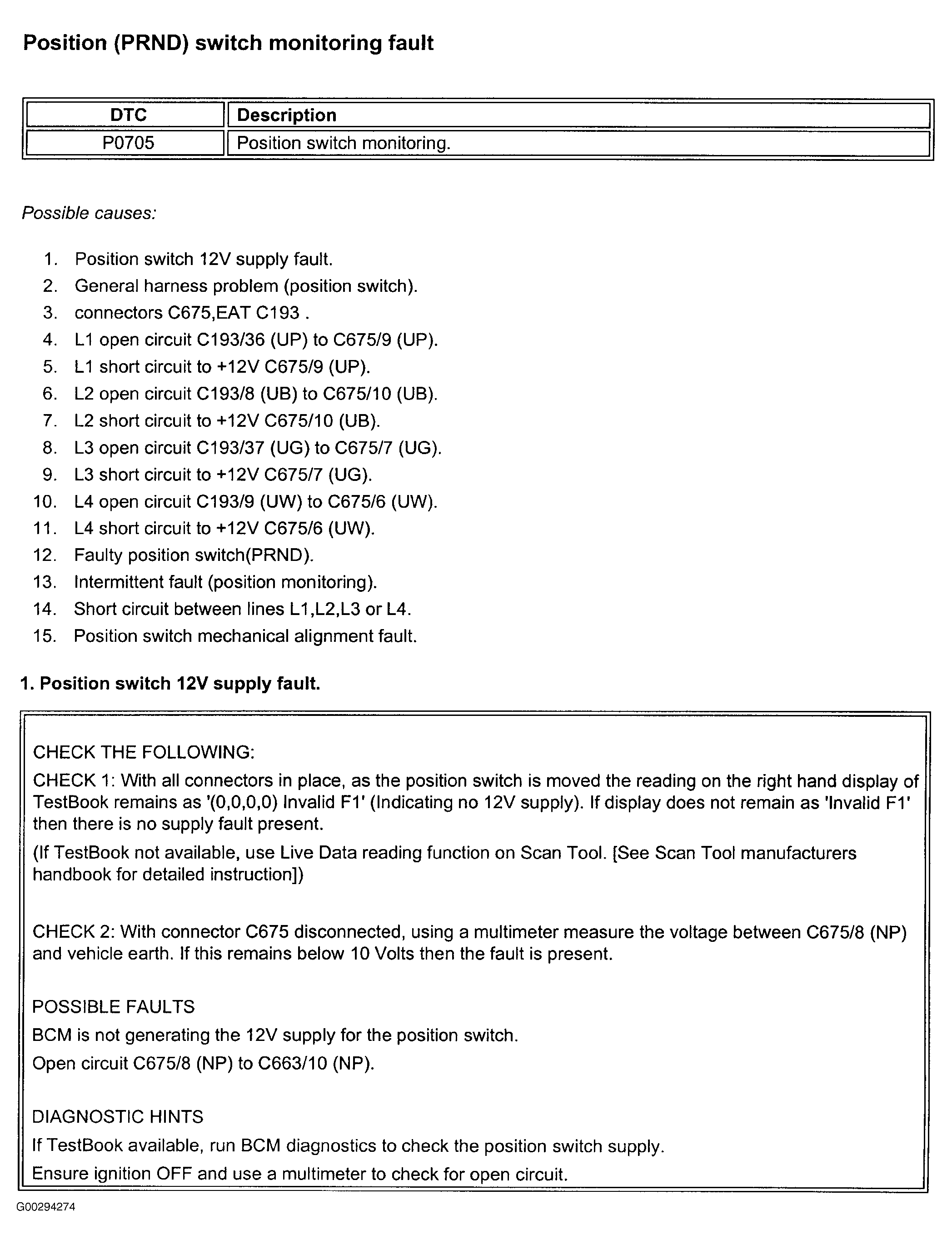

Fig 1: Fault Code 14 Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 2: Fault Code 14 Diagnostic Test Procedure (1 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 3: Fault Code 14 Diagnostic Test Procedure (2 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

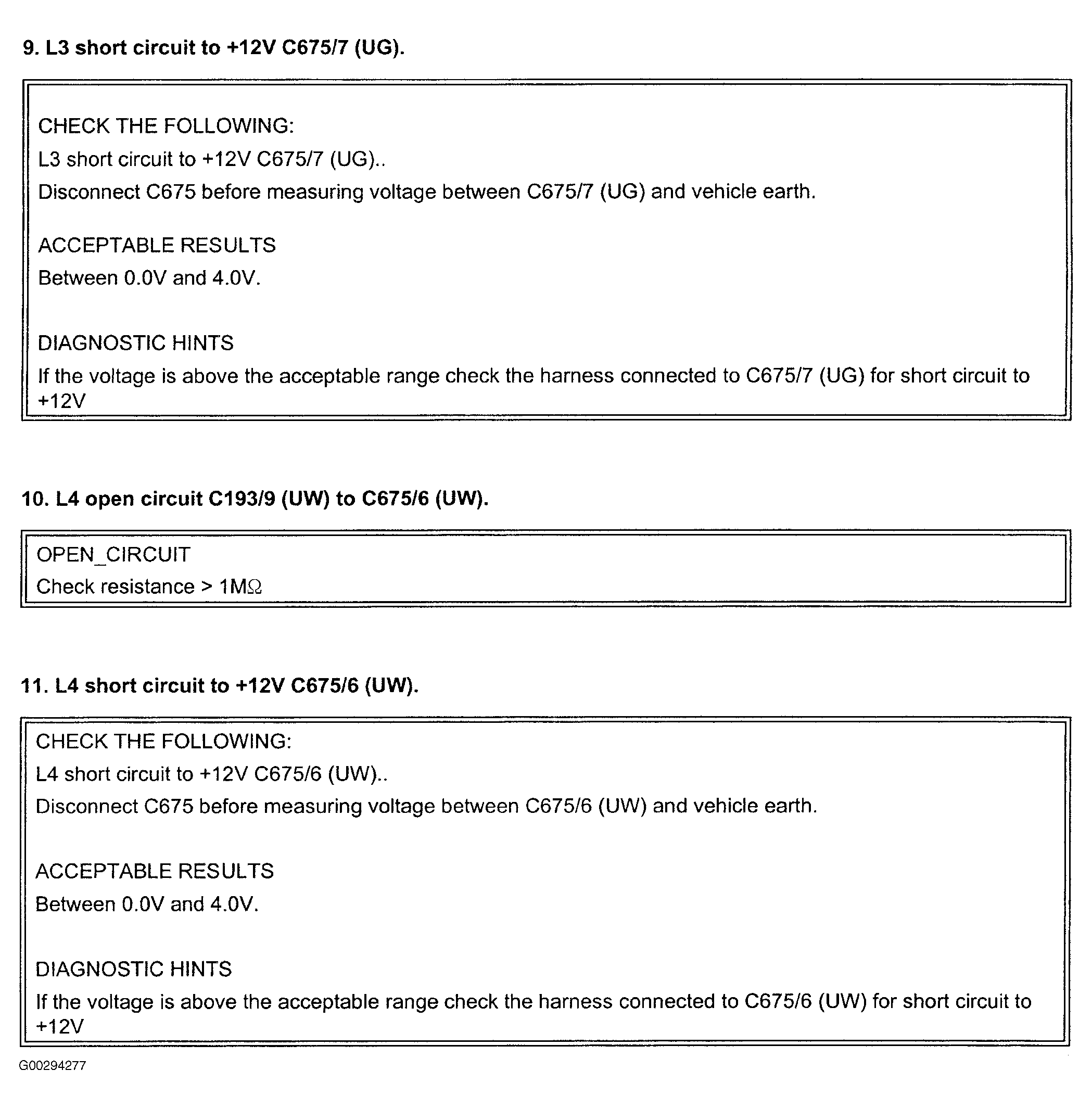

Fig 4: Fault Code 14 Diagnostic Test Procedure (3 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

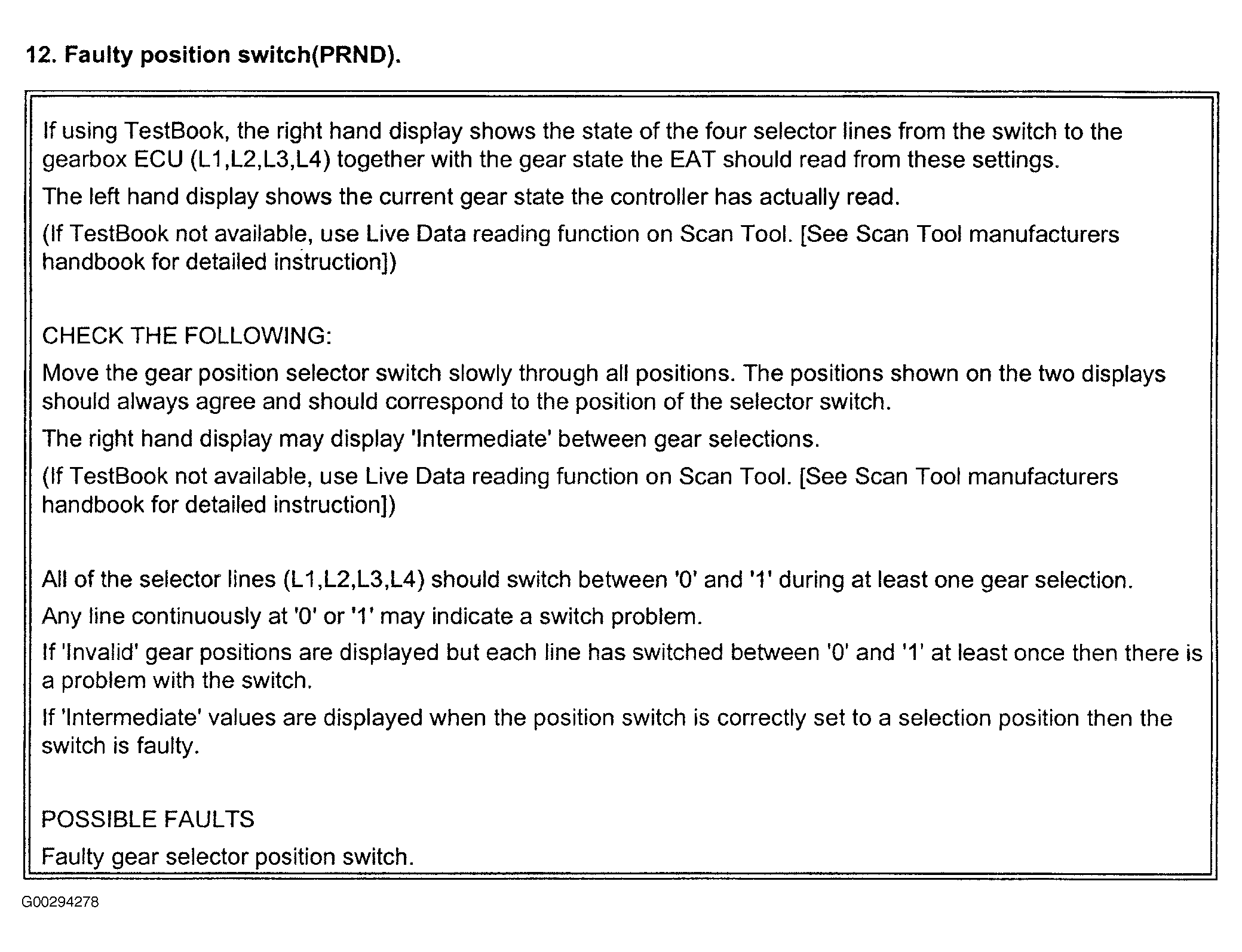

Fig 5: Fault Code 14 Diagnostic Test Procedure (4 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

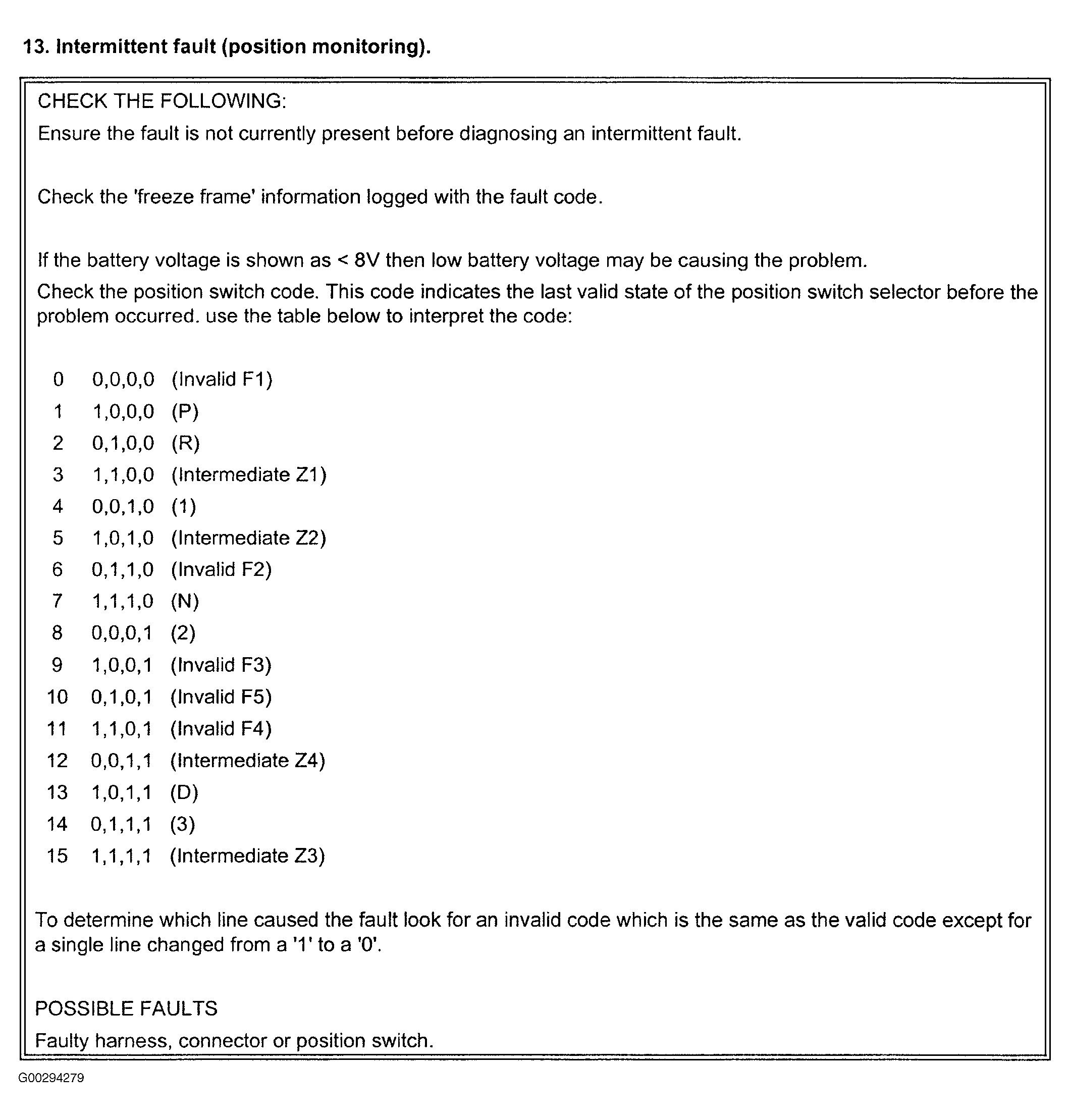

Fig 6: Fault Code 14 Diagnostic Test Procedure (5 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

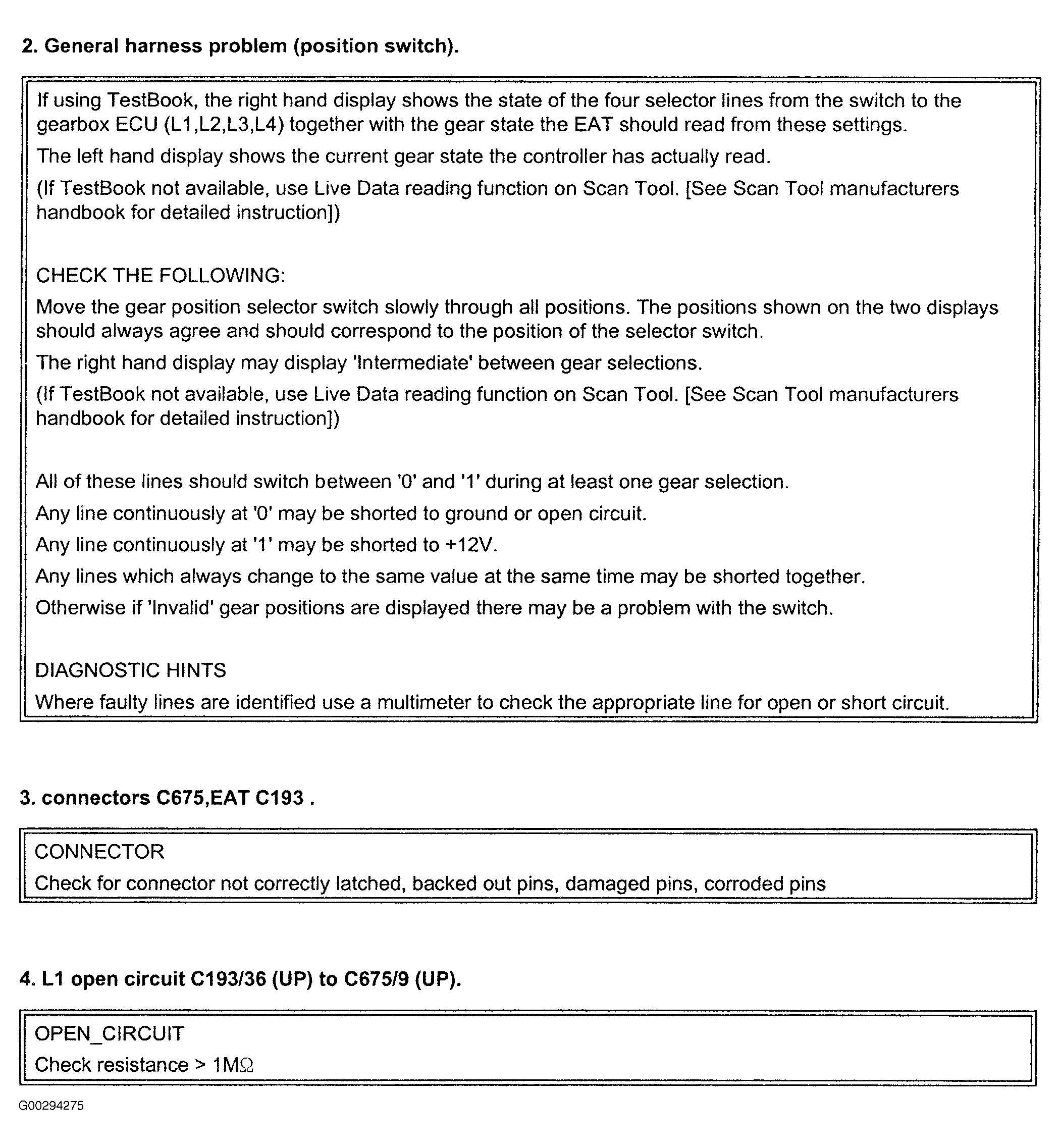

Fig 7: Fault Code 14 Diagnostic Test Procedure (6 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

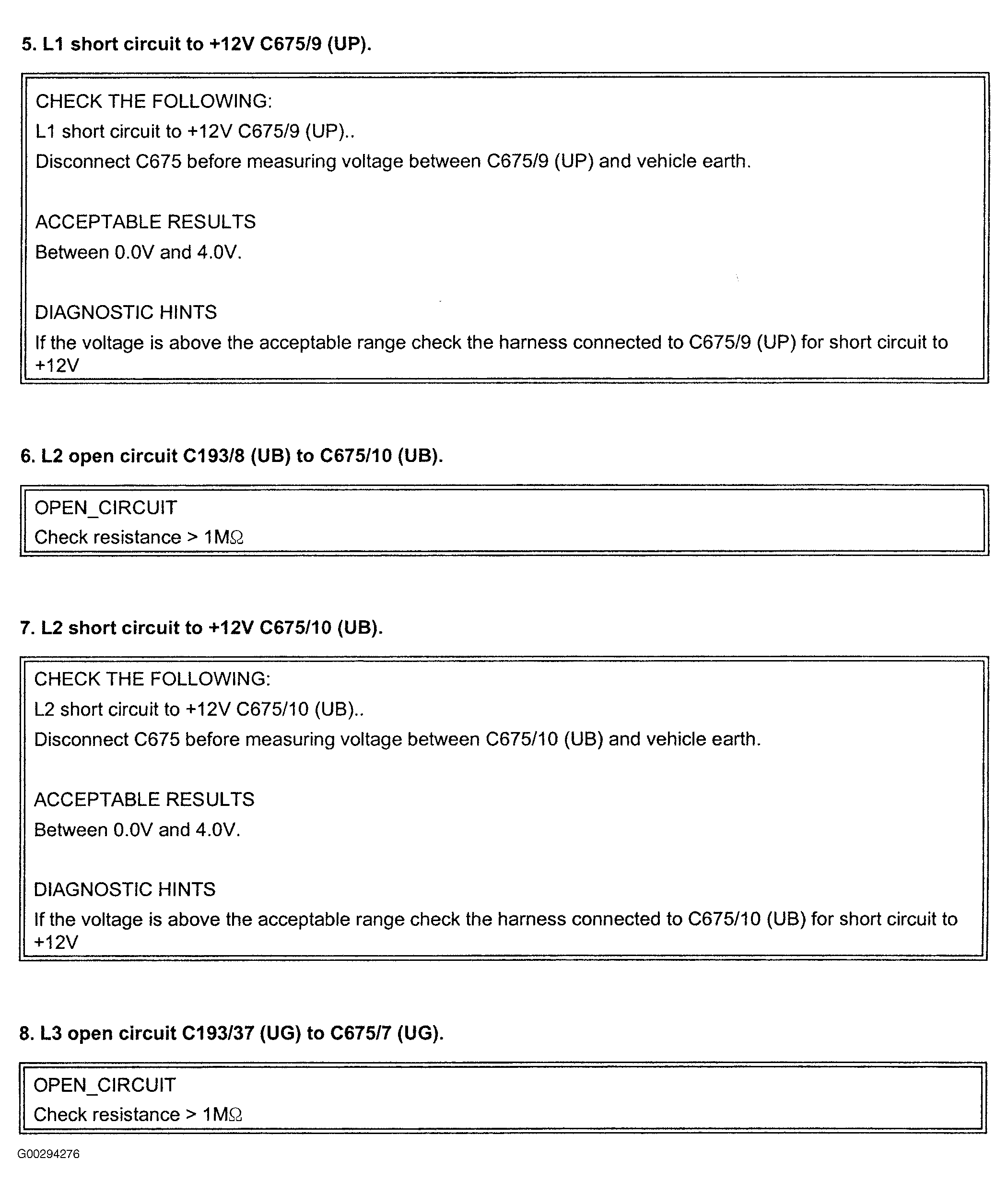

Fig 8: Fault Code 14 Diagnostic Test Procedure (7 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.
