Automatic Transmission: Notes

The automatic transmission consists of a torque converter housing, an intermediate plate, a automatic transmission housing and a rear extension housing, bolted together in series. See Fig 1. The rear of the automatic transmission is supported by a rubber mounting installed between a mounting bracket on the automatic transmission and the left chassis rail. See Fig 2. A heat shield is installed on the mounting to protect it from the exhaust.

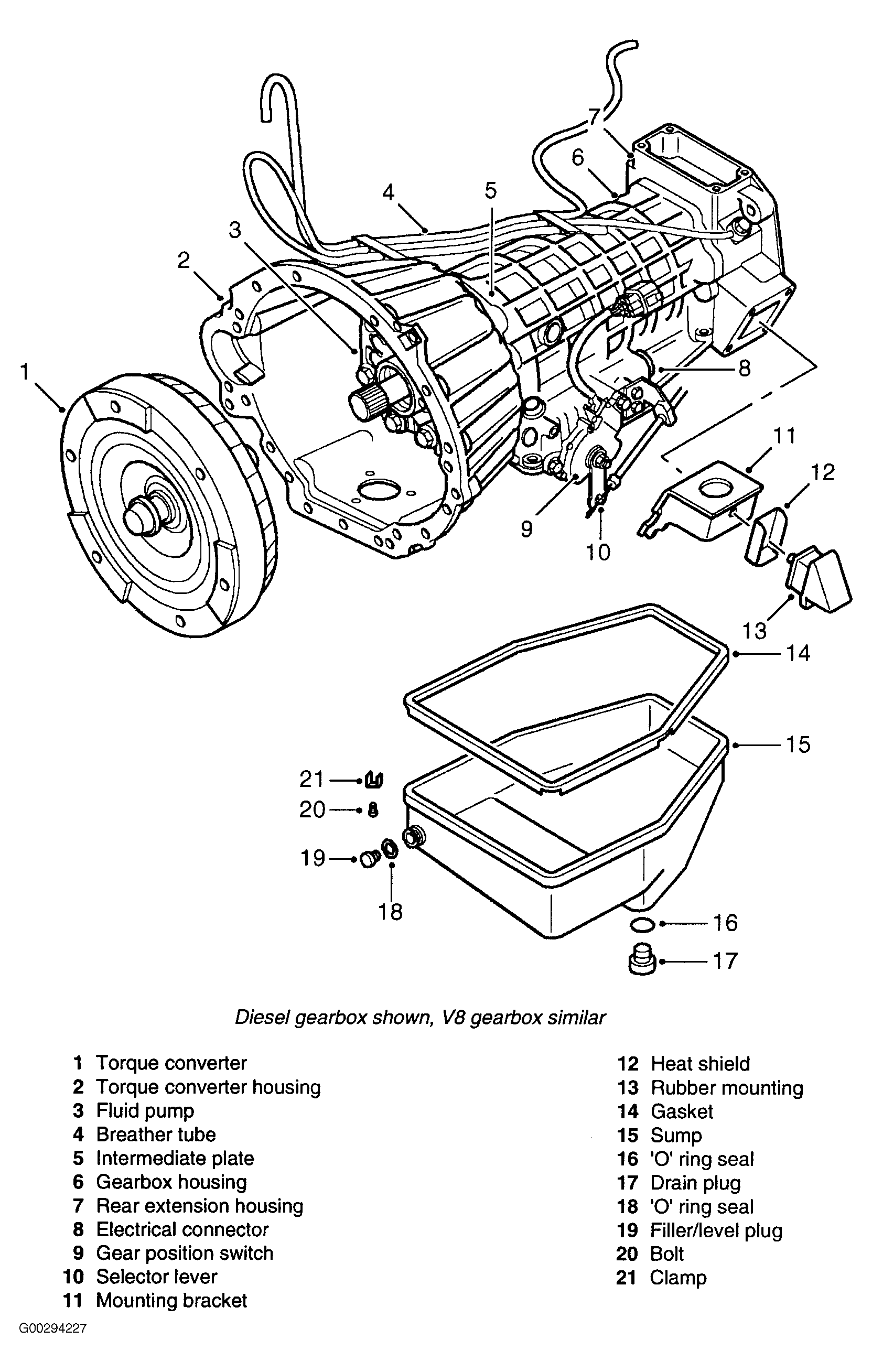

Fig 1: Identifying Automatic Transmission Components (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

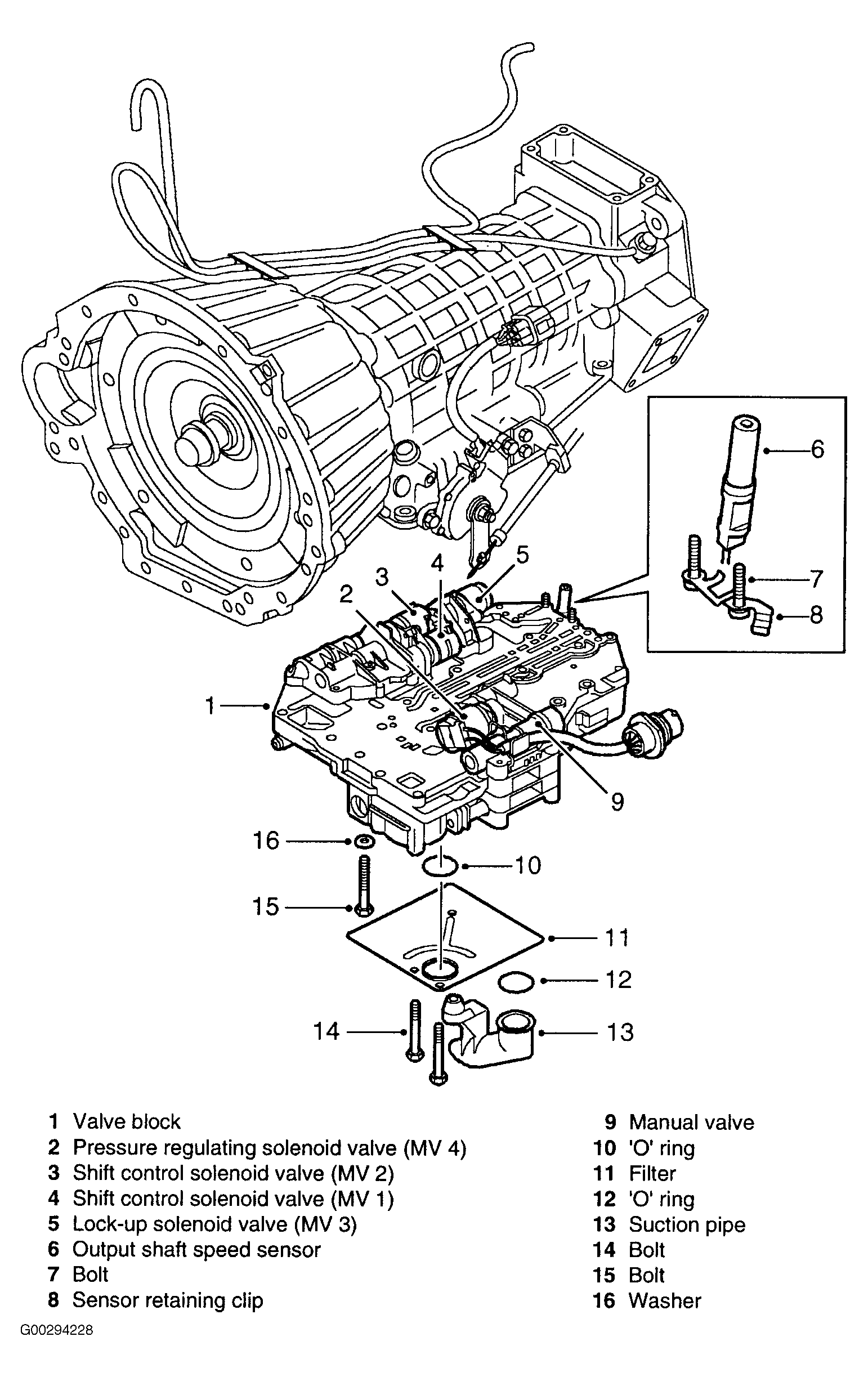

Fig 2: Identifying Automatic Transmission Components (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
