Connector Identification

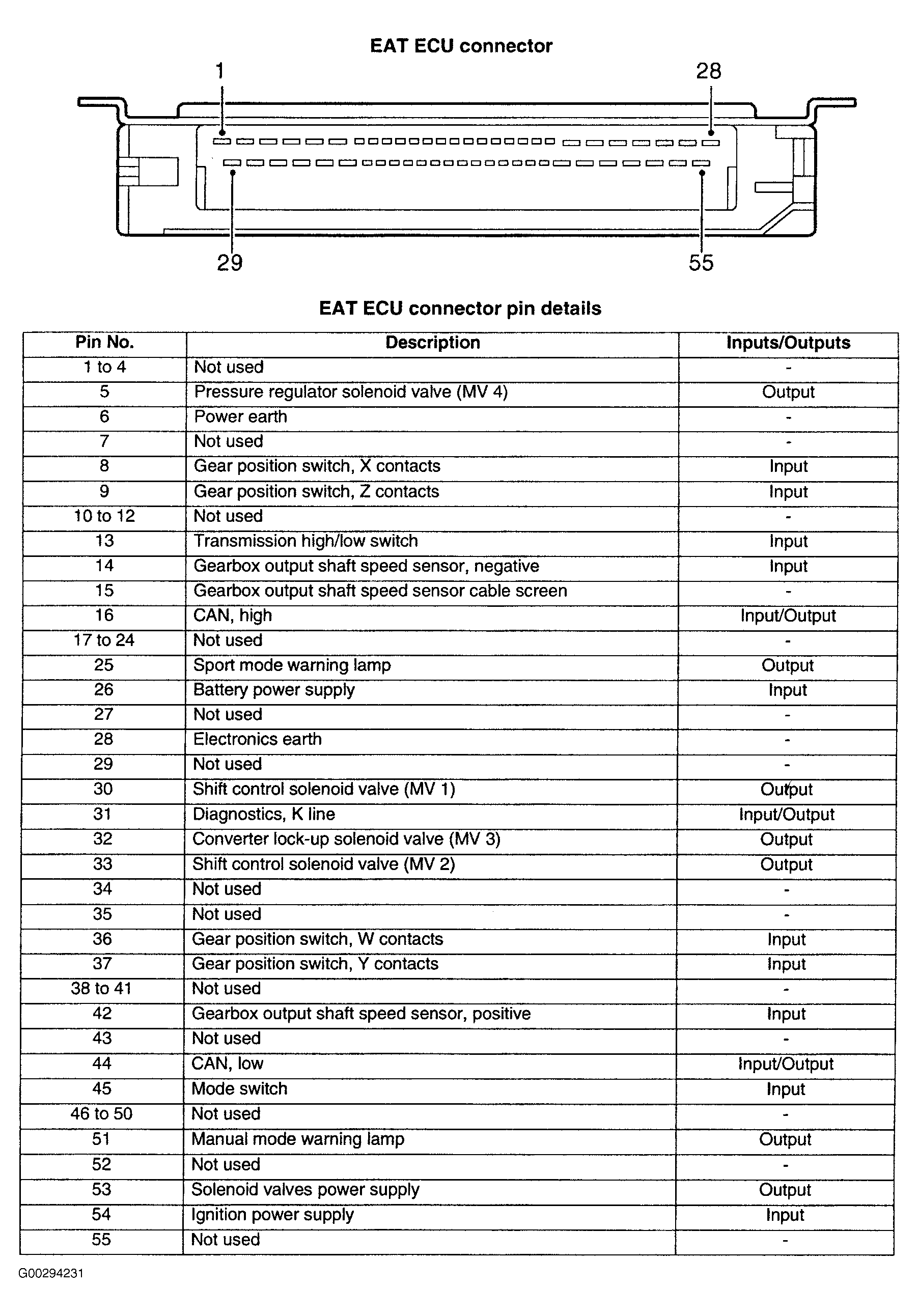

Fig 1: Identifying Electronic Automatic Transmission Electronic Control Unit Harness Connector Terminals
G00294231Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 2: Identifying Gear Position Switch Harness Connector Terminals
G00294209Courtesy of LAND ROVER NORTH AMERICA, INC.
