Checking Fluid Level
- Ensure that gearbox is cool. Apply handbrake and securely chock front and rear wheels.
- Place a suitable container beneath gearbox.
- Clean area around oil filler/level and drain plugs.

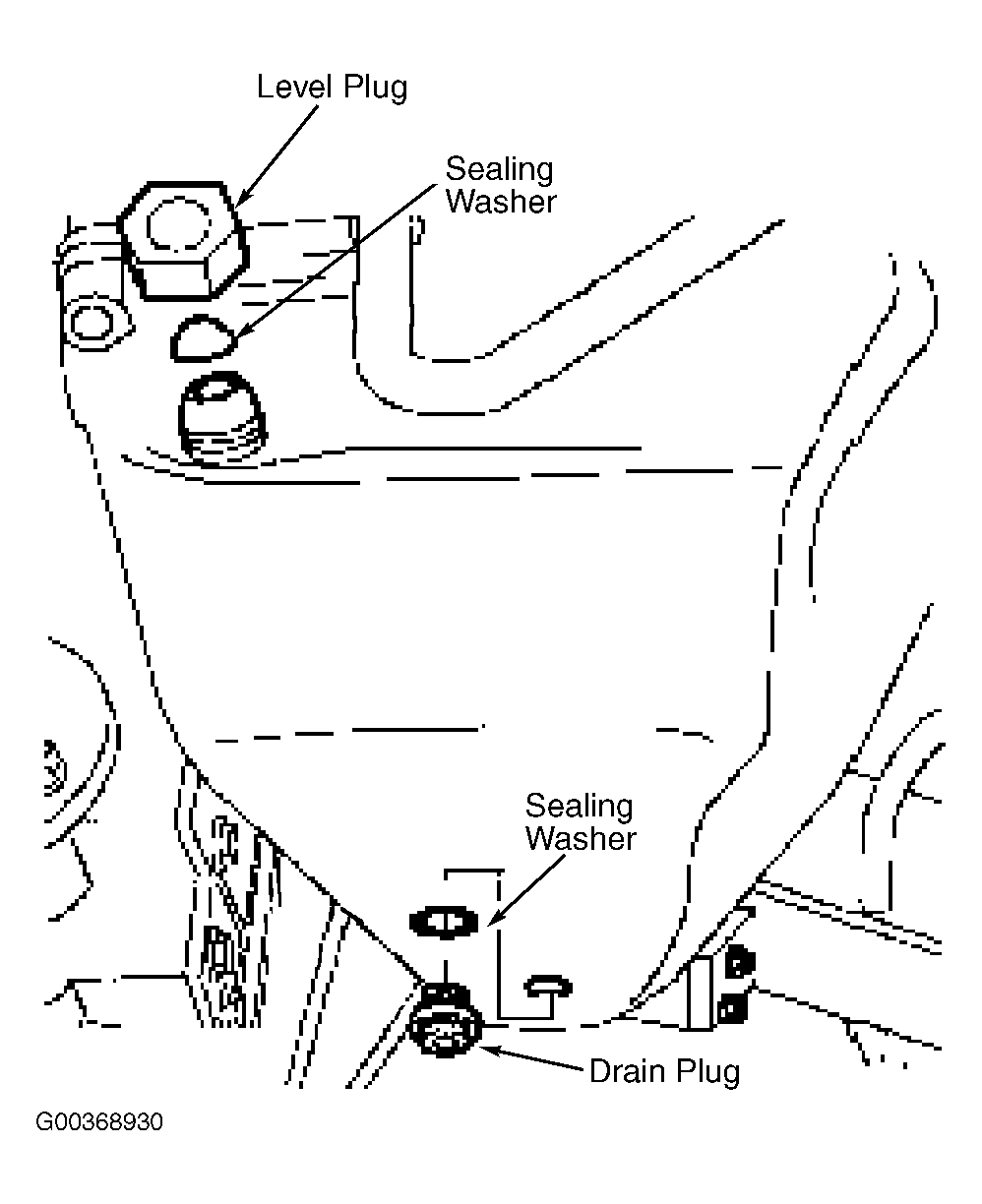

- Remove oil drain plug, remove and discard sealing washer. See Figure.
- Select Park.
- Ensure handbrake is applied.
- Start engine and allow it to idle.
- Apply footbrake.
- Move selector lever through all gear positions, while continuing to fill the gearbox. Select Park.
- With engine idling, gearbox should overflow through drain plug by about 2 mm bead of oil running out.
- Fit new sealing washer to automatic gearbox filler/level plug, fit plug and tighten to 30 Nm (22 lbf.ft).
