Throttle Cable: Adjust

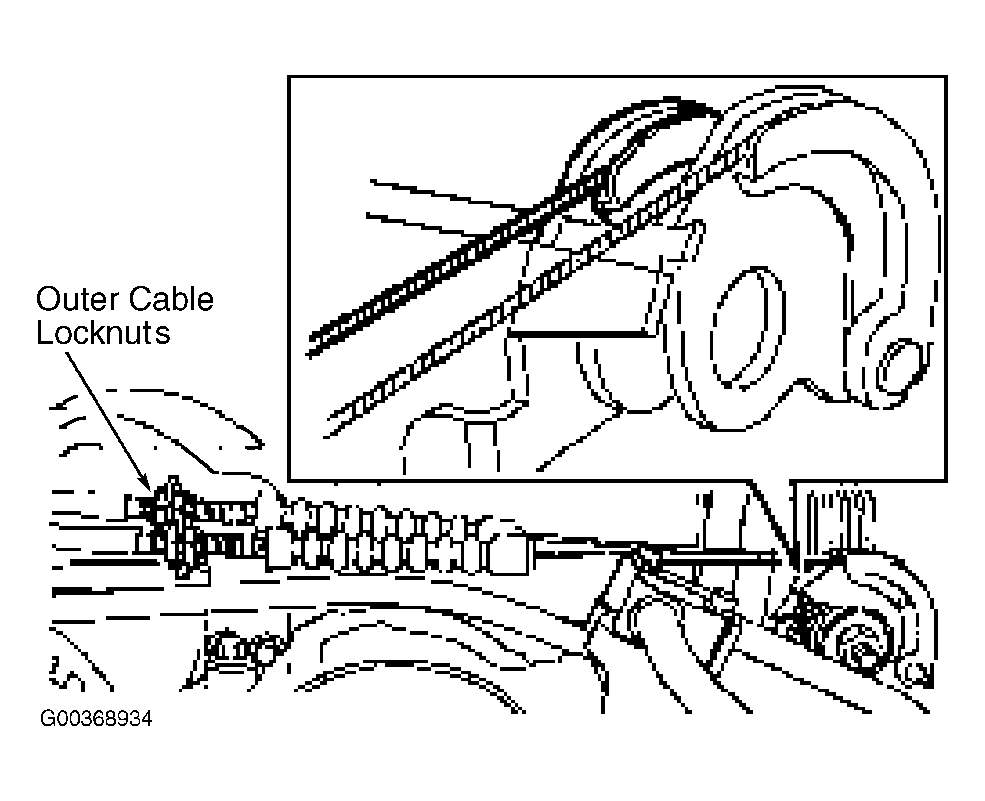

- Loosen outer cable locknuts. See Fig 1.
- Adjust the rear locknut until it is in contact with the back of the abutment bracket, and the gap between the throttle and the inner driven lever is 0.5 mm +/- 0.4 mm (0.020 +/- 0.015 in).
- Tighten cable front nut to lock cable to abutment bracket.
