Passenger Compartment Fuse Box

NOTE: Passenger compartment fuse box is located below and to the side of the steering column. Remove cover using a coin or small screwdriver and turning 90 degrees. See Fig 1.

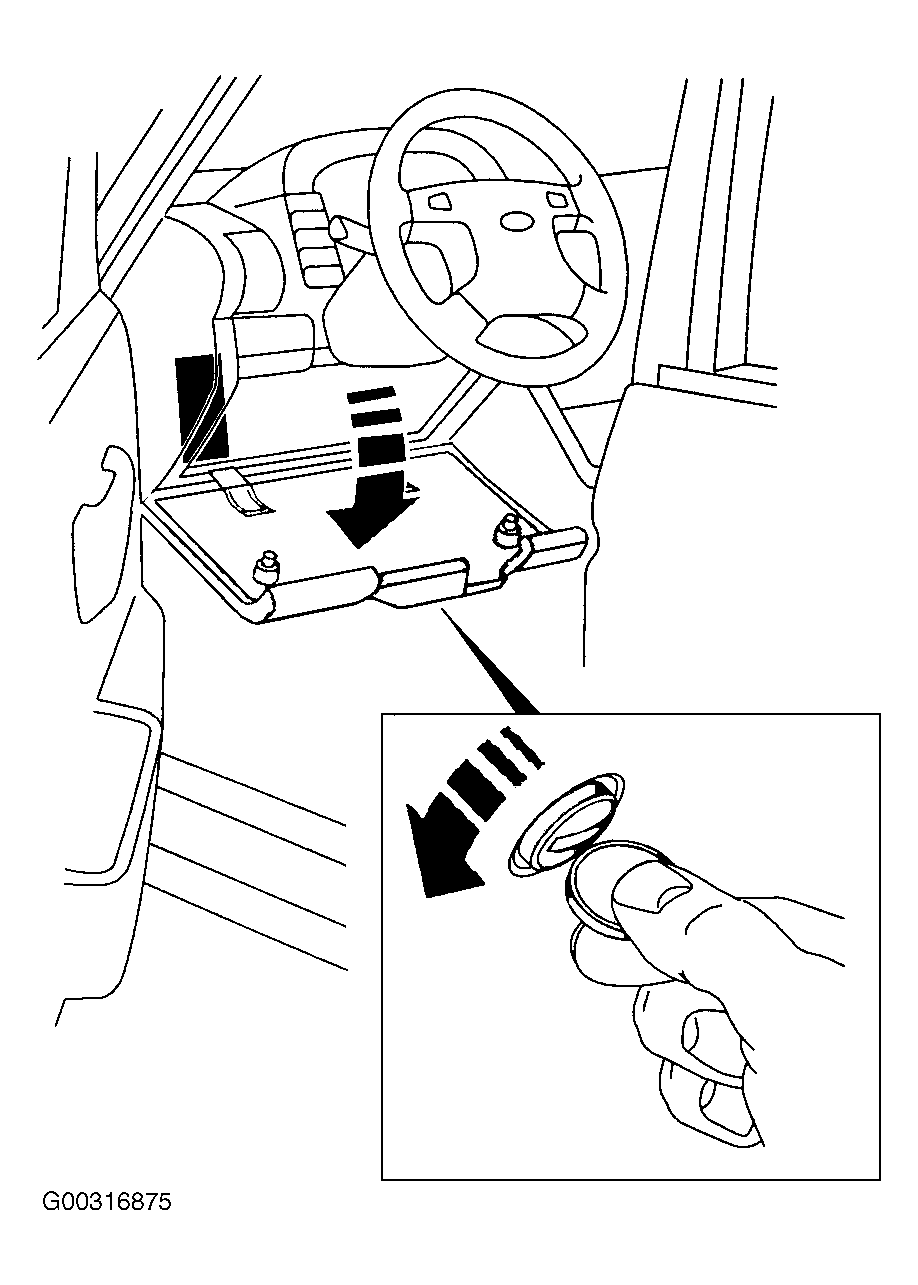

Fig 1: Locating Passenger Compartment Fuse Box

Courtesy of LAND ROVER NORTH AMERICA, INC.

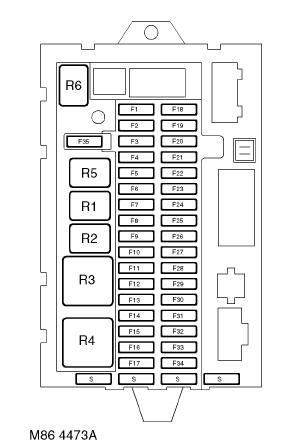

Fig 2: Passenger Compartment Fuse Box Identification

Courtesy of LAND ROVER NORTH AMERICA, INC.

Passenger Compartment Fuse Relays

Relay	System
1	LH Indicators
2	RH Indicators
3	Rear Window Lift
4	Ignition Coils - V8 only
5	Daylight Running Lamps - if fitted
6	Daylight Running Lamps - if fitted

Passenger Compartment Fuse Box Fuses

Fuse		System
1	25A	Central door locking
2	10A	Fuel flap release
3	10A	LH headlight main beam
4	10A	Rear fog guard lights
5	15A	Daytime running lights (if fitted)
6	25A	Rear air conditioning blower
7	30A	Heater blower front
8	30A	Heated rear window, heated mirrors
9	10A	LH headlight dipped beam
10	10A	RH headlight dipped beam
11	10A	LH side & tail lights, number plate light, interior illumination
12	30A	Sunroof
13	30A	Rear windows
14	20A	Ignition coils
15	20A	Cigar lighter, interior lights, seat heaters, vanity mirror illumination
16	15A	Clock, radio
17	15A	Radio amplifier, speakers
18	15A	Rear wiper motor
19	15A	Front wipers/washers
20	15A	Interior lights, clock/radio memory, engine remobilization
21	15A	Transfer box
22	10A	RH headlight main beam
23	10A	Starter motor
24	10A	Alternator, auto transmission
25	25A	Brake, reverse lights
26	10A	Auxiliary circuits
27	10A	Instruments, hill descent control
28	10A	Self leveling suspension, anti-lock braking
29	10A	Active cornering enhancement (ACE)
30	20A	Cruise control, electric mirrors, rear washer
31	10A	Air conditioning blower
32	25A	Accessory socket
33	10A	RH side & tail lights, radio, trailer socket, interior illumination
34	30A	Front windows
35	10A	Airbag SRS - DO NOT REMOVE
