86.53.20 Display unit: Remove

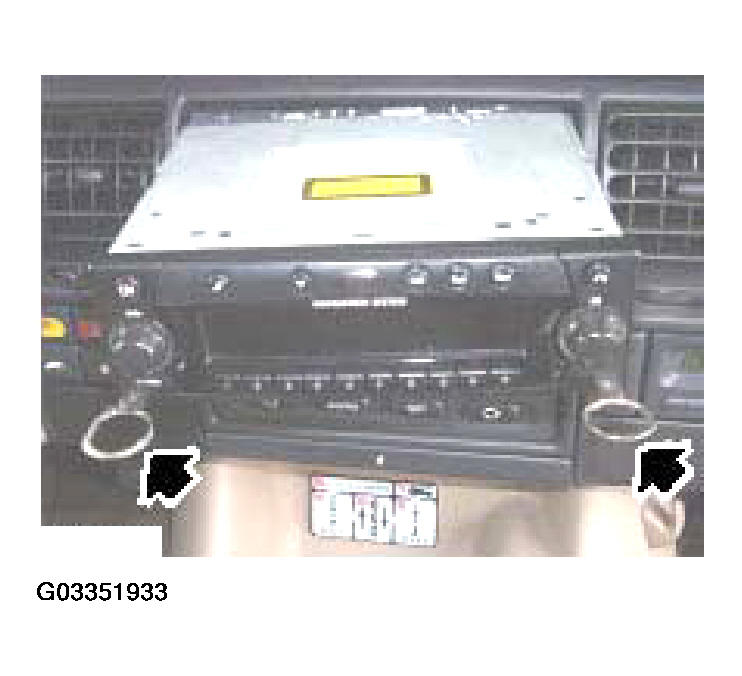

Fig 1: Fitting Tool LRT-86 - 009 Into Slots Ensuring Correct Handed Key Is In Correct Slot

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fit tool LRT-86-009 into slots ensuring correct handed key is in correct slot.
The tools are stamped either 'TOP L' or 'TOP R', ensure the stamping is facing upwards when removing the unit.
Pull display unit from fascia.

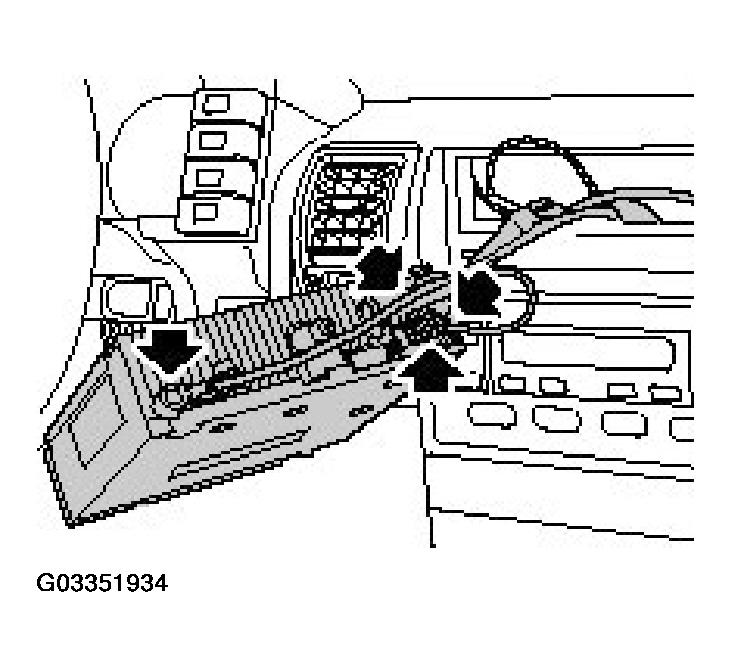

Fig 2: Disconnecting Multiplugs And Coax Cables From Display Unit And Removing Unit
Courtesy of LAND ROVER NORTH AMERICA, INC.
Disconnect 3 multiplugs and 2 coax cables from display unit and remove unit.
Push display unit retaining clips inwards and remove keys.
