Purge Canister Closure Valve Monitoring

For purge canister closure valve monitoring information see Fig 1 -Fig 3 .

NOTE: This monitor covers information for DTC P0446 and P1447.

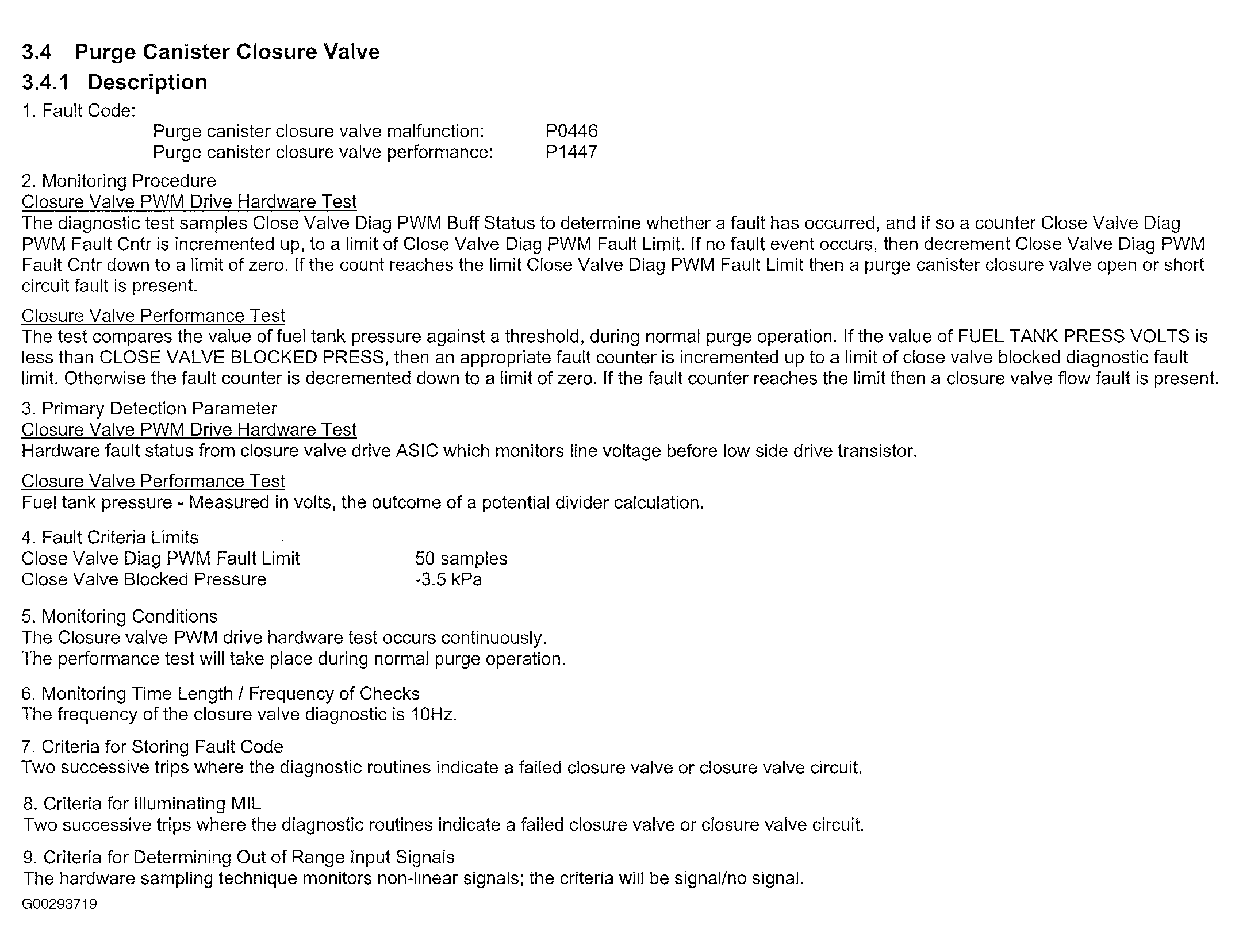

Fig 1: Purge Canister Closure Valve Monitoring Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

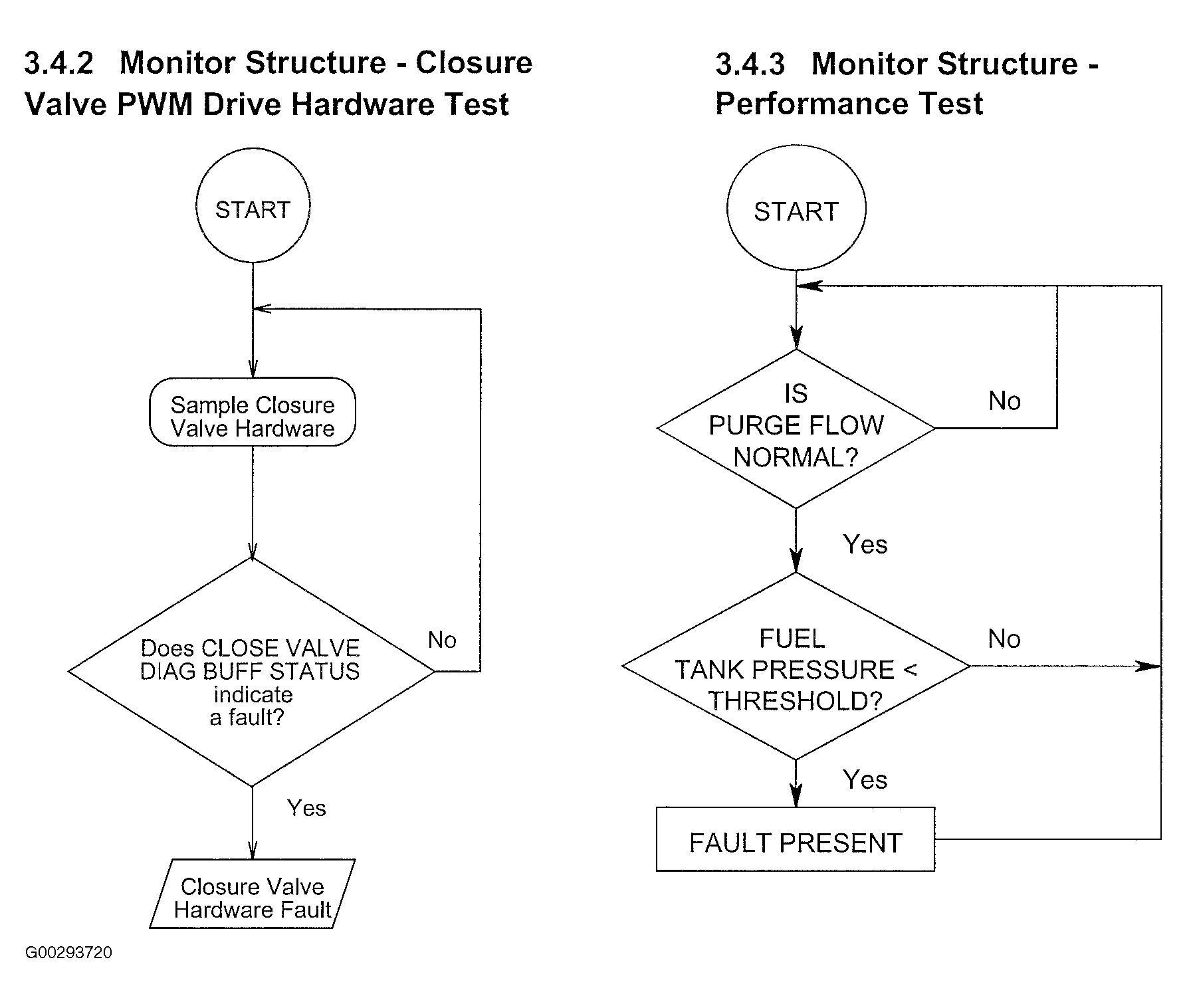

Fig 2: Purge Canister Closure Valve Monitoring Structure

Courtesy of LAND ROVER NORTH AMERICA, INC.

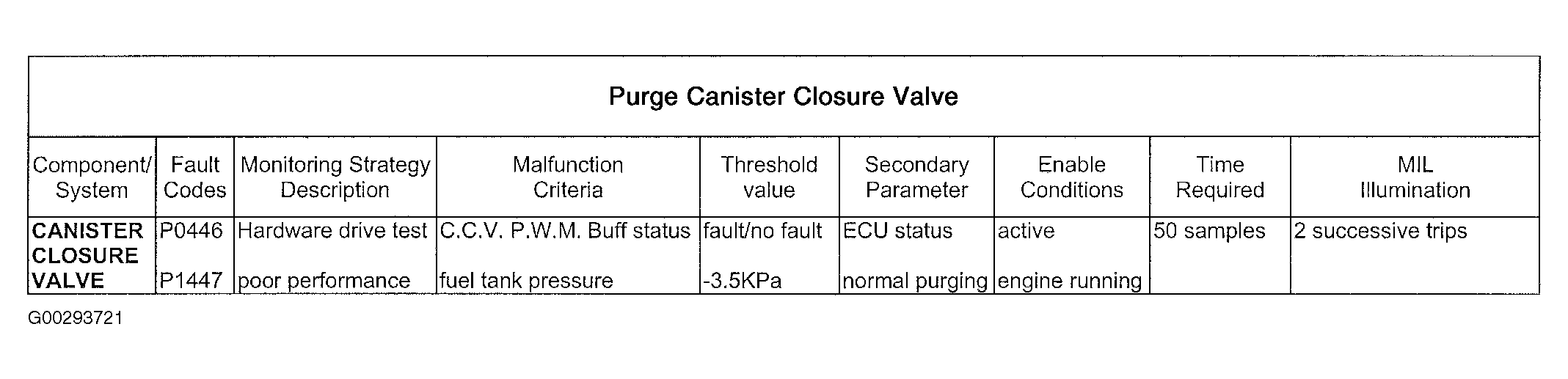

Fig 3: Purge Canister Closure Valve Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
