Engine Controls - Service & Adjustment Specifications
>>
Ignition System
>>
Firing Order
Firing Order

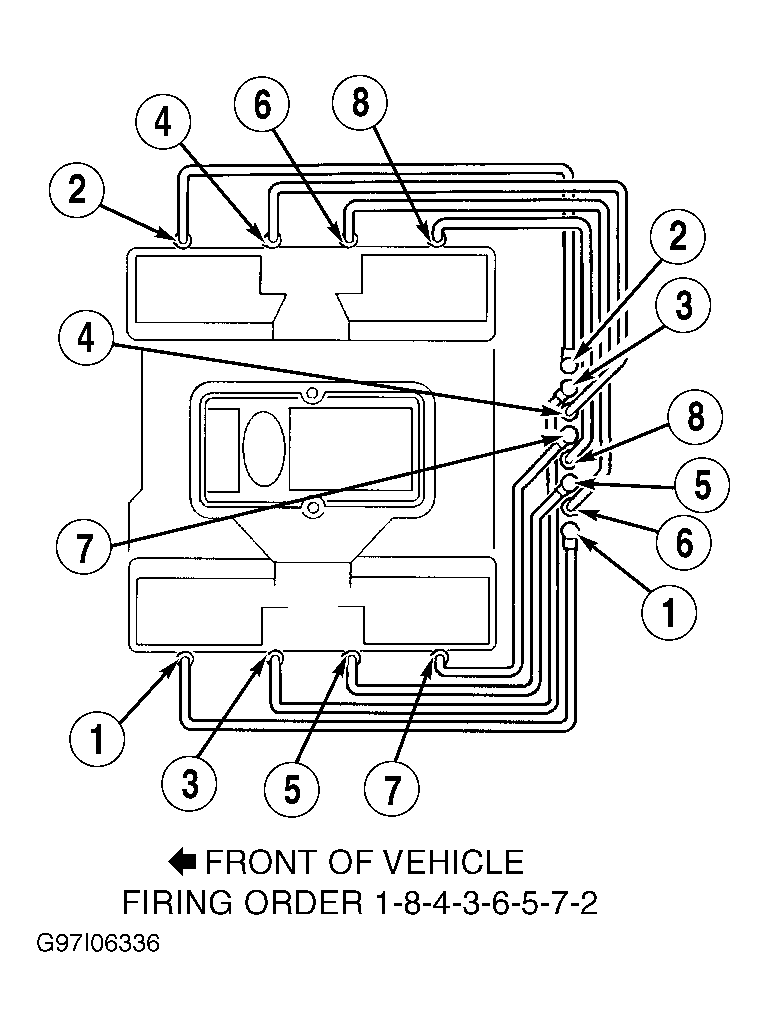

Fig 1: Firing Order & Coil Packs
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
