KICKDOWN Cable

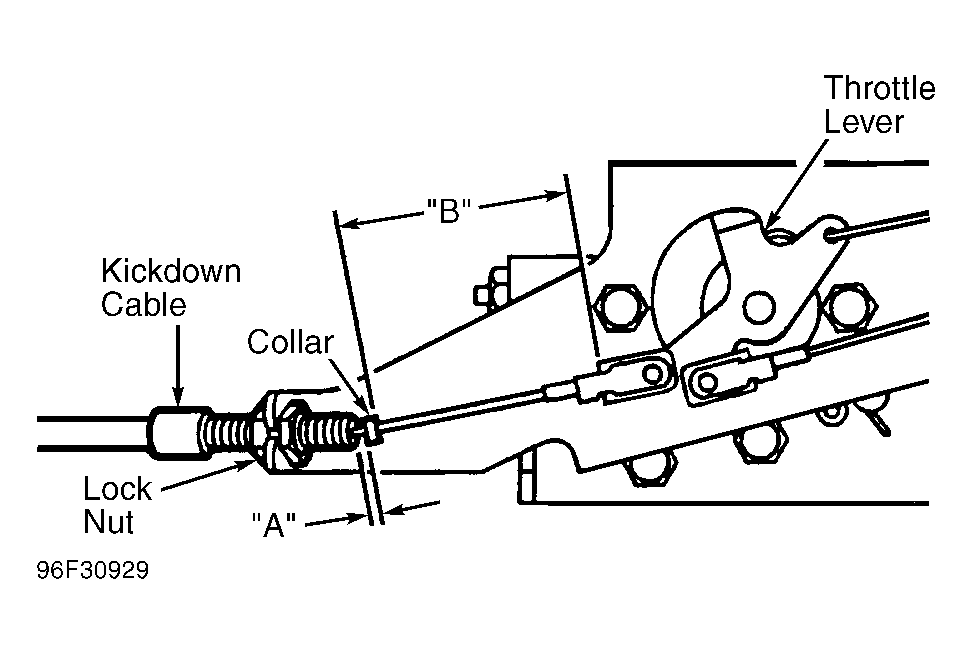

- Loosen kickdown cable lock nut. Ensure throttle valve is fully closed. Measure distance "A" between end of outer cable and crimped collar on inner cable. See Fig 1
. Distance should be .010-.050" (.25-1.25 mm). Adjust as necessary, tighten lock nut and recheck.
- If installing a new kickdown cable, and collar on inner cable is loose, measure distance "B" on old cable. See Fig 1
. Crimp collar on new cable to distance measured and perform step 1).
Courtesy of LAND ROVER NORTH AMERICA, INC.
