Wiring Diagrams

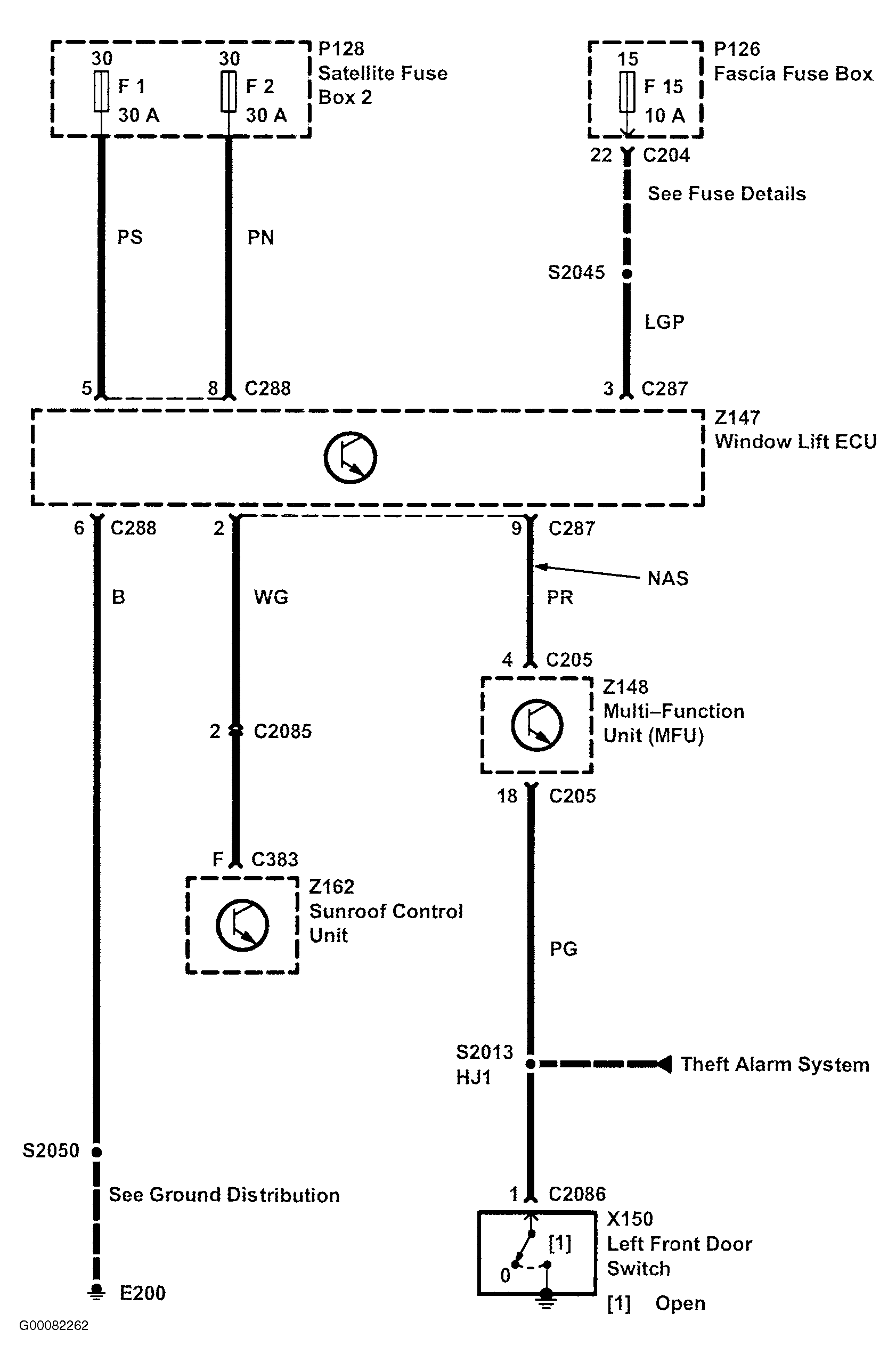

Fig 1: Power Window Wiring Diagram (1996 Discovery - 1 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

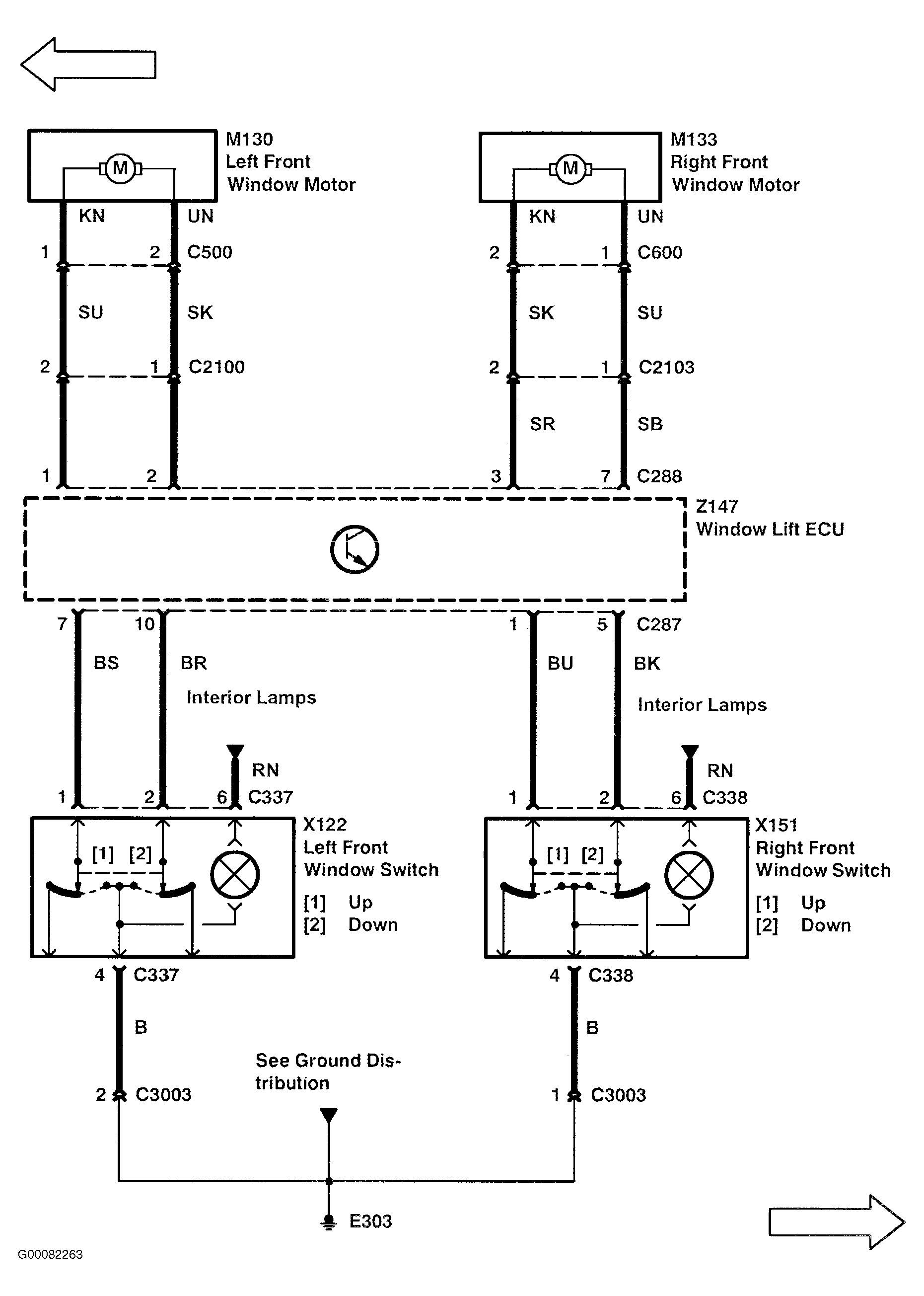

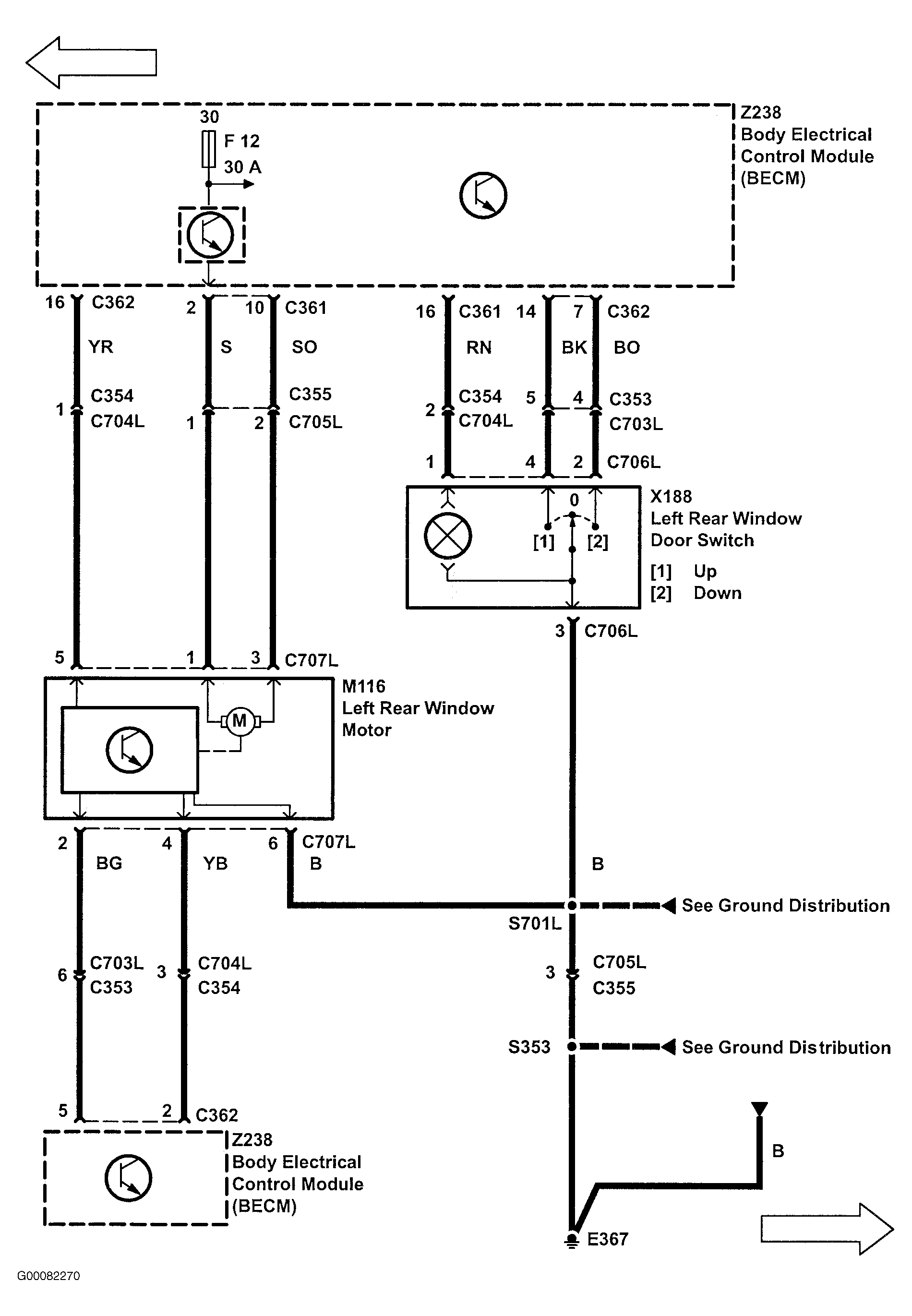

Fig 2: Power Window Wiring Diagram (1996 Discovery - 2 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

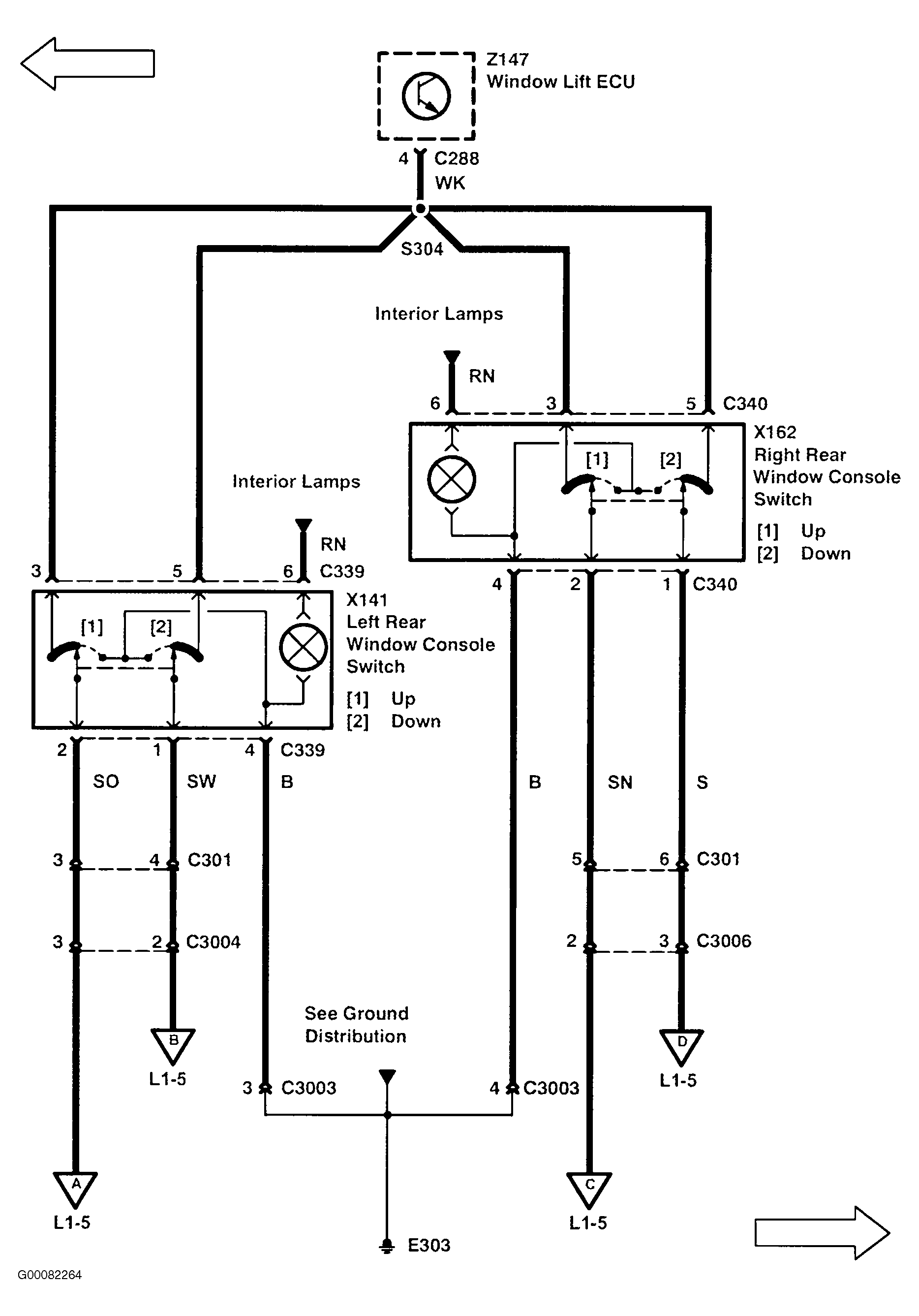

Fig 3: Power Window Wiring Diagram (1996 Discovery - 3 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

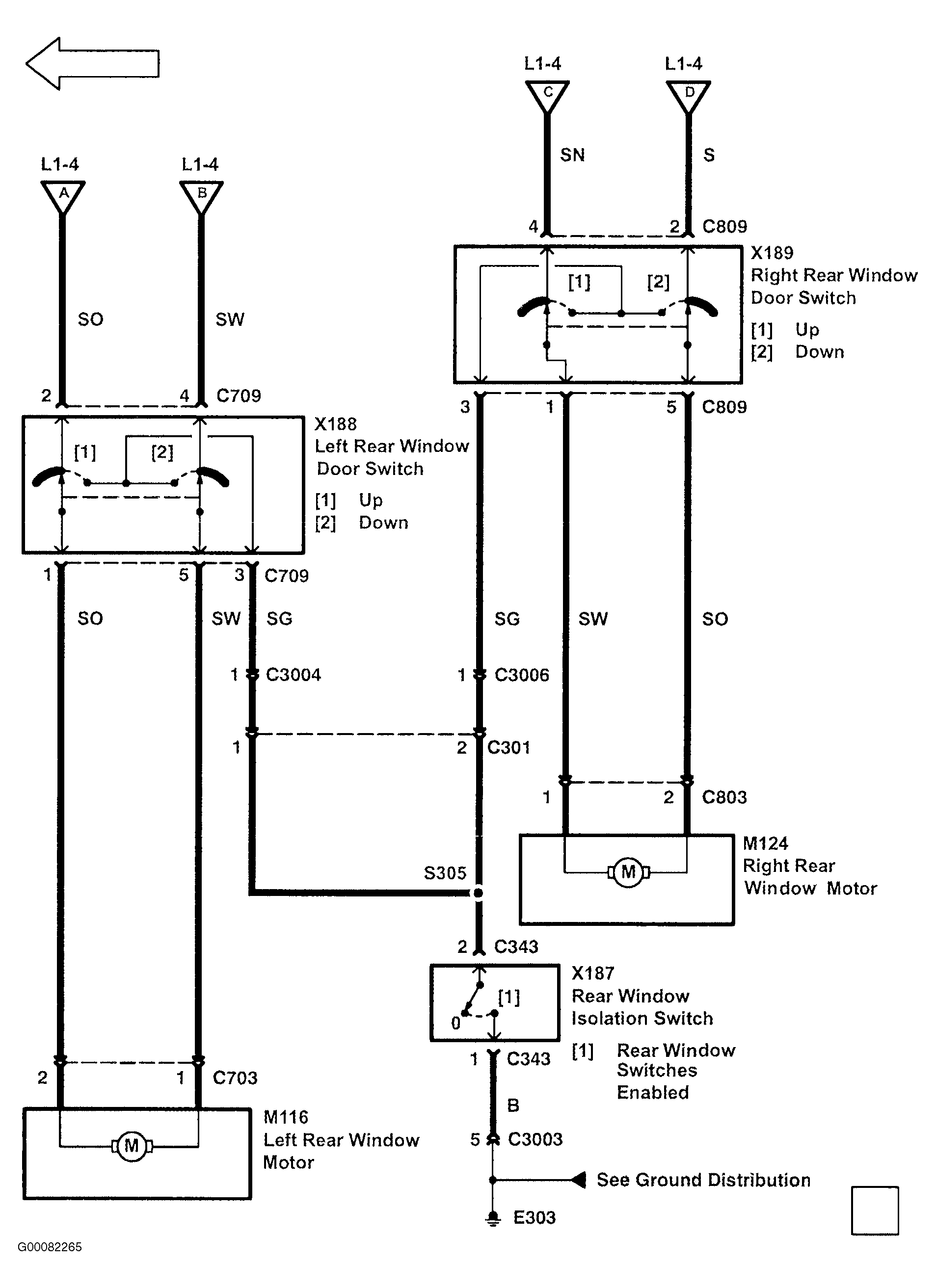

Fig 4: Power Window Wiring Diagram (1996 Discovery - 4 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

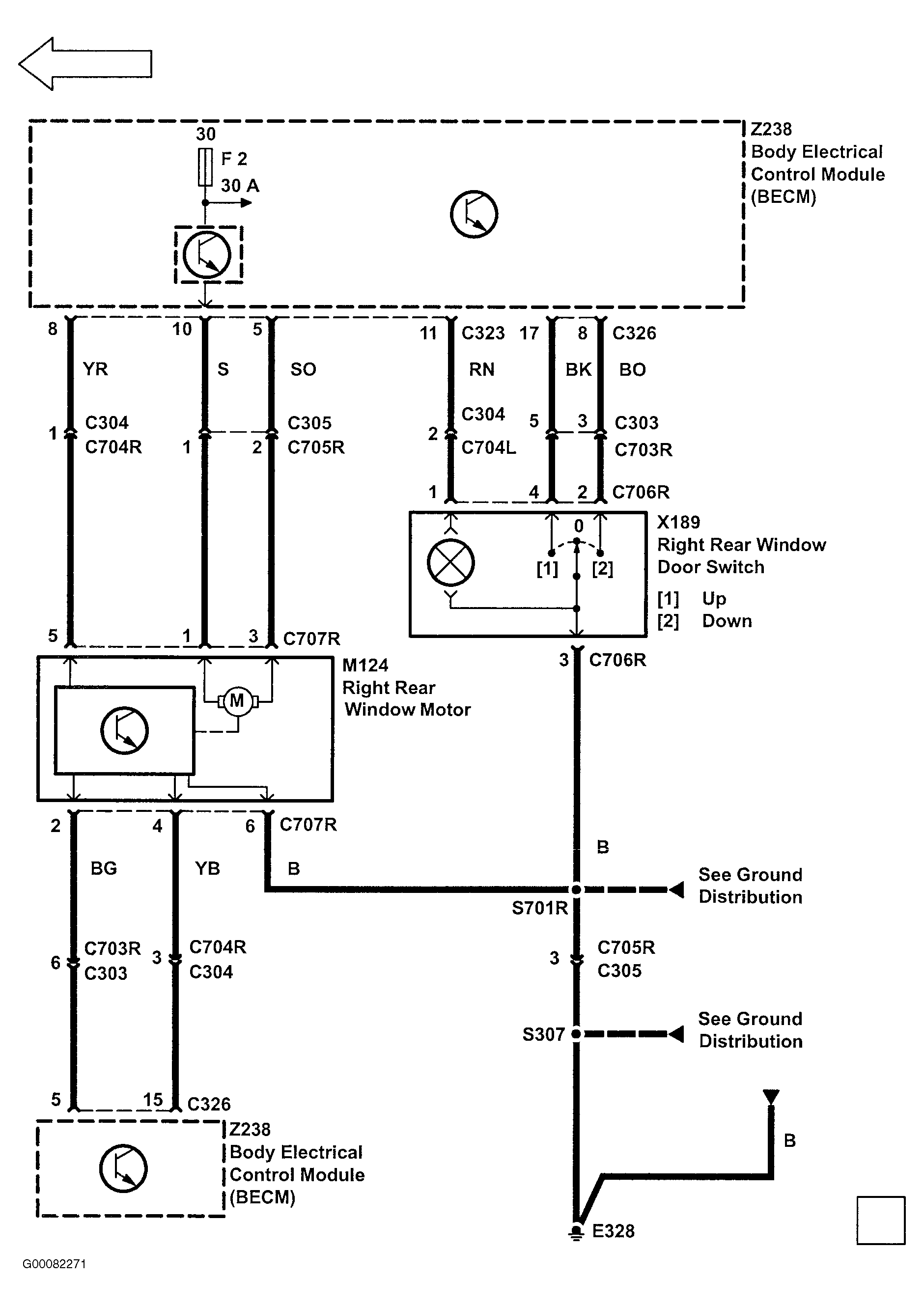

Fig 5: Power Window Wiring Diagram (1996 Range Rover - 1 Of 6)

Courtesy of LAND ROVER NORTH AMERICA, INC.

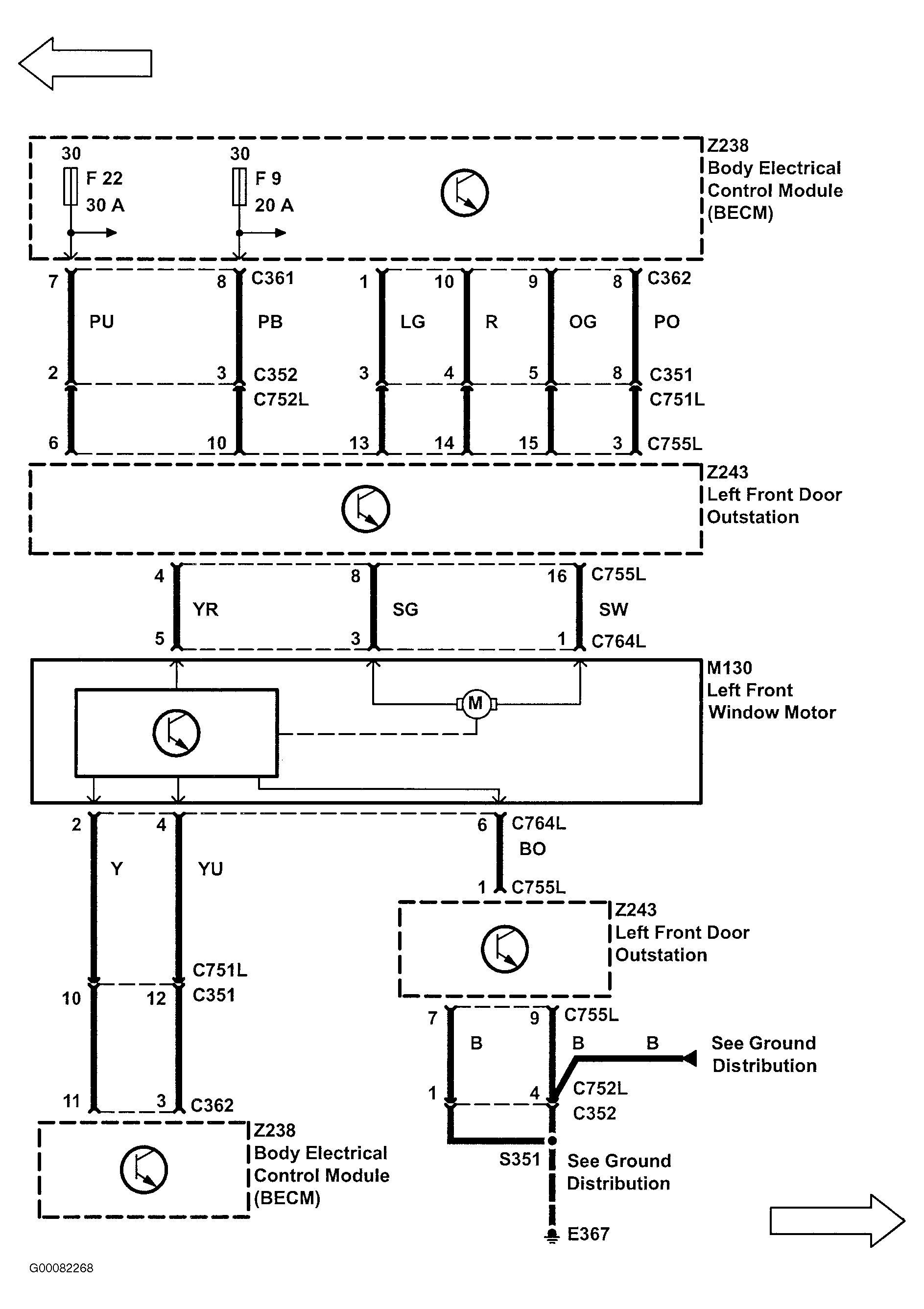

Fig 6: Power Window Wiring Diagram (1996 Range Rover - 2 Of 6)

Courtesy of LAND ROVER NORTH AMERICA, INC.

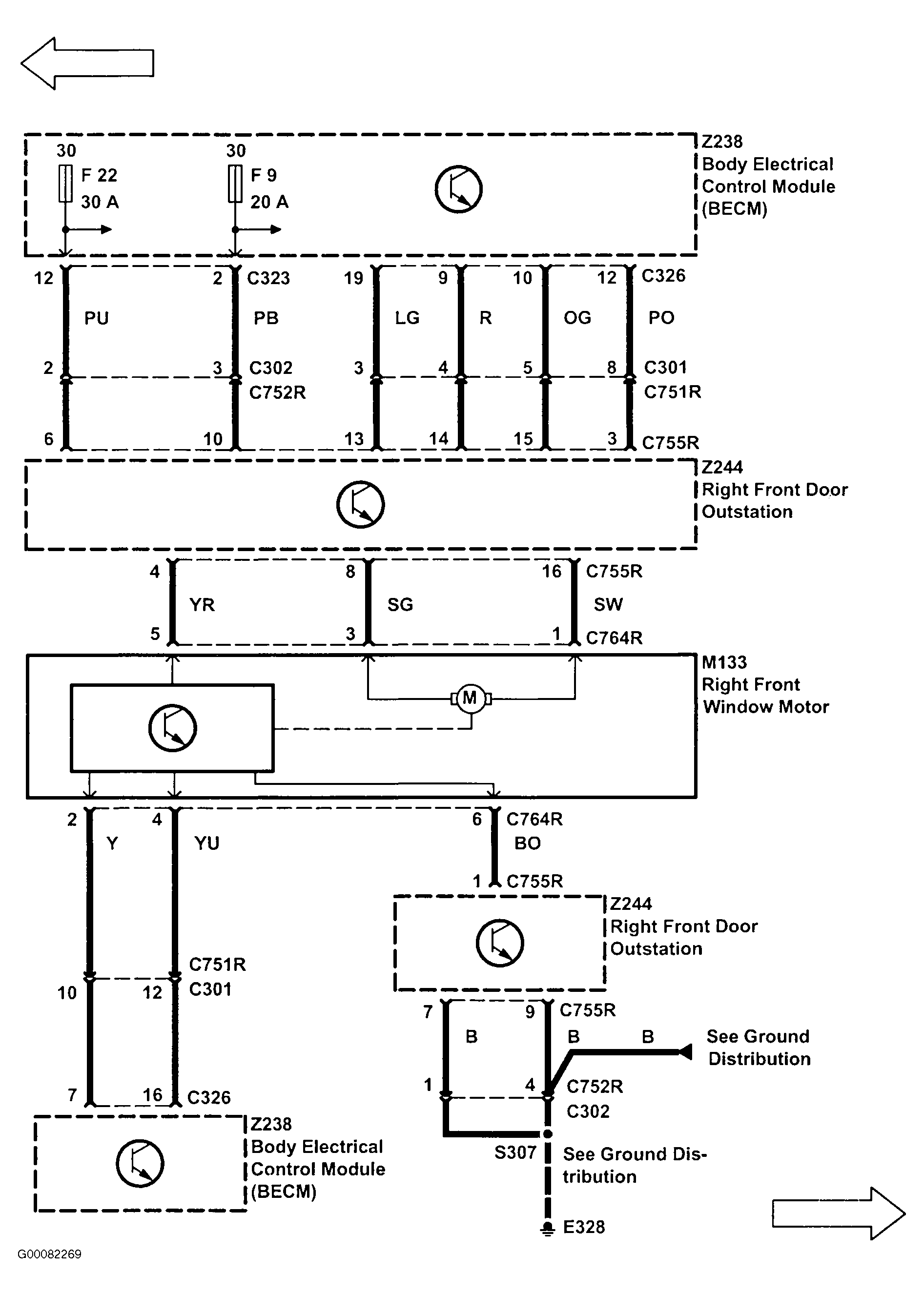

Fig 7: Power Window Wiring Diagram (1996 Range Rover - 3 Of 6)

Courtesy of LAND ROVER NORTH AMERICA, INC.

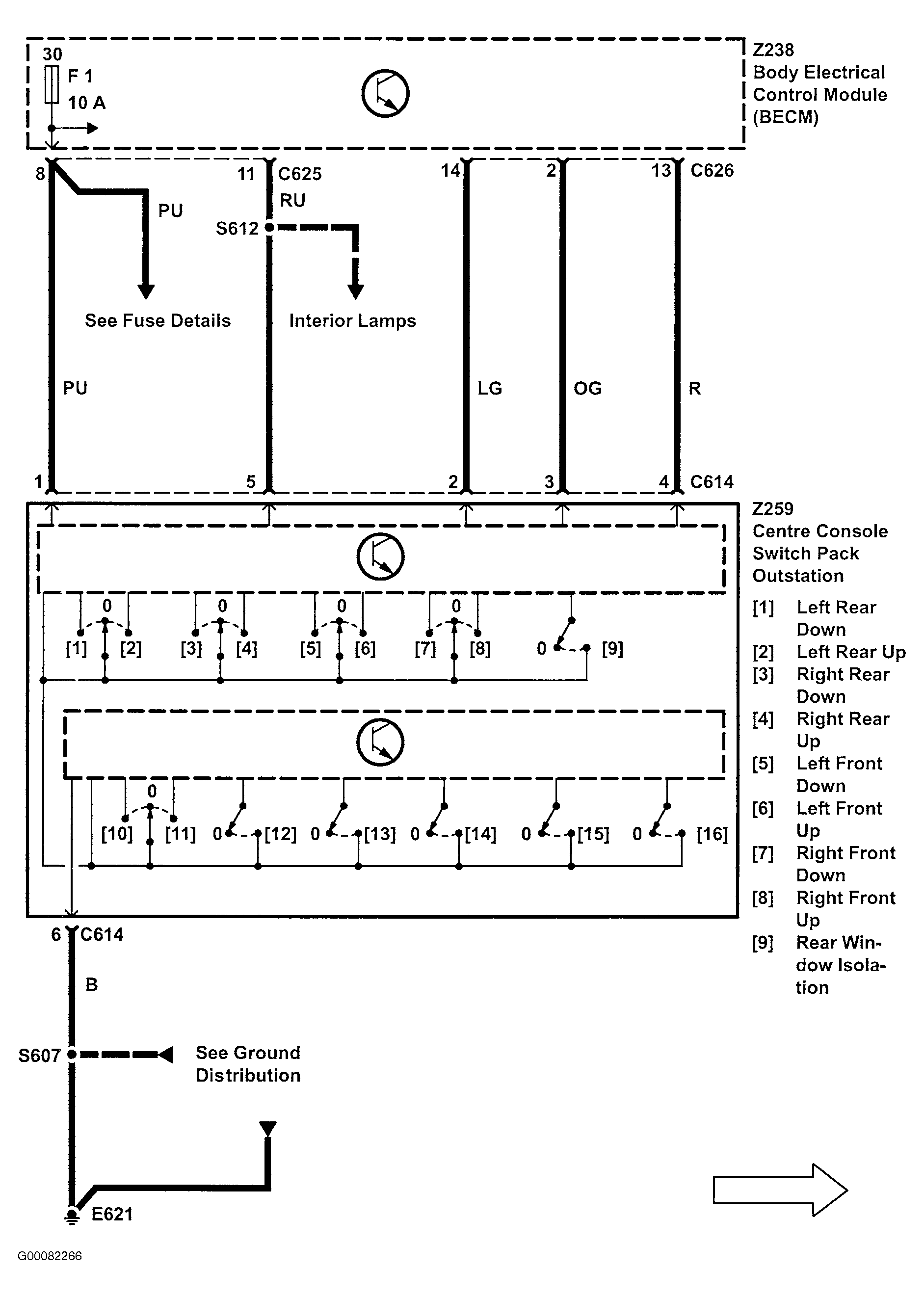

Fig 8: Power Window Wiring Diagram (1996 Range Rover - 4 Of 6)

Courtesy of LAND ROVER NORTH AMERICA, INC.

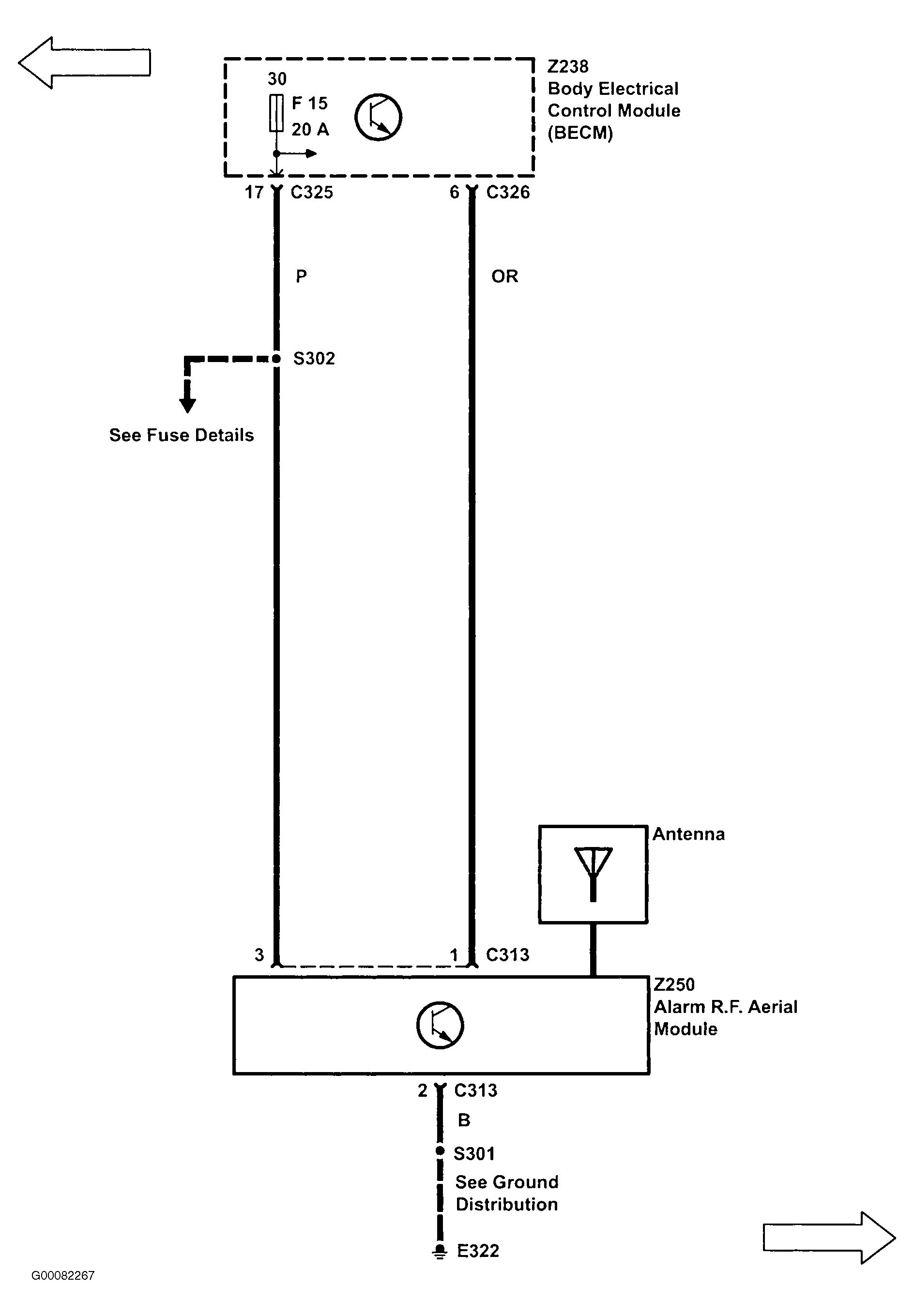

Fig 9: Power Window Wiring Diagram (1996 Range Rover - 5 Of 6)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 10: Power Window Wiring Diagram (1996 Range Rover - 6 Of 6)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 11: Power Window Wiring Diagram (1997-98 Discovery)

Fig 12: Power Window Wiring Diagram (1997-98 Range Rover)
