Cruise Control Actuator Link
NOTE:
Setting procedure is carried out at minimum throttle condition only.
- Ensure ignition is switched OFF.

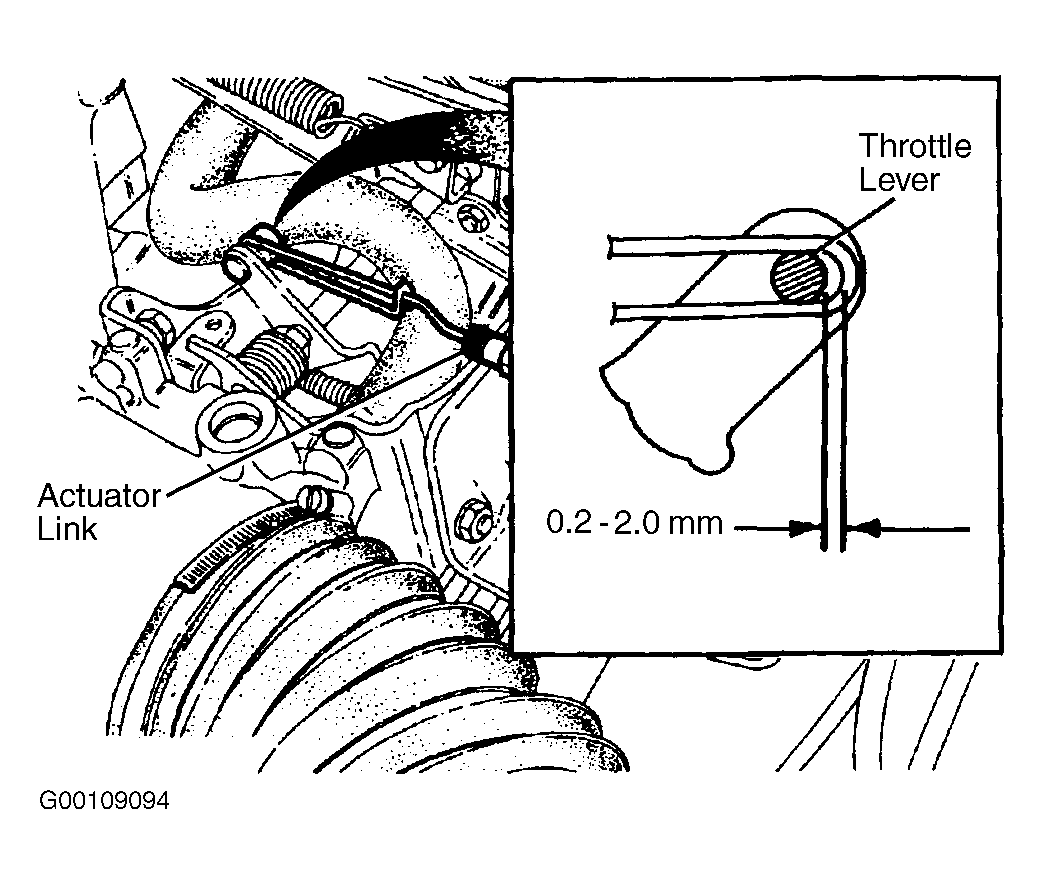

- Check clearance between inside edge of cruise control actuator link and recessed diameter of throttle lever. Clearance should be 0.008-.079" (0.20-2.00 mm). See Fig 1 .
- Remove link from actuator. See Fig 1 . Rotate socket joint adjuster as necessary.
- Refit link to actuator and recheck clearance between link and lever.

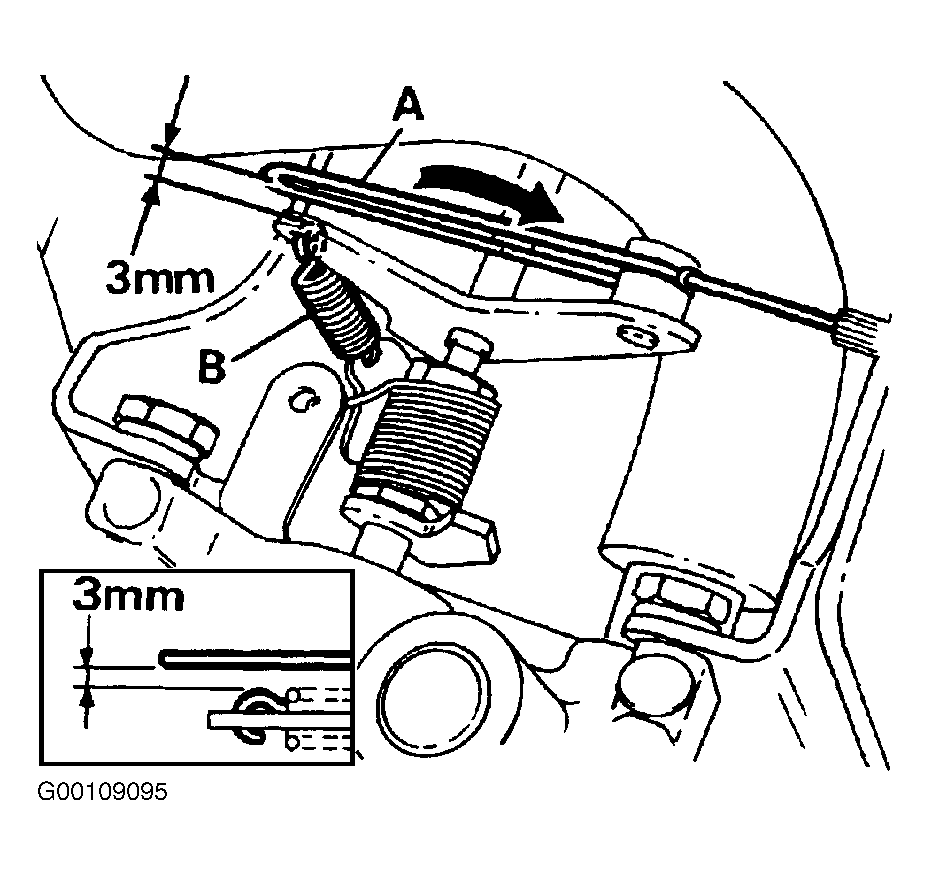

- With throttle fully open, check a gap of at least 0.1" (3 mm) exists between side of link ("A" in illustration) and side of small spring ("B" in illustration). See Fig 2 . Realign link by bending to achieve correct gap. Recheck clearance at closed throttle/open throttle. Check link slides smoothly in groove of throttle lever.
