Test D: Manual & Memory Seat Functions Inoperative (Fuses Okay) Or System Does Not Retain Memory Seat Or Mirror Positions

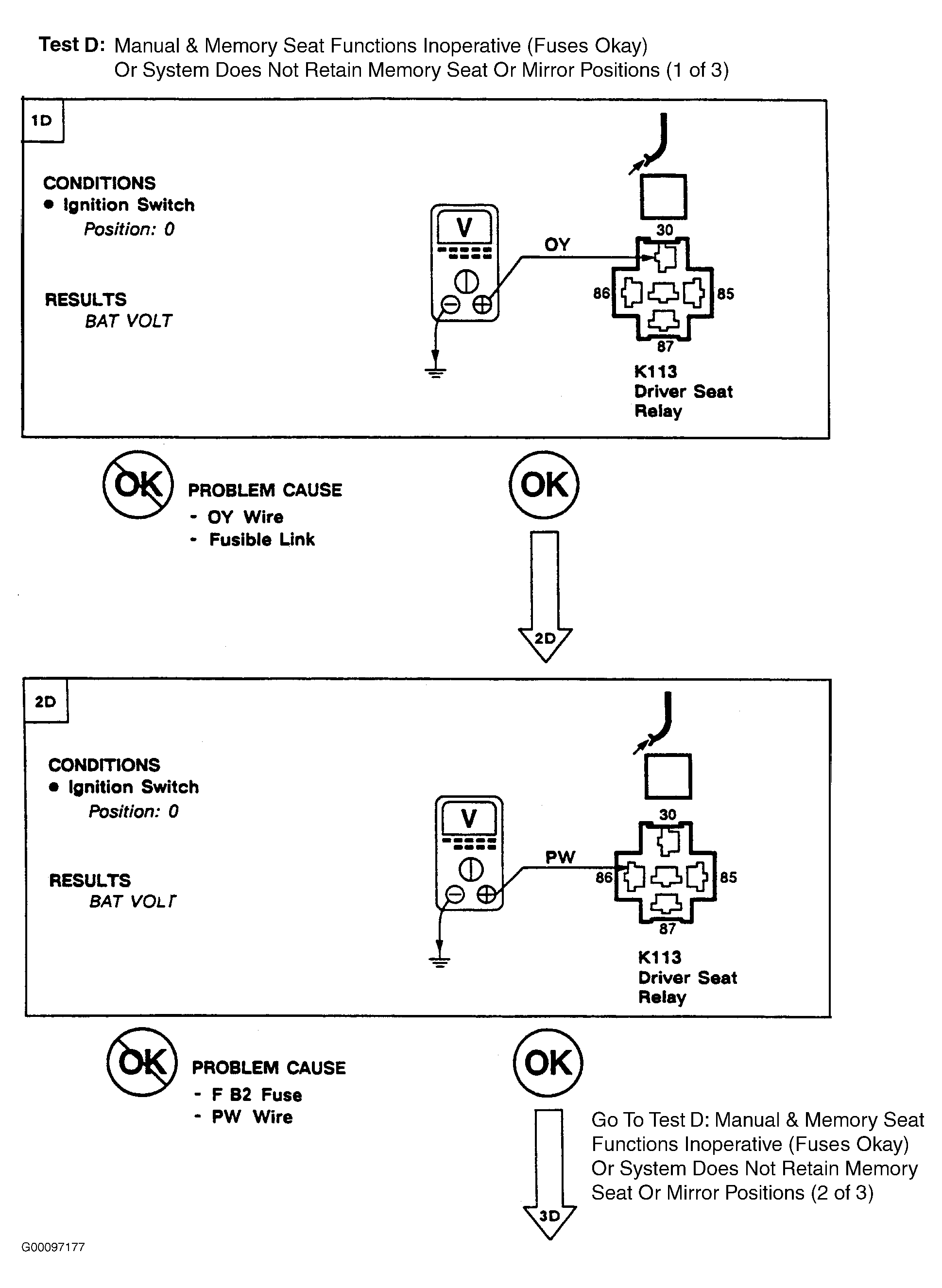

Fig 1: Test D: Manual & Memory Seat Functions Inoperative Flow Chart (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

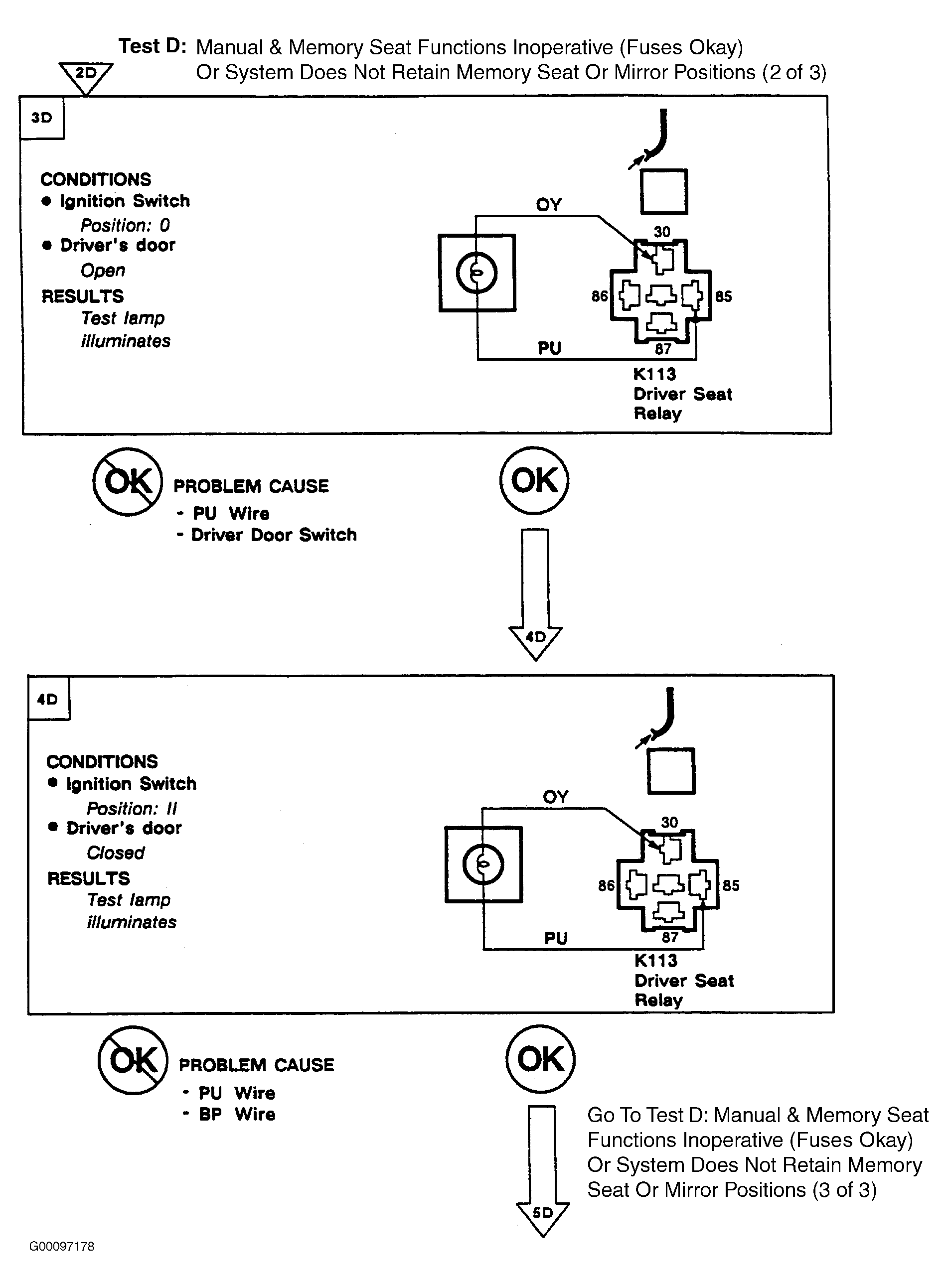

Fig 2: Test D: Manual & Memory Seat Functions Inoperative Flow Chart (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

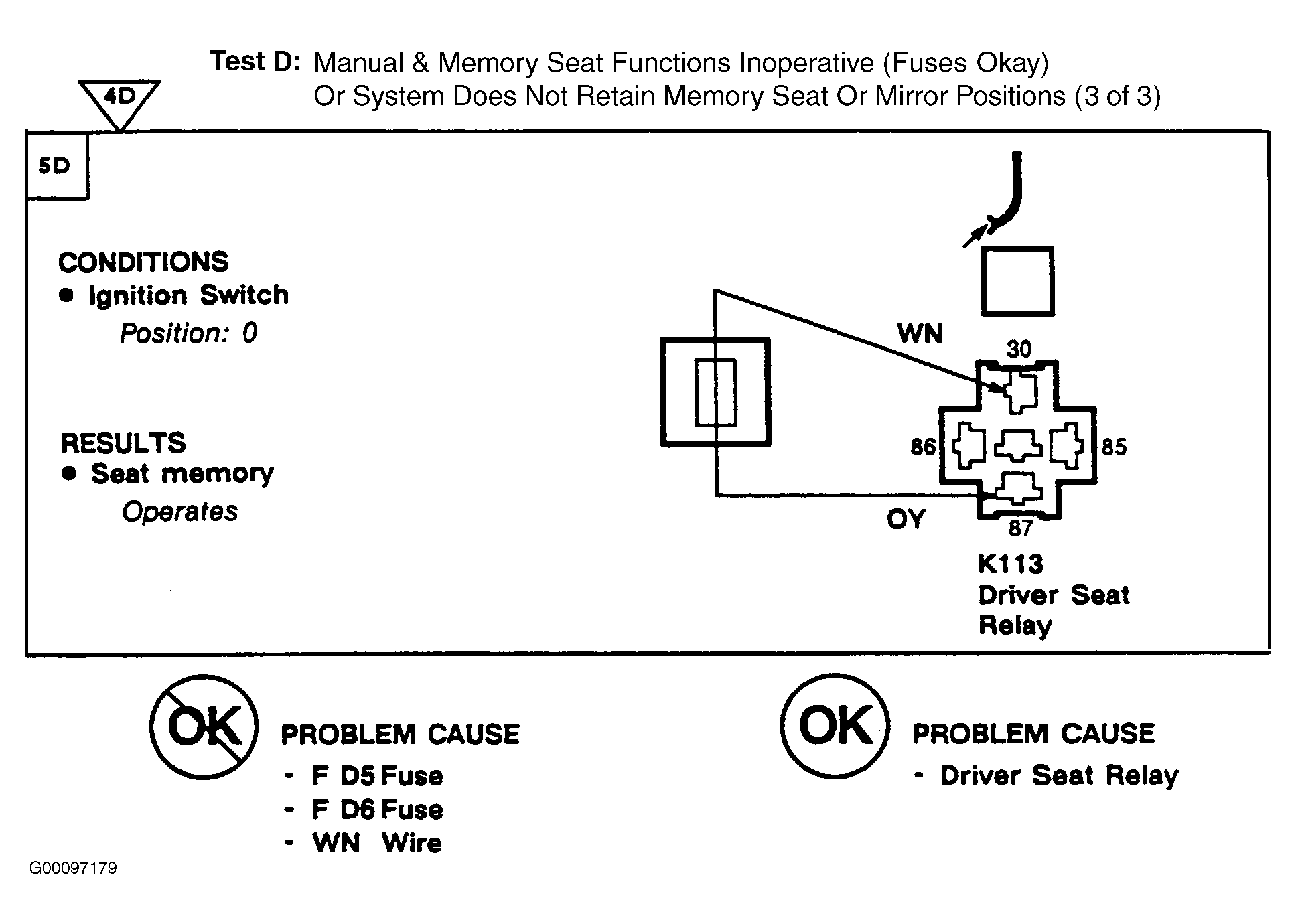

Fig 3: Test D: Manual & Memory Seat Functions Inoperative Flow Chart (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
