Test C: Memory Seat System Does Not Operate When Ignition Is In Position II & Handbrake Is Applied (Automatic Transmission)

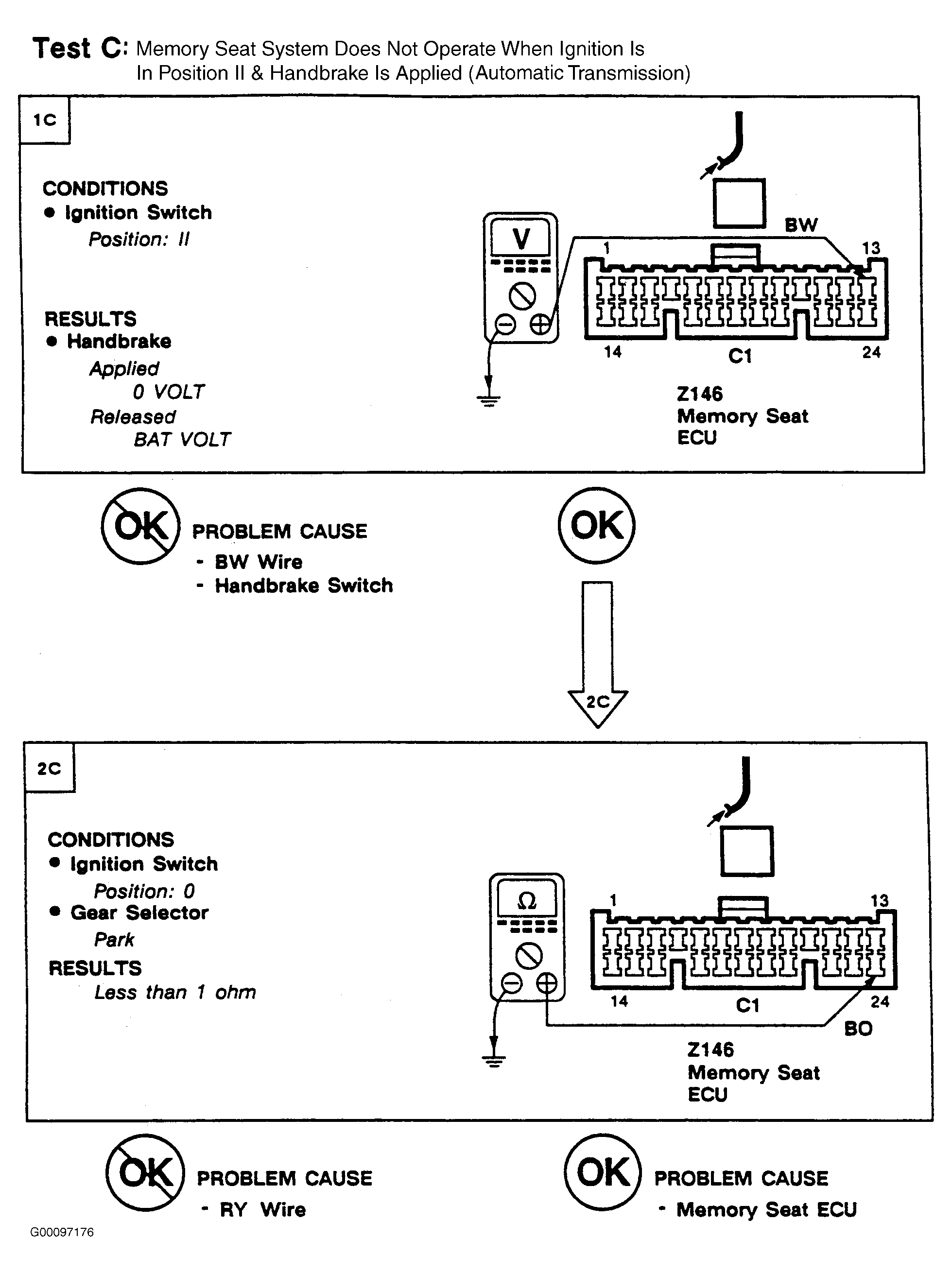

Fig 1: Test C: Memory Seat System Does Not Operate When Ignition Is In Position II Flow Chart (Automatic Transmission)
G00097176Courtesy of LAND ROVER NORTH AMERICA, INC.
